China Electronics Technology Group Corporation
No.26 Research Institute
70MHz IF SAW Filter
3MHz Bandwidth
Part Number: LBS70A41
www.sipatsaw.com
SIPAT Co., Ltd.
Specifications
Parameter
Center Frequency
Insertion Loss
1 dB Bandwidth
3 dB Bandwidth
30 dB Bandwidth
40 dB Bandwidth
Passband Variation
Absolute Delay
Group Delay Variation(f0鹵1.2MHz)
Ultimate Rejection
Material Temperature coefficient
Ambient Temperature

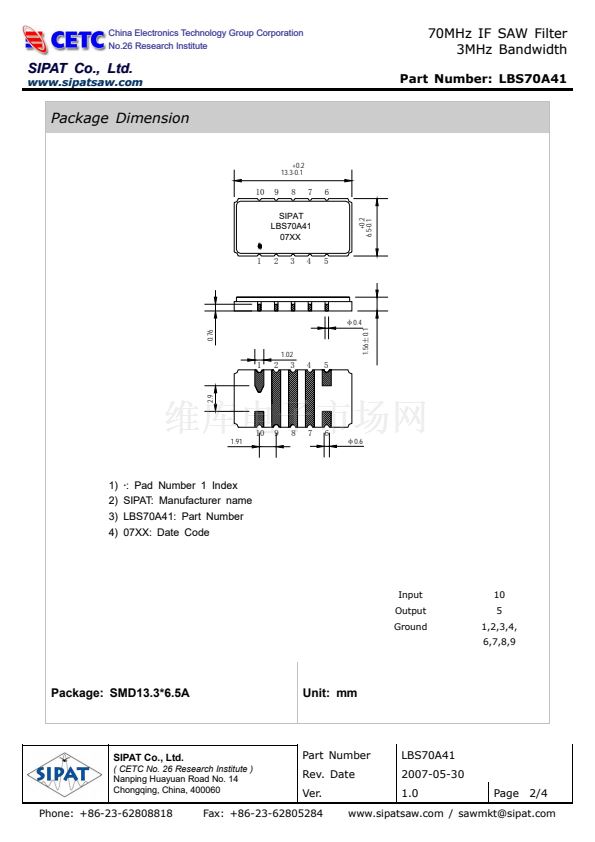

Package Size
Unit
MHz
dB
MHz
MHz
MHz
MHz
dB
usec
Minimum
69.8
-
1.9
2.7
-
-
-
-
-
40
Typical
70
25
1.94
2.77
5.37
5.75
0.1
1.27
25
48
0.07
25
SMD13.3*6.5A
Maximum
70.2
26.5
-
-
6
-
0.8
-
100
-
nsec
dB
KHz/擄C
擄C
Notes:
1. All specifications are based on the test circuit shown
2. In production, devices will be tested at room temperature to a guardbanded specification to ensure
electrical compliance over temperature
3. Electrical margin has been built into the design to account for the variations due to temperature drift
and manufacturing tolerances
4. This is the optimum impedance in order to achieve the performance show
Matching Configuration
INPUT
50
惟
C1
L1
L1=910nH L2=820nH
L2
OUTPUT
50
惟
C2
Notes - Component values may change depending
on board layout.
C1=27pF
C2=15pF
Source/Load Impedance=50 ohm
SIPAT Co., Ltd.
( CETC No. 26 Research Institute )
Nanping Huayuan Road No. 14
Chongqing, China, 400060
Part Number
Rev. Date
Ver.
LBS70A41
2007-05-30
1.0
Page
1/4
Phone: +86-23-62808818
Fax: +86-23-62805284
www.sipatsaw.com / sawmkt@sipat.com
