China Electronics Technology Group Corporation
No.26 Research Institute
200MHz SAW Filter
61MHz Bandwidth
Part Number: LBN20002
www.sipatsaw.com
SIPAT Co., Ltd.
Specifications
Parameter
Center Frequency
Insertion Loss
1 dB Bandwidth
3 dB Bandwidth
40 dB Bandwidth
45 dB Bandwidth
50 dB Bandwidth
Passband Variation
Absolute Delay
Ultimate Rejection(f0鹵45MHz)
Material Temperature coefficient
Ambient Temperature
Package Size
Unit
MHz
dB
MHz
MHz
MHz
MHz
MHz
dB
usec
Minimum
199.5
-
60.9
-
-
-
-
-
-
48
Typical
200
22
60.96
62.84
69.31
69.51
69.72
0.9
0.97
51
-16.4
25
Maximum
200.5
30
-
-
-
-
71
1.5
-
-
dB
KHz/擄C
擄C

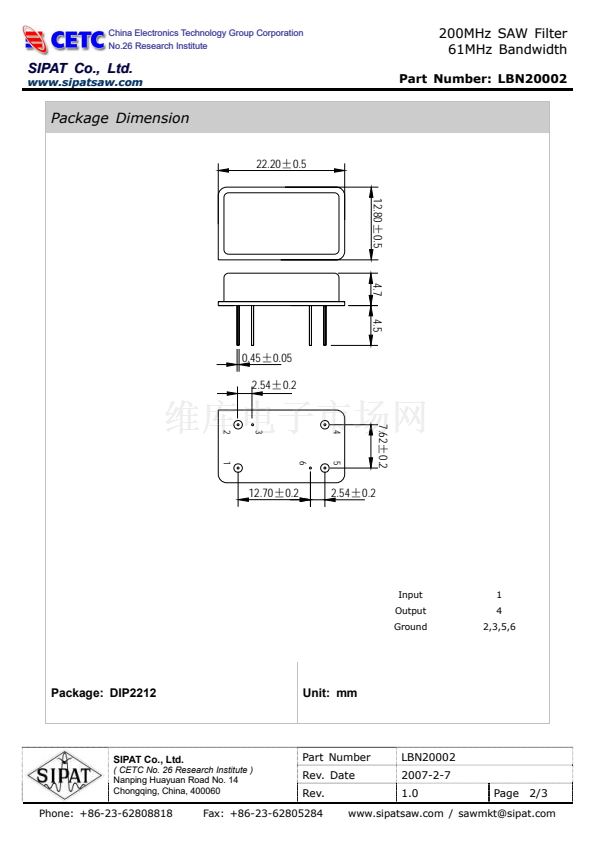

DIP2212 (22.2x12.8x4.7mm3)
Notes:
1. All specifications are based on the test circuit shown
2. In production, devices will be tested at room temperature to a guardbanded specification to ensure
electrical compliance over temperature
3. Electrical margin has been built into the design to account for the variations due to temperature drift
and manufacturing tolerances
4. This is the optimum impedance in order to achieve the performance show
Matching Configuration
INPUT
50
惟
L1
L2
L3
L1=47nH
OUTPUT
50
惟
L4
L2=27nH
L4=150nH
L3=18nH
Source/Load Impedance=50 ohm
Notes - Component values may change depending
on board layout.

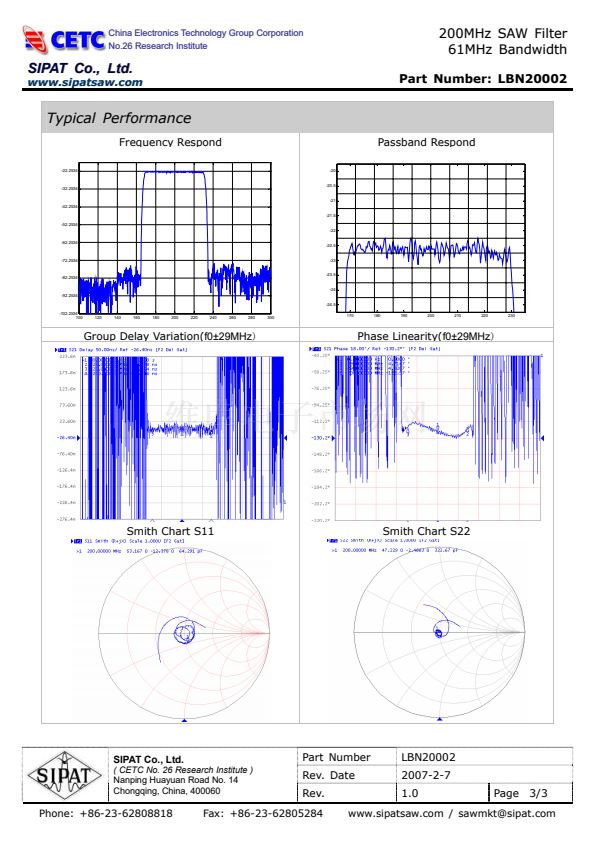

SIPAT Co., Ltd.
( CETC No. 26 Research Institute )
Nanping Huayuan Road No. 14
Chongqing, China, 400060
Part Number
Rev. Date
Rev.
LBN20002
2007-2-7
1.0
Page
1/3
Phone: +86-23-62808818
Fax: +86-23-62805284
www.sipatsaw.com / sawmkt@sipat.com
