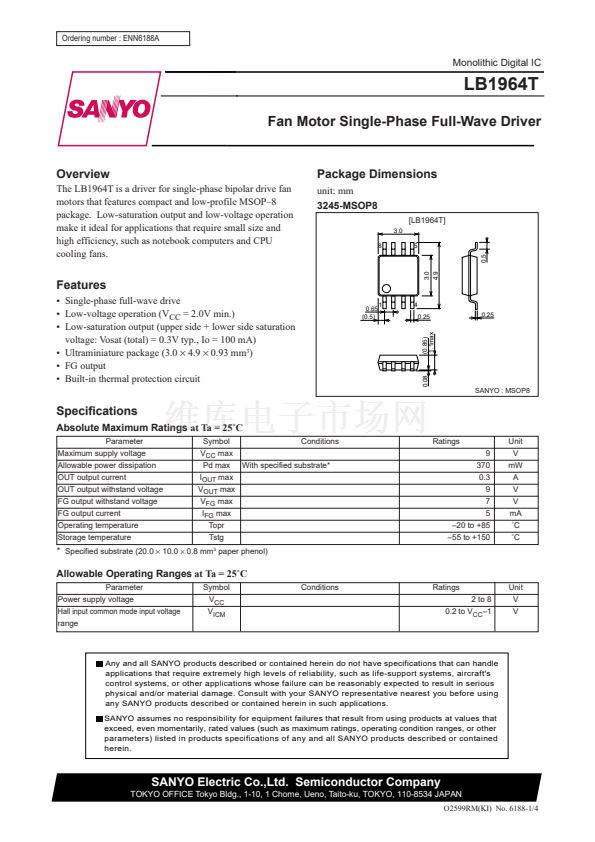

Ordering number : ENN6188A
LB1964T
Monolithic Digital IC
LB1964T
Fan Motor Single-Phase Full-Wave Driver
Overview
The LB1964T is a driver for single-phase bipolar drive fan
motors that features compact and low-profile MSOP鈥?
package. Low-saturation output and low-voltage operation
make it ideal for applications that require small size and
high efficiency, such as notebook computers and CPU
cooling fans.
Package Dimensions
unit: mm
3245-MSOP8
[LB1964T]
3.0
8
5
Features
鈥?Single-phase full-wave drive
鈥?Low-voltage operation (V
CC
= 2.0V min.)
鈥?Low-saturation output (upper side + lower side saturation
voltage: Vosat (total) = 0.3V typ., Io = 100 mA)
鈥?Ultraminiature package (3.0
脳
4.9
脳
0.93 mm
3
)
鈥?FG output
鈥?Built-in thermal protection circuit
0.65
(0.5)
1
4
0.25
0.25
0.08
(0.85)
1.1max
3.0
4.9
SANYO : MSOP8
Specifications
Absolute Maximum Ratings
at Ta = 25藲C
Parameter
Maximum supply voltage
Allowable power dissipation
OUT output current
OUT output withstand voltage
FG output withstand voltage
FG output current
Operating temperature
Storage temperature
Symbol
V
CC
max
Pd max
I
OUT
max
V
OUT
max
V
FG
max
I
FG
max
Topr
Tstg
Conditions
With specified substrate*
Ratings
9
370
0.3
9
7
5
鈥?0 to +85
鈥?5 to +150
Unit
V
mW
A
V
V
mA
藲C
藲C
*
Specified substrate (20.0
脳
10.0
脳
0.8 mm
3
paper phenol)
Allowable Operating Ranges
at Ta = 25藲C
Parameter
Power supply voltage
Hall input common mode input voltage
range
Symbol
V
CC
V
ICM
Conditions
Ratings
2 to 8
0.2 to V
CC
鈥?
Unit
V
V
Any and all SANYO products described or contained herein do not have specifications that can handle
applications that require extremely high levels of reliability, such as life-support systems, aircraft's
control systems, or other applications whose failure can be reasonably expected to result in serious
physical and/or material damage. Consult with your SANYO representative nearest you before using
any SANYO products described or contained herein in such applications.
SANYO assumes no responsibility for equipment failures that result from using products at values that
exceed, even momentarily, rated values (such as maximum ratings, operating condition ranges, or other
parameters) listed in products specifications of any and all SANYO products described or contained
herein.
SANYO Electric Co.,Ltd. Semiconductor Company
TOKYO OFFICE Tokyo Bldg., 1-10, 1 Chome, Ueno, Taito-ku, TOKYO, 110-8534 JAPAN
O2599RM(KI) No. 6188-1/4
