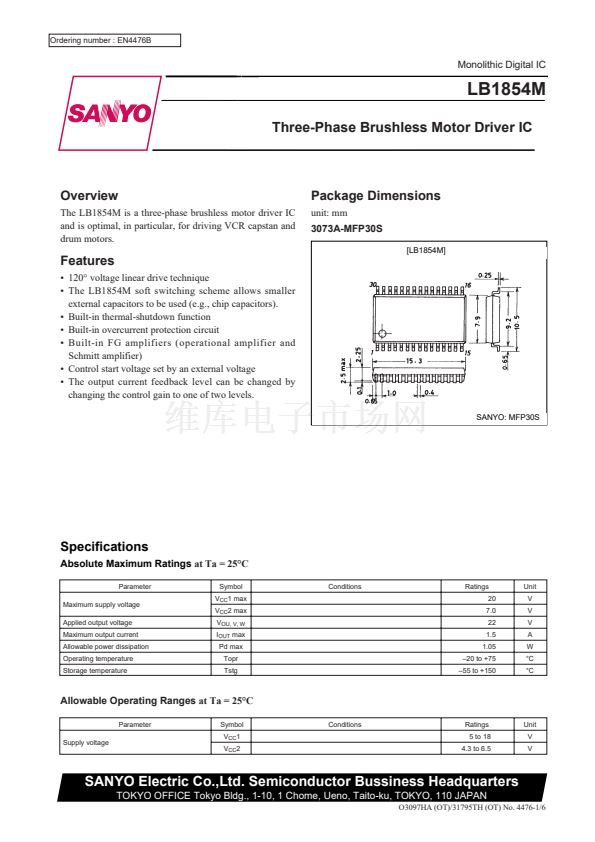

Ordering number : EN4476B

Monolithic Digital IC

LB1854M

Three-Phase Brushless Motor Driver IC

Overview

The LB1854M is a three-phase brushless motor driver IC

and is optimal, in particular, for driving VCR capstan and

drum motors.

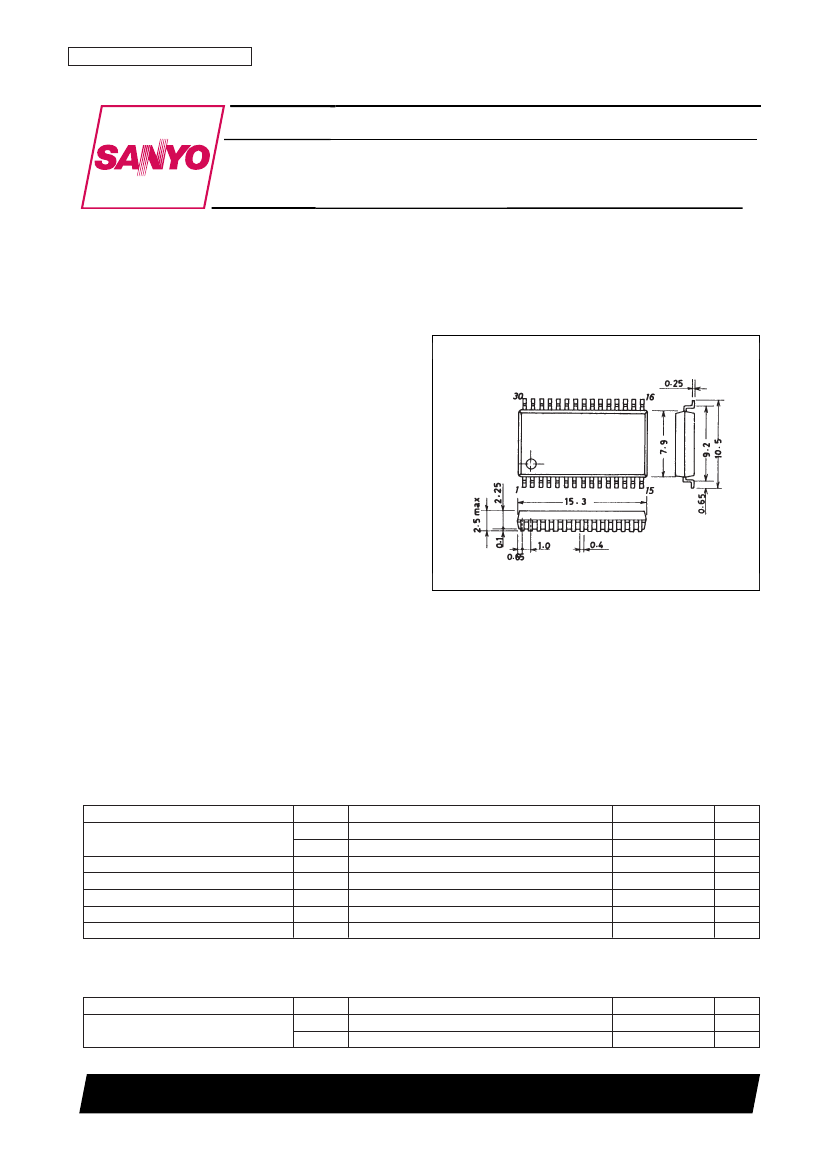

Package Dimensions

unit: mm

3073A-MFP30S

[LB1854M]

Features

鈥?120擄 voltage linear drive technique

鈥?The LB1854M soft switching scheme allows smaller

external capacitors to be used (e.g., chip capacitors).

鈥?Built-in thermal-shutdown function

鈥?Built-in overcurrent protection circuit

鈥?Built-in FG amplifiers (operational amplifier and

Schmitt amplifier)

鈥?Control start voltage set by an external voltage

鈥?The output current feedback level can be changed by

changing the control gain to one of two levels.

SANYO: MFP30S

Specifications

Absolute Maximum Ratings

at Ta = 25擄C

Parameter

Maximum supply voltage

Applied output voltage

Maximum output current

Allowable power dissipation

Operating temperature

Storage temperature

Symbol

V

CC

1 max

V

CC

2 max

V

OU, V, W

I

OUT

max

Pd max

Topr

Tstg

Conditions

Ratings

20

7.0

22

1.5

1.05

鈥?0 to +75

鈥?5 to +150

Unit

V

V

V

A

W

擄C

擄C

Allowable Operating Ranges

at Ta = 25擄C

Parameter

Supply voltage

Symbol

V

CC

1

V

CC

2

Conditions

Ratings

5 to 18

4.3 to 6.5

Unit

V

V

SANYO Electric Co.,Ltd. Semiconductor Bussiness Headquarters

TOKYO OFFICE Tokyo Bldg., 1-10, 1 Chome, Ueno, Taito-ku, TOKYO, 110 JAPAN

O3097HA (OT)/31795TH (OT) No. 4476-1/6
