3.3, 5, 12, 15, 24, and 48VDC Input Voltages Available
DESCRIPTION
When your application demands low power, minimal board space, and a high level of input/output isolation is
necessary, the LANEH2 miniature converters offer superior solutions at an economical price. Users have a multitude
of options and operational ratings to choose from in custom-tailoring the converter to application demands.
Populating a scant 0.179 square inches of board space, the LANEH2 provides two watts of power while maintaining
specifications over the entire commercial operating temperature range.
SPECIFICATIONS:
LANEH2 Series
All specifications apply @ 鹵25擄C ambient unless otherwise noted
INPUT SPECIFICATIONS
Input Voltage Range .......3.3V nom. input .......... 3.14 鈥?3.47 VDC
5V nom. input .............. 4.75 鈥?5.25VDC
12V nom. input ............. 11.4鈥?12.6VDC
15V nom. Input ........ 14.25 鈥?15.75VDC
24V nom. input ........... 22.8 鈥?25.2 VDC
48V nom. input ........... 45.6 鈥?50.4 VDC
GENERAL SPECIFICATIONS
Switching Frequency ............................................. 100KHz typical
Efficiency .....................................................................75% typical
Isolation Voltage (input to output) ..............3000VDC (2sec/0.5mA)
Isolation Resistance.................................. 1000M鈩?min. (500VDC)
OUTPUT SPECIFICATIONS

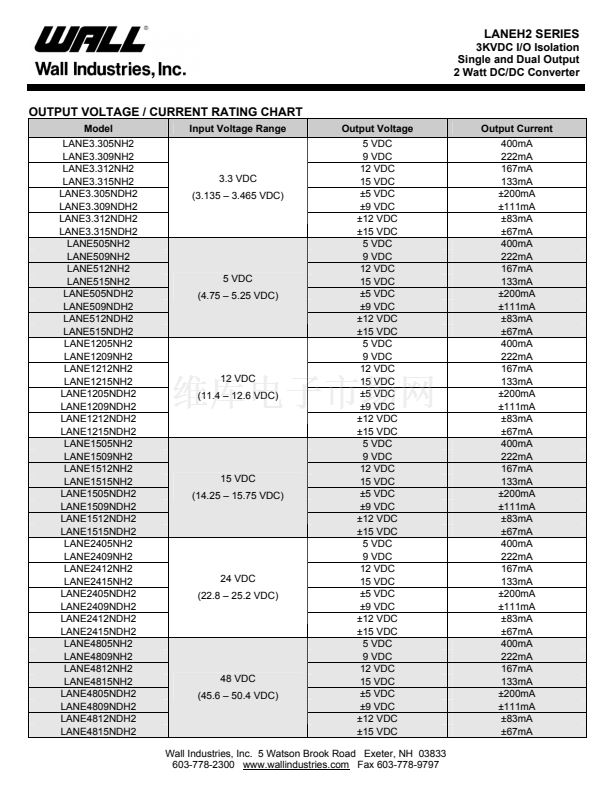

Output Current ................................................................ see table
Output Voltage ................................................................ see table
Output Voltage Accuracy ....................................................... 鹵5%
Line Regulation ........................................1.2%/1% of Vin (typical)
Load Regulation (10% to 100% full load) .......................10% max.
Ripple/Noise (20MHz BW) ................................... 150mVp-p max.
ENVIRONMENTAL SPECIFICATIONS
Operating Temperature .............................................. 0擄C ~ +70擄C
鈥淚鈥?suffix................................................................. -40擄C ~ +85擄C
Humidity.........................................................95% non-condensing
Cooling .............................................................Free air convection
PHYSICAL SPECIFICATIONS
Weight .....................................................Approximately 2.1 grams
Case Material......................................non-conductive black plastic
Dimensions ...............................19.50(L) x 7.10(W) x 10.00(H) mm
PROTECTION
Short Circuit Protection .................................................Short term
Due to advances in technology, specifications subject to change without notice
Wall Industries, Inc. 5 Watson Brook Road Exeter, NH 03833
603-778-2300 www.wallindustries.com Fax 603-778-9797
