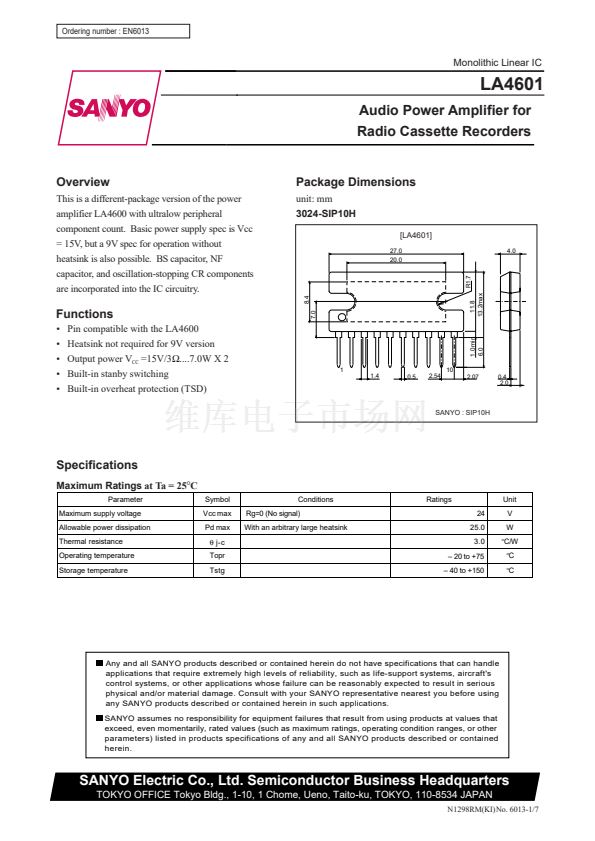

Ordering number : EN6013
LA4601
Monolithic Linear IC
LA4601
Audio Power Amplifier for
Radio Cassette Recorders
Overview
This is a different-package version of the power
amplifier LA4600 with ultralow peripheral
component count. Basic power supply spec is Vcc
= 15V, but a 9V spec for operation without
heatsink is also possible. BS capacitor, NF
capacitor, and oscillation-stopping CR components
are incorporated into the IC circuitry.
Package Dimensions
unit: mm
3024-SIP10H
[LA4601]
27.0
20.0
R1.7
4.0
Functions
鈥?Pin compatible with the LA4600
鈥?Heatsink not required for 9V version
鈥?Output power V
CC
=15V/3鈩?...7.0W X 2
鈥?Built-in stanby switching
鈥?Built-in overheat protection (TSD)
7.0
1
1.4
0.5
2.54
10
2.07
0.4
2.0
SANYO : SIP10H
Specifications
Maximum Ratings
at Ta = 25
擄
C
Parameter
Maximum supply voltage
Allowable power dissipation
Thermal resistance
Operating temperature
Storage temperature
Symbol
Vcc max
Pd max
胃
j-c
Topr
Tstg
Conditions
Rg=0 (No signal)
With an arbitrary large heatsink
Ratings
24
25.0
3.0
鈥?20 to +75
鈥?40 to +150
Unit
V
W
擄C/W
擄C
擄C
Any and all SANYO products described or contained herein do not have specifications that can handle
applications that require extremely high levels of reliability, such as life-support systems, aircraft's
control systems, or other applications whose failure can be reasonably expected to result in serious
physical and/or material damage. Consult with your SANYO representative nearest you before using
any SANYO products described or contained herein in such applications.
SANYO assumes no responsibility for equipment failures that result from using products at values that
exceed, even momentarily, rated values (such as maximum ratings, operating condition ranges, or other
parameters) listed in products specifications of any and all SANYO products described or contained
herein.
SANYO Electric Co., Ltd. Semiconductor Business Headquarters
TOKYO OFFICE Tokyo Bldg., 1-10, 1 Chome, Ueno, Taito-ku, TOKYO, 110-8534 JAPAN
N1298RM(KI) No. 6013-1/7
1.0 min
6.0
11.8
13.2max
8.4
1
2
3
4
5
6
7
