FRD
T y p e :
KSF30A60B
F30A

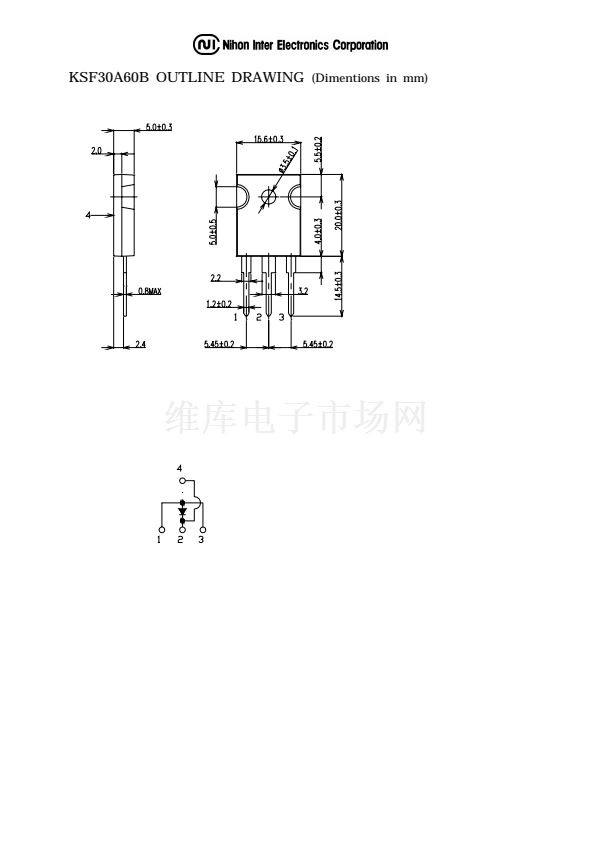

OULINE DRAWING
FEATURES
* Similar to TO-247AC(TO-3P)Case
* Ultra-Fast Recovery
* Low Forward Voltage Drop
* Low Power Loss,High Efficiency
* High Surge Current Capability
* 200Volts thru 600Volts Type Available
Maximum Ratings
Rating
Repetitive Peak Reverse Voltage
Average Rectified Output Current *1
RMS Forward Current
Surge Forward Current
Operating JunctionTemperature Range
Storage Temperature Range
Mounting torque
*1:Anode Terminals 1 and 3 Connected
Approx Net Weight:
5.55g
Symbol
V
RRM
I
O
I
F(RMS)
I
FSM
T
jw
T
stg
Ftor
400
30
KSF30A60B
600
50 Hz half Sine Wave
Tc=64擄C
Resistive Load
47
50Hz Half Sine Wave ,1cycle
Non-repetitive
-40 to +150
-40 to +150
recommended torque = 0.5
Unit
V
A
A
A
擄C
擄C
N鈥
Electrical
鈥?/div>
Thermal Characteristics
Characteristics
Peak Reverse Current
Peak Forward Voltage *1
Reverse Recovery Time
Thermal Resistance
*1:Anode Terminals 1 and 3 Connected
Symbol
I
RM
V
FM
Conditions
Min.
-
-
Typ. Max.
-
-
50
1.7
60
-
-
1.4
Unit
碌A(chǔ)
V
ns
擄C
/W
Tj= 25擄C, V
RM
= V
RRM
Tj= 25擄C, I
FM
= 30 A
I
FM
= 10A,
trr
-di/dt=50A/碌s, Ta=25擄C
Rth(j-c) Junction to Case
1
2
