KS88C0716/P0716

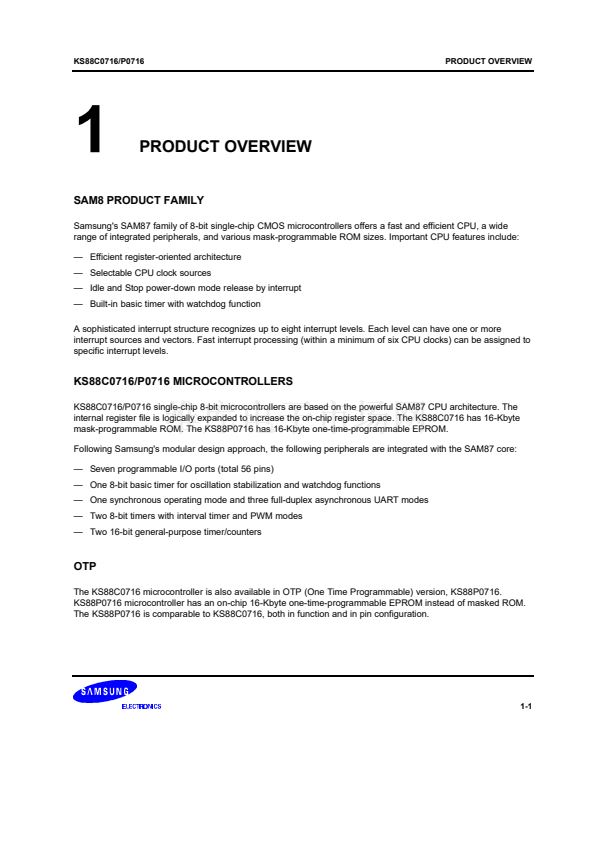

PRODUCT OVERVIEW

SAM8 PRODUCT FAMILY

Samsung's SAM87 family of 8-bit single-chip CMOS microcontrollers offers a fast and efficient CPU, a wide

range of integrated peripherals, and various mask-programmable ROM sizes. Important CPU features include:

鈥?Efficient register-oriented architecture

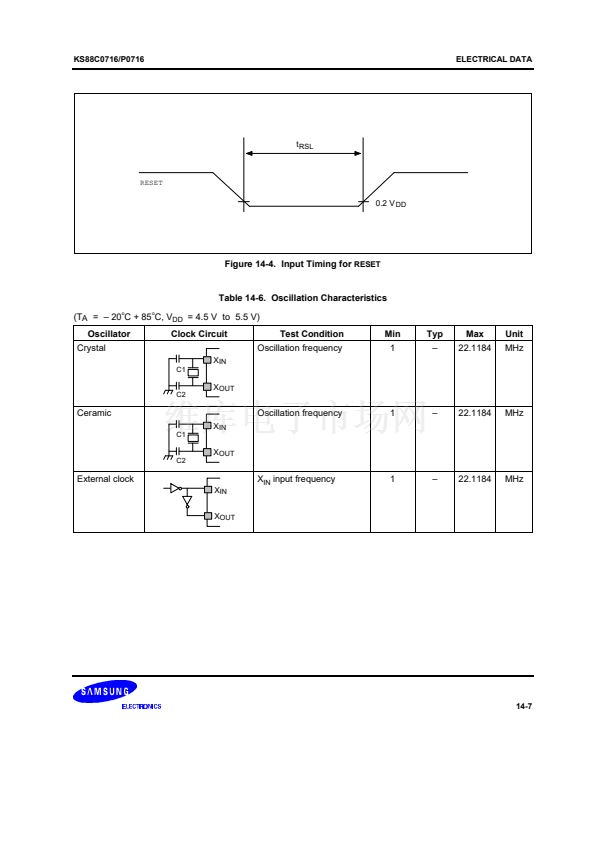

鈥?Selectable CPU clock sources

鈥?Idle and Stop power-down mode release by interrupt

鈥?Built-in basic timer with watchdog function

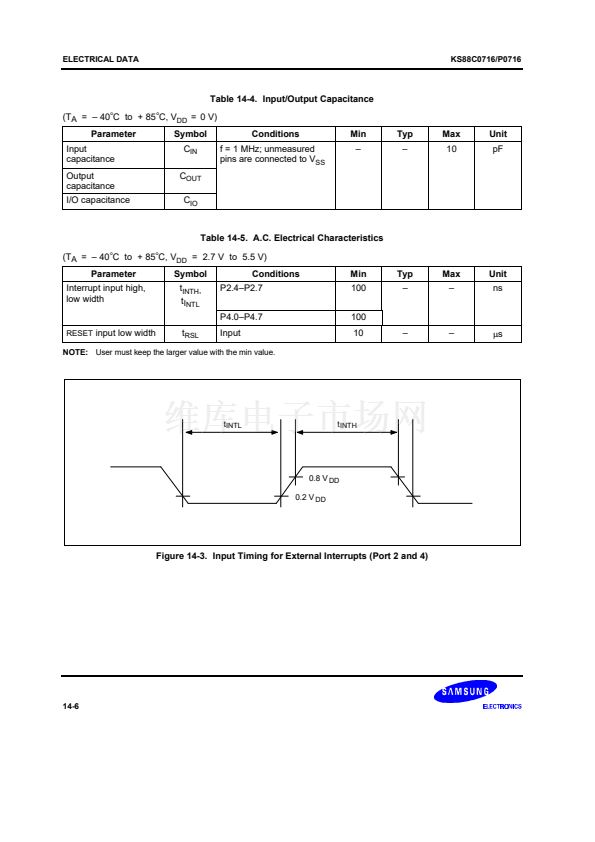

A sophisticated interrupt structure recognizes up to eight interrupt levels. Each level can have one or more

interrupt sources and vectors. Fast interrupt processing (within a minimum of six CPU clocks) can be assigned to

specific interrupt levels.

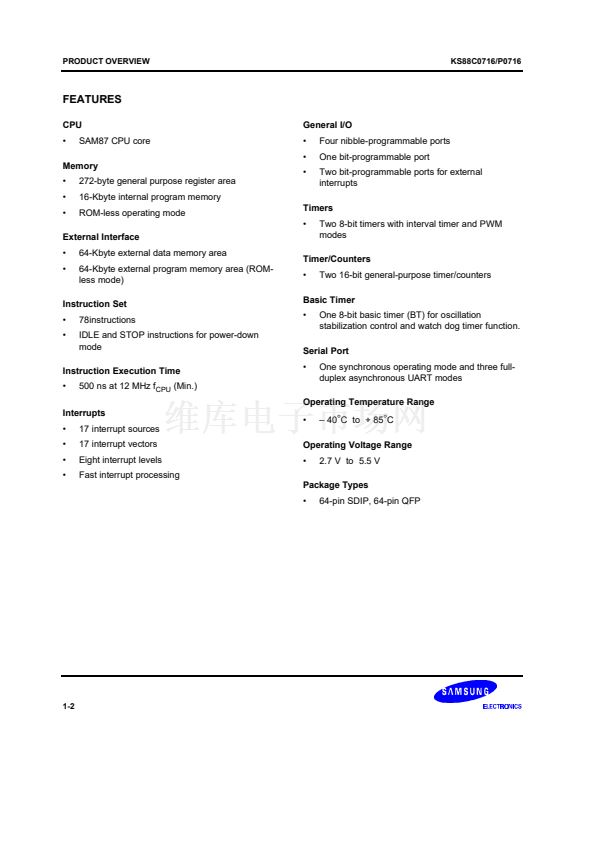

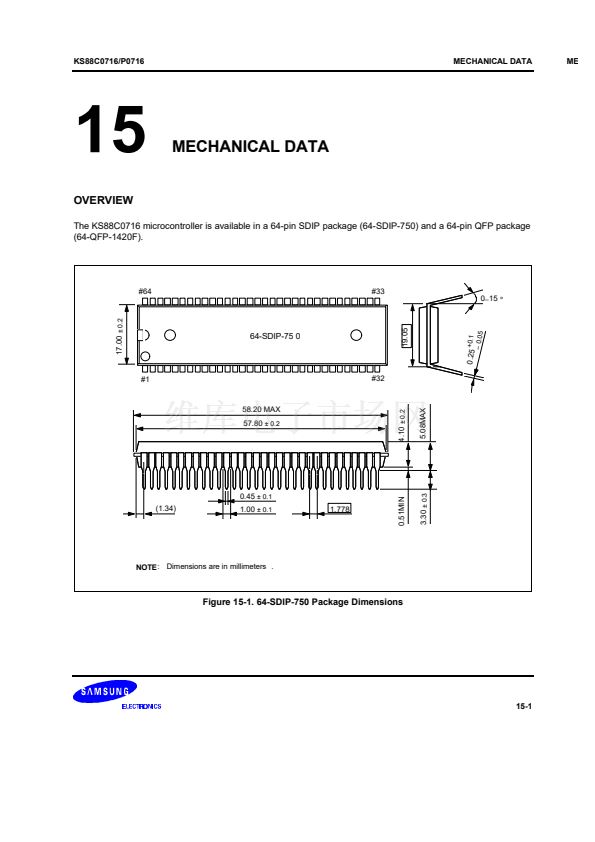

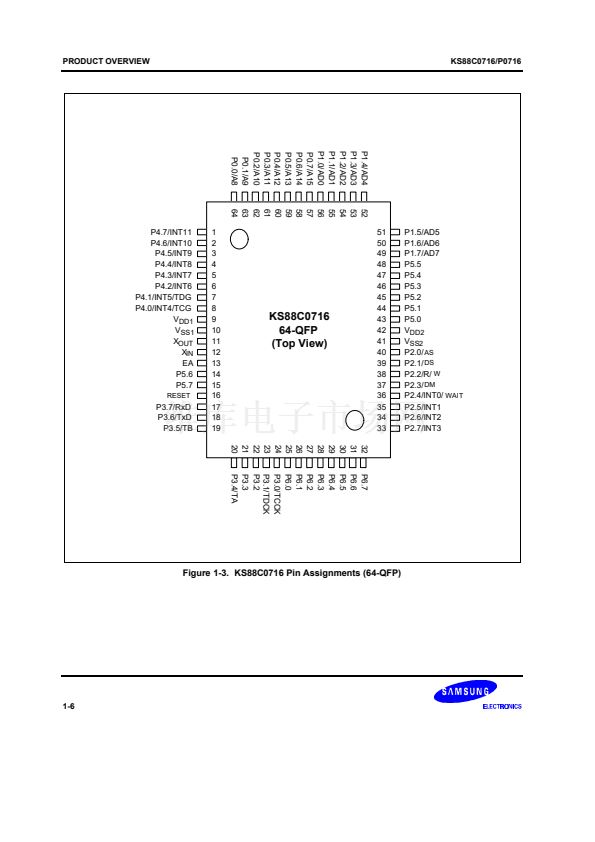

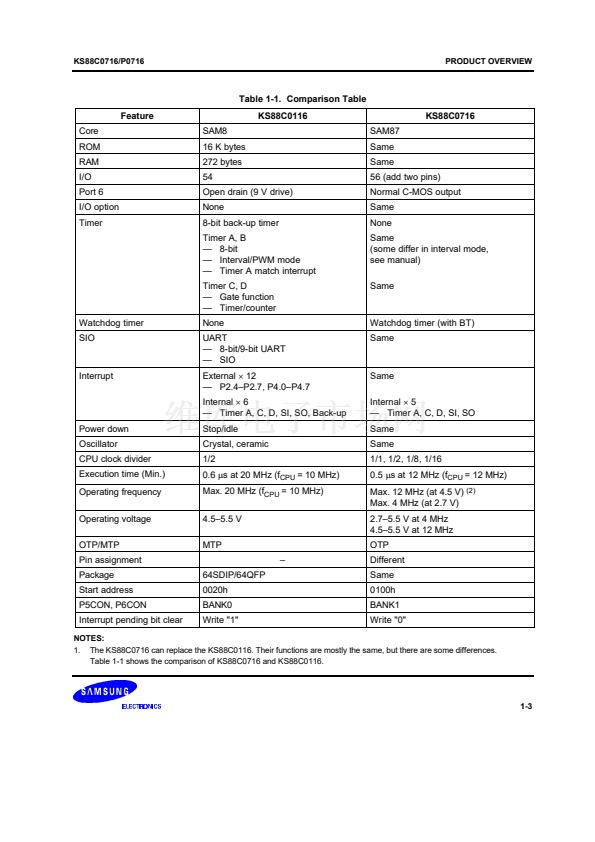

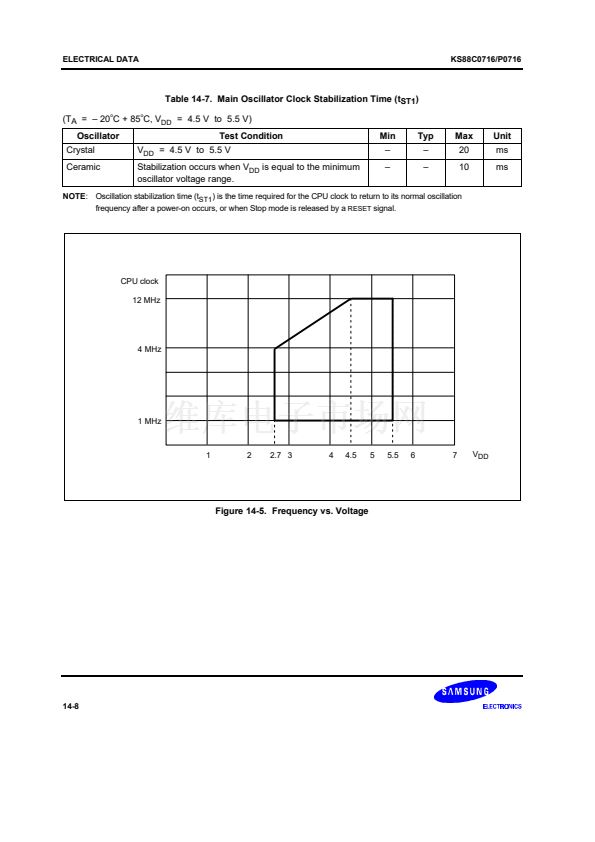

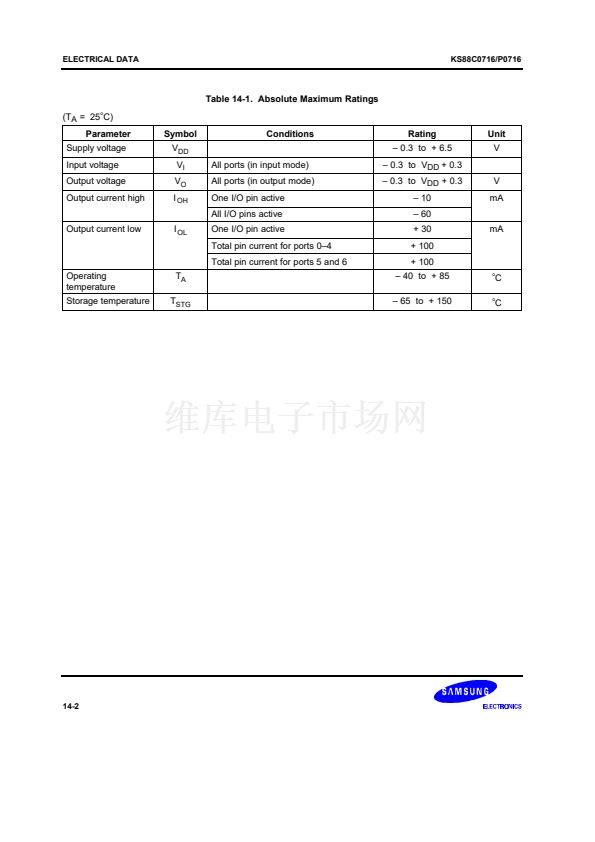

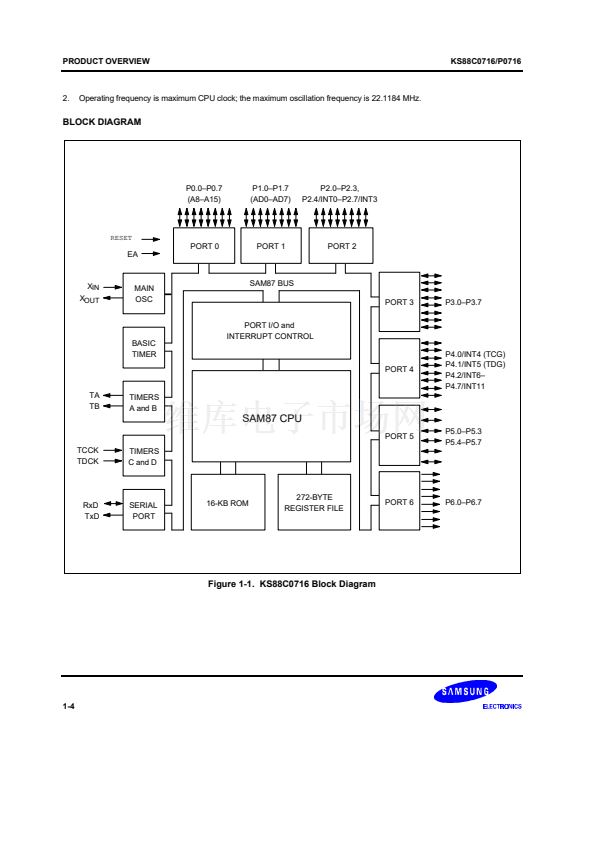

KS88C0716/P0716 MICROCONTROLLERS

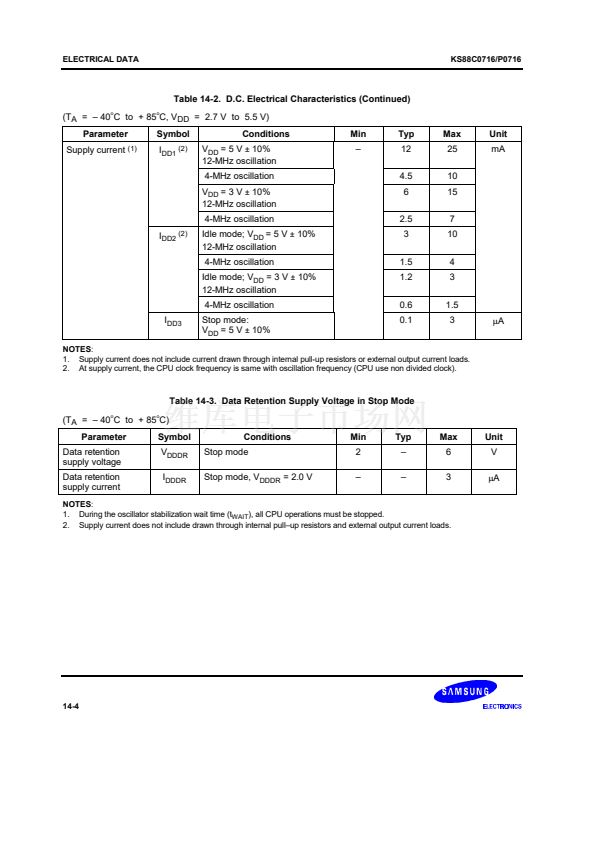

KS88C0716/P0716 single-chip 8-bit microcontrollers are based on the powerful SAM87 CPU architecture. The

internal register file is logically expanded to increase the on-chip register space. The KS88C0716 has 16-Kbyte

mask-programmable ROM. The KS88P0716 has 16-Kbyte one-time-programmable EPROM.

Following Samsung's modular design approach, the following peripherals are integrated with the SAM87 core:

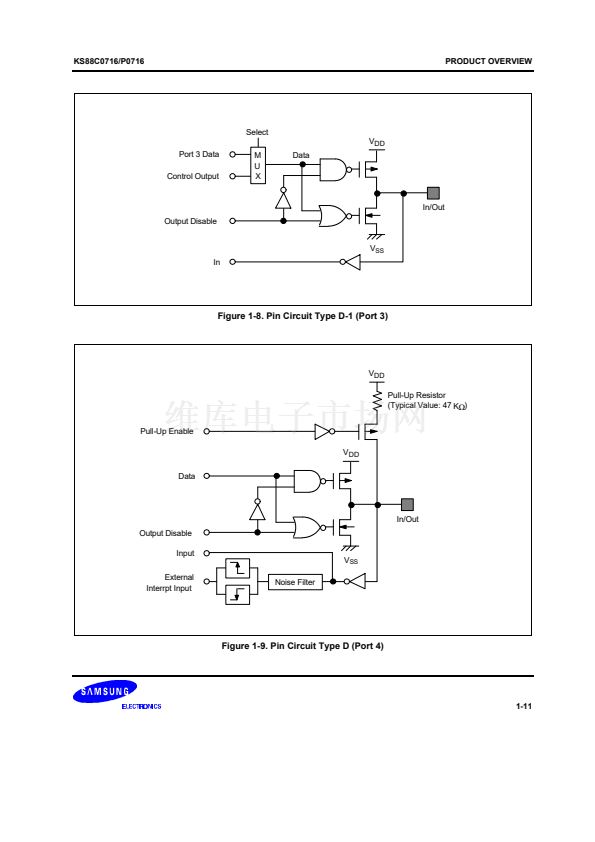

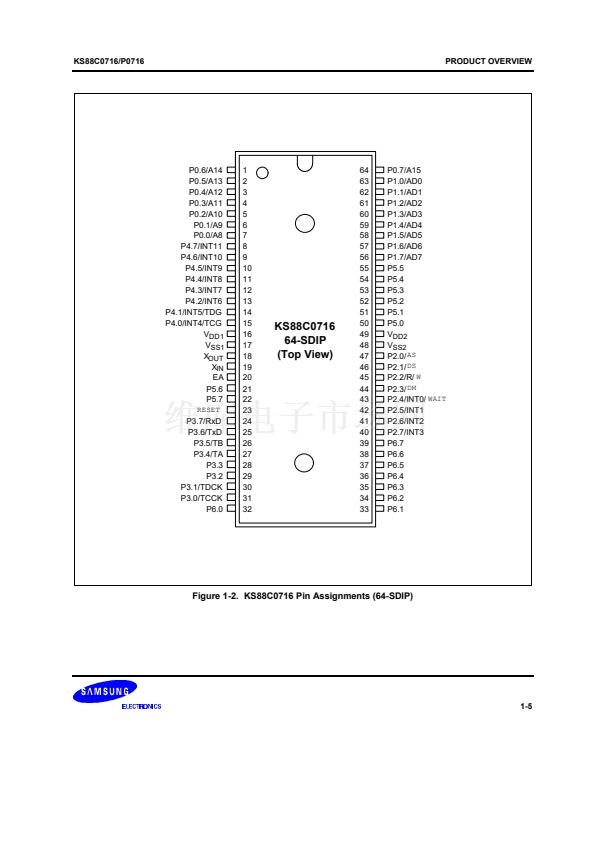

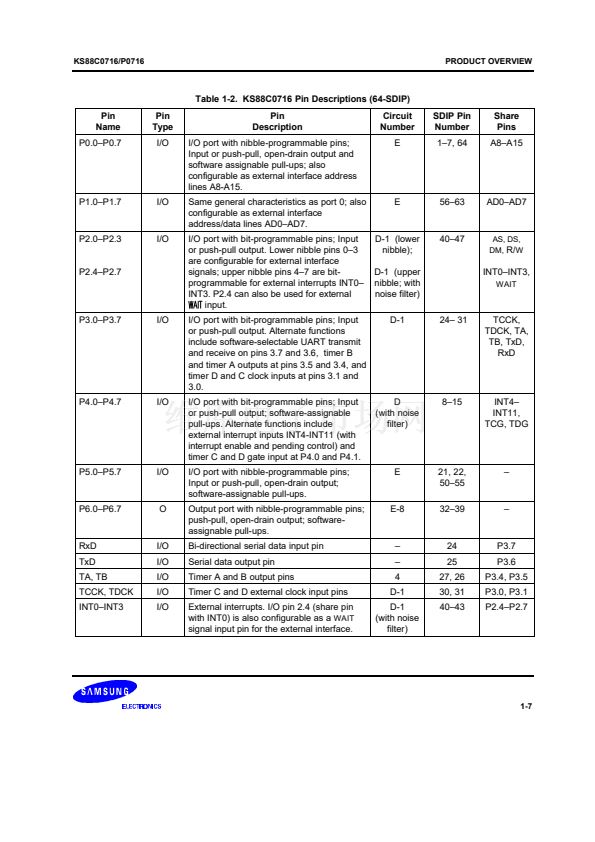

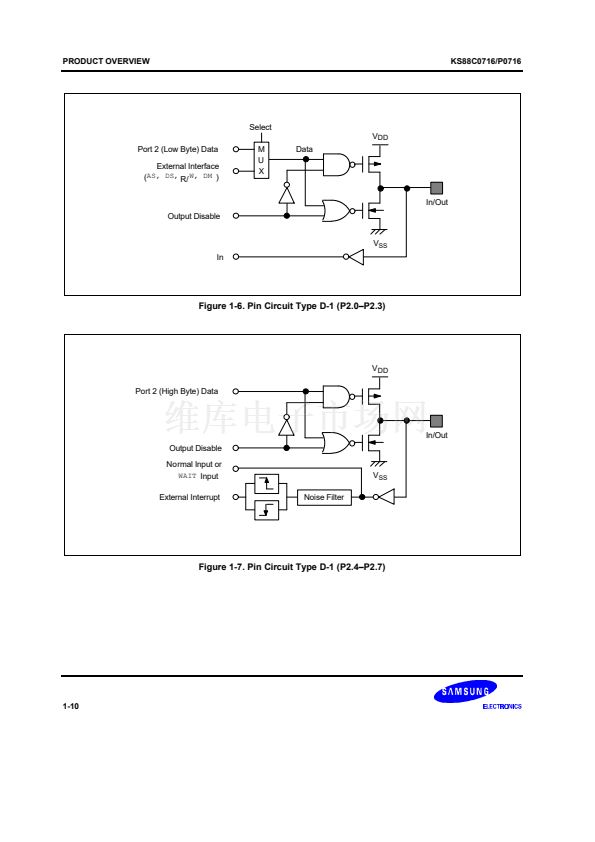

鈥?Seven programmable I/O ports (total 56 pins)

鈥?One 8-bit basic timer for oscillation stabilization and watchdog functions

鈥?One synchronous operating mode and three full-duplex asynchronous UART modes

鈥?Two 8-bit timers with interval timer and PWM modes

鈥?Two 16-bit general-purpose timer/counters

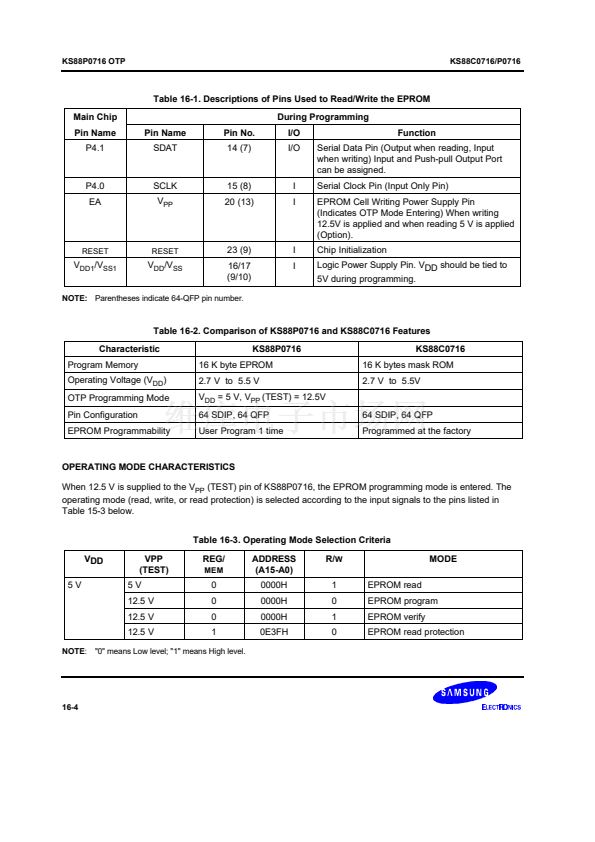

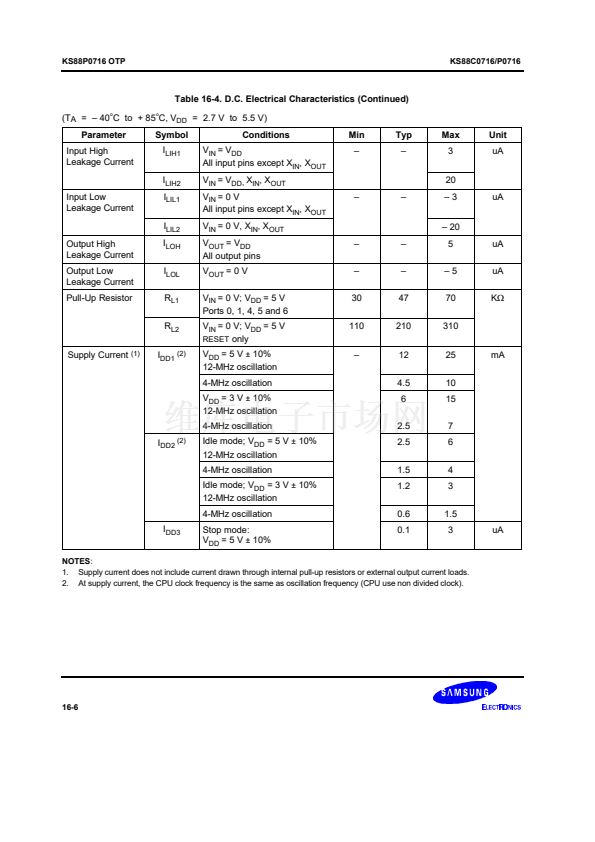

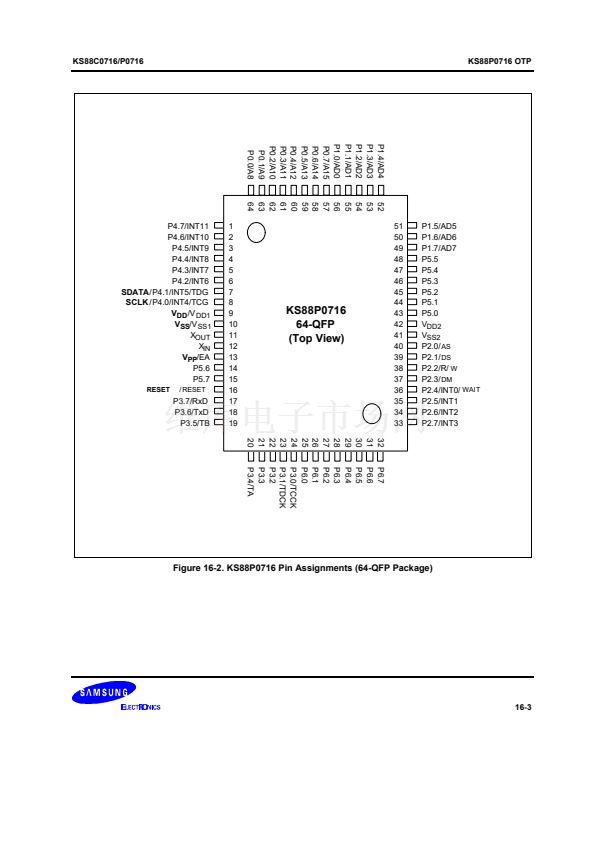

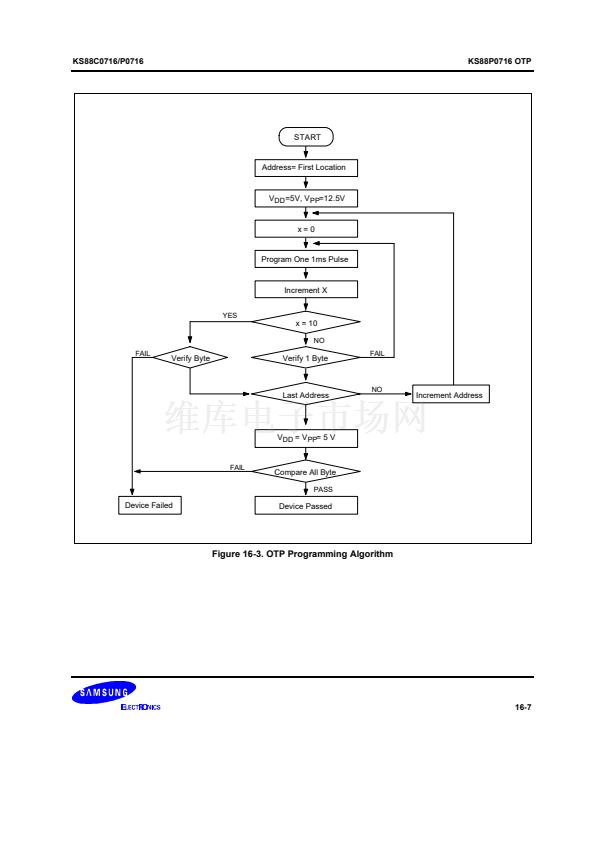

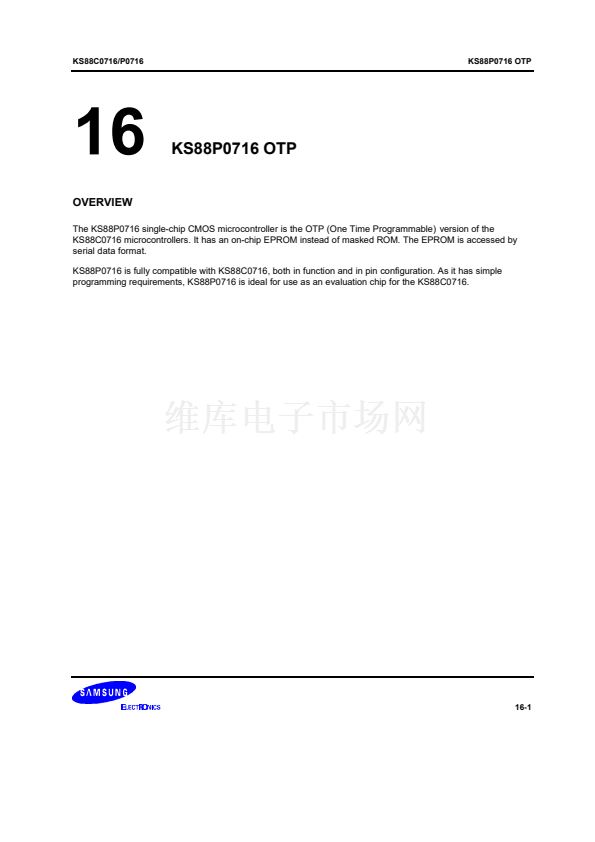

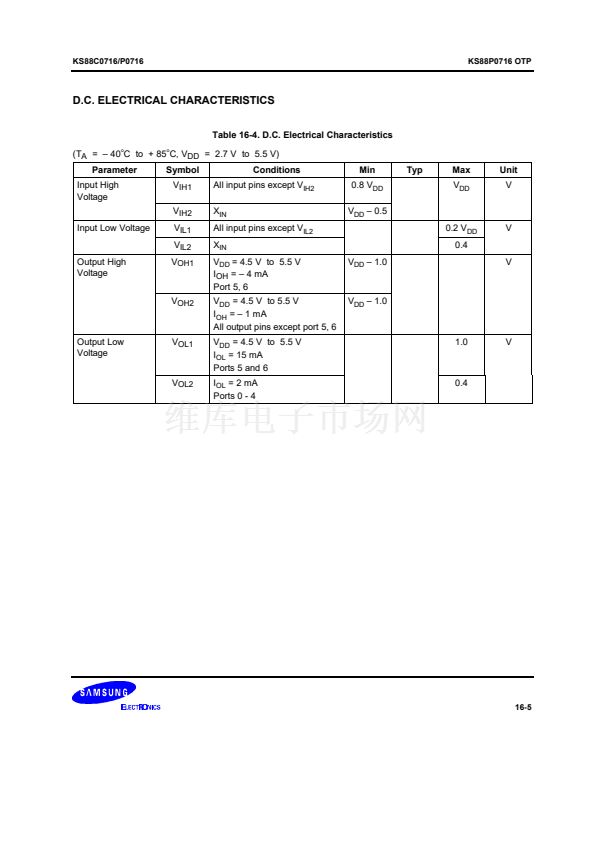

OTP

The KS88C0716 microcontroller is also available in OTP (One Time Programmable) version, KS88P0716.

KS88P0716 microcontroller has an on-chip 16-Kbyte one-time-programmable EPROM instead of masked ROM.

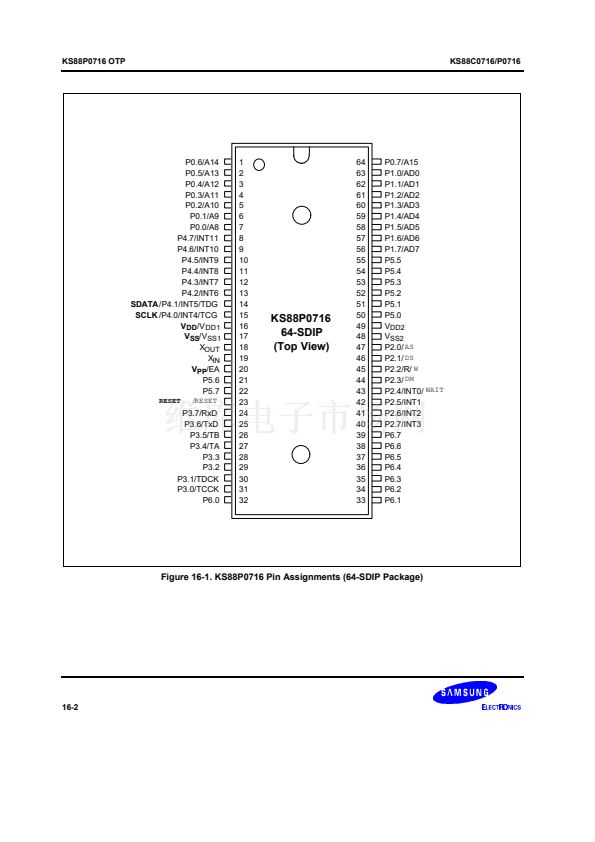

The KS88P0716 is comparable to KS88C0716, both in function and in pin configuration.
