KS88C6232 Datasheet

  • KS88C6232

  • SAM8 family of 8-bit single-chip CMOS microcontrollers offer...

  • 211.46KB

  • 24頁

  • SAMSUNG   SAMSUNG

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

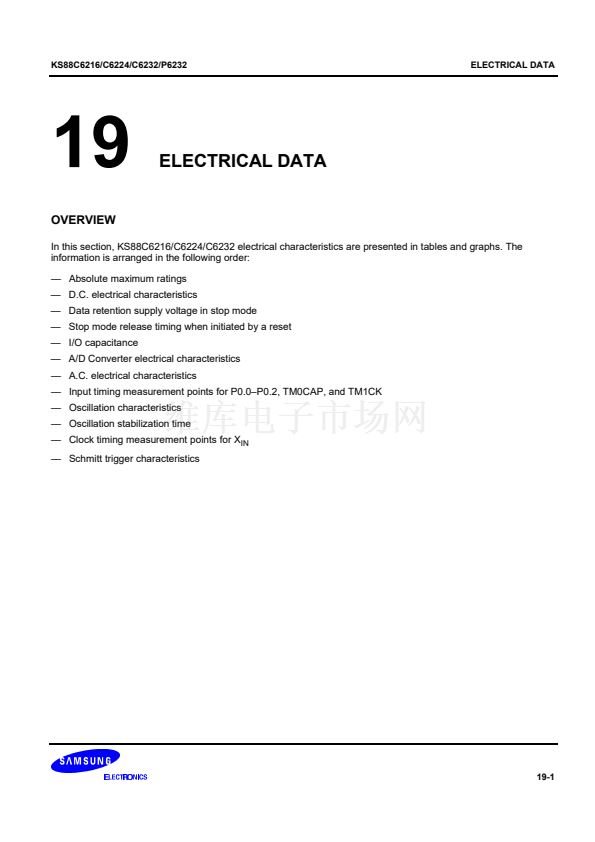

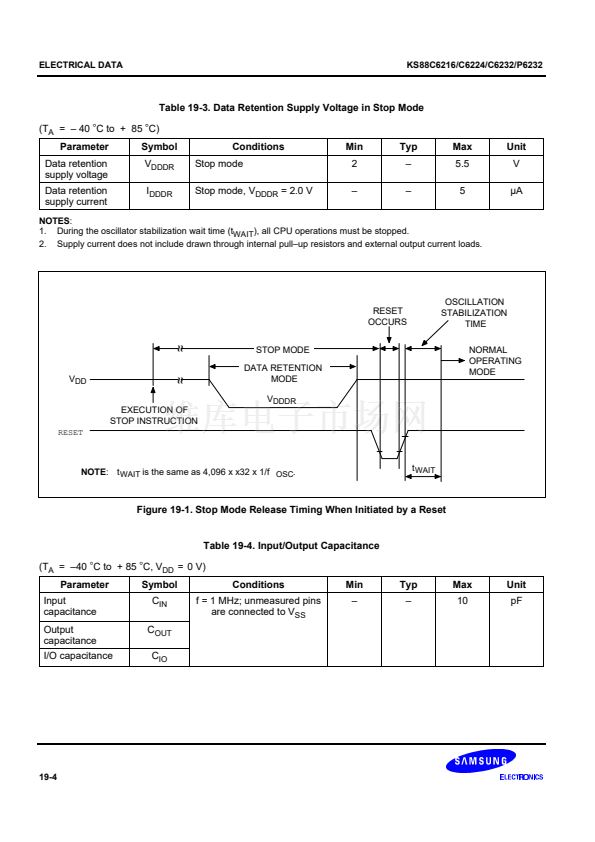

KS88C6216/C6224/C6232/P6232

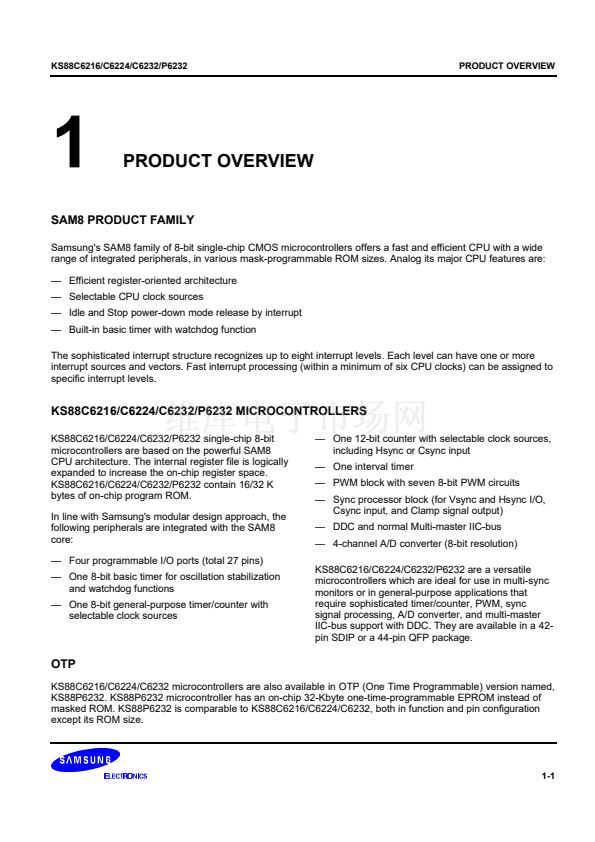

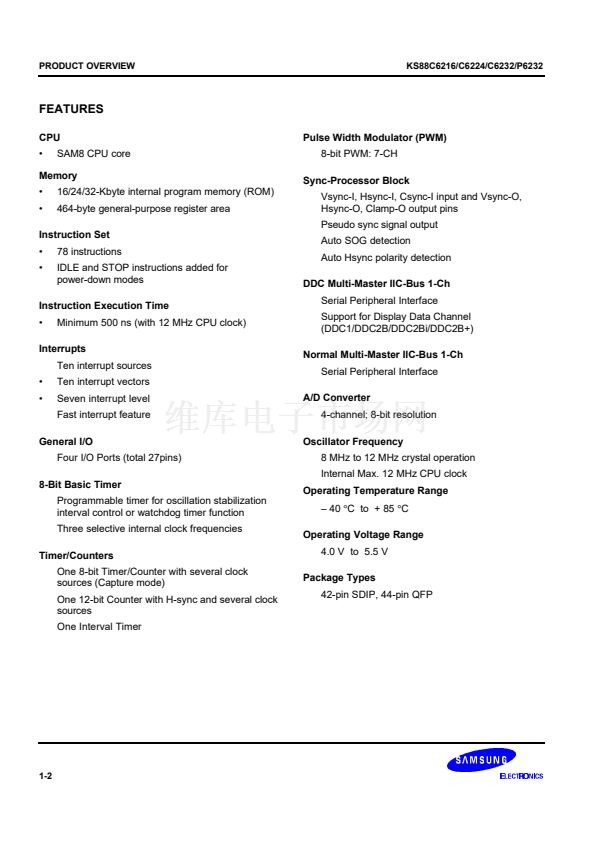

PRODUCT OVERVIEW
1
PRODUCT OVERVIEW
SAM8 PRODUCT FAMILY
Samsung's SAM8 family of 8-bit single-chip CMOS microcontrollers offers a fast and efficient CPU with a wide
range of integrated peripherals, in various mask-programmable ROM sizes. Analog its major CPU features are:
鈥?Efficient register-oriented architecture
鈥?Selectable CPU clock sources
鈥?Idle and Stop power-down mode release by interrupt
鈥?Built-in basic timer with watchdog function

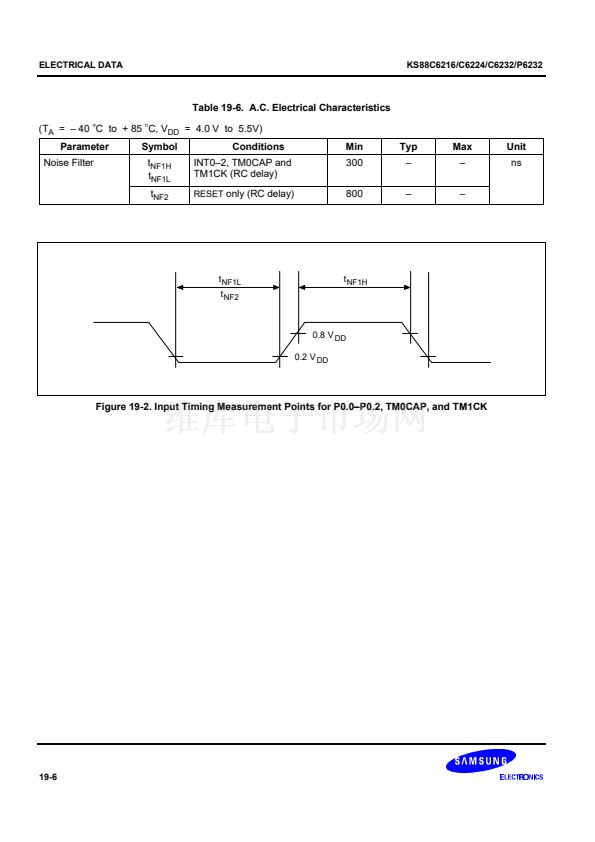

The sophisticated interrupt structure recognizes up to eight interrupt levels. Each level can have one or more
interrupt sources and vectors. Fast interrupt processing (within a minimum of six CPU clocks) can be assigned to
specific interrupt levels.

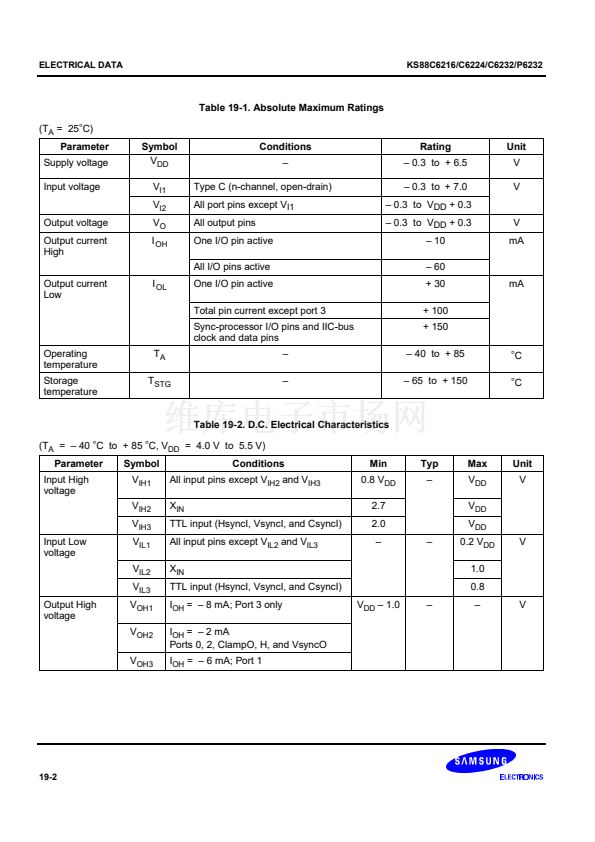

KS88C6216/C6224/C6232/P6232 MICROCONTROLLERS
KS88C6216/C6224/C6232/P6232 single-chip 8-bit
microcontrollers are based on the powerful SAM8
CPU architecture. The internal register file is logically
expanded to increase the on-chip register space.
KS88C6216/C6224/C6232/P6232 contain 16/32 K
bytes of on-chip program ROM.

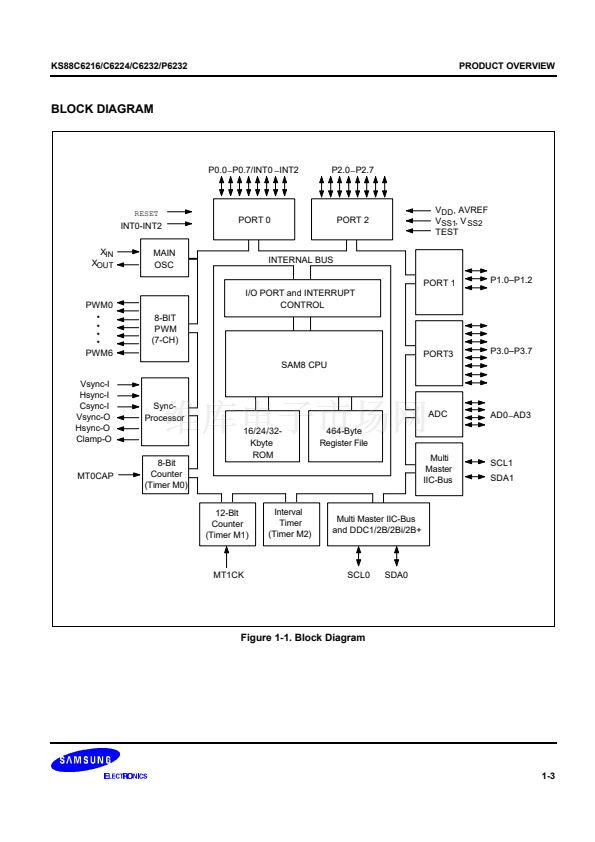

In line with Samsung's modular design approach, the
following peripherals are integrated with the SAM8
core:

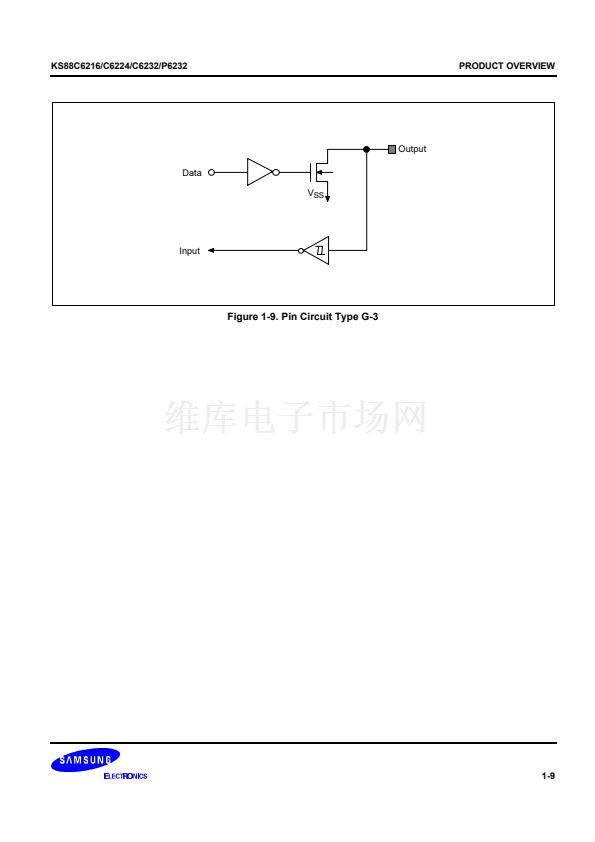

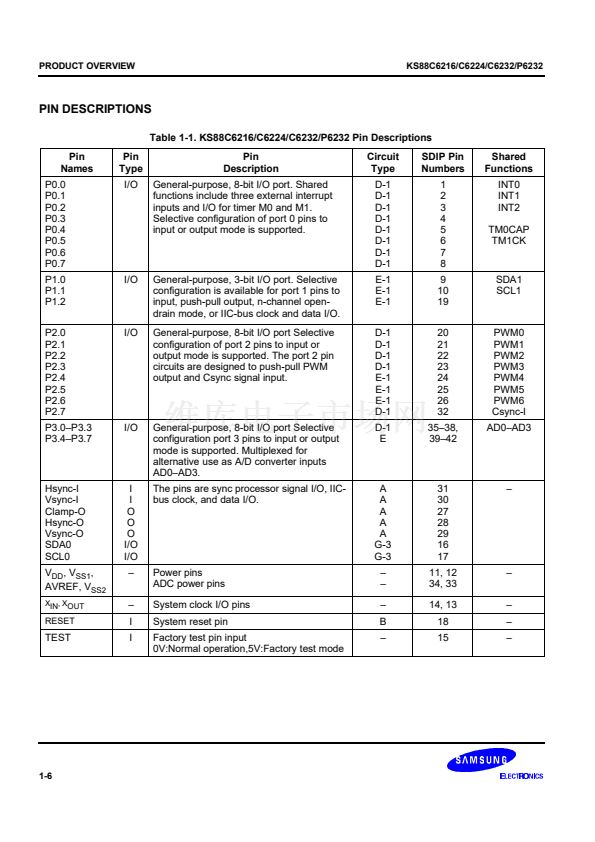

鈥?Four programmable I/O ports (total 27 pins)
鈥?One 8-bit basic timer for oscillation stabilization
and watchdog functions
鈥?One 8-bit general-purpose timer/counter with
selectable clock sources
鈥?One 12-bit counter with selectable clock sources,
including Hsync or Csync input
鈥?One interval timer
鈥?PWM block with seven 8-bit PWM circuits
鈥?Sync processor block (for Vsync and Hsync I/O,
Csync input, and Clamp signal output)
鈥?DDC and normal Multi-master IIC-bus

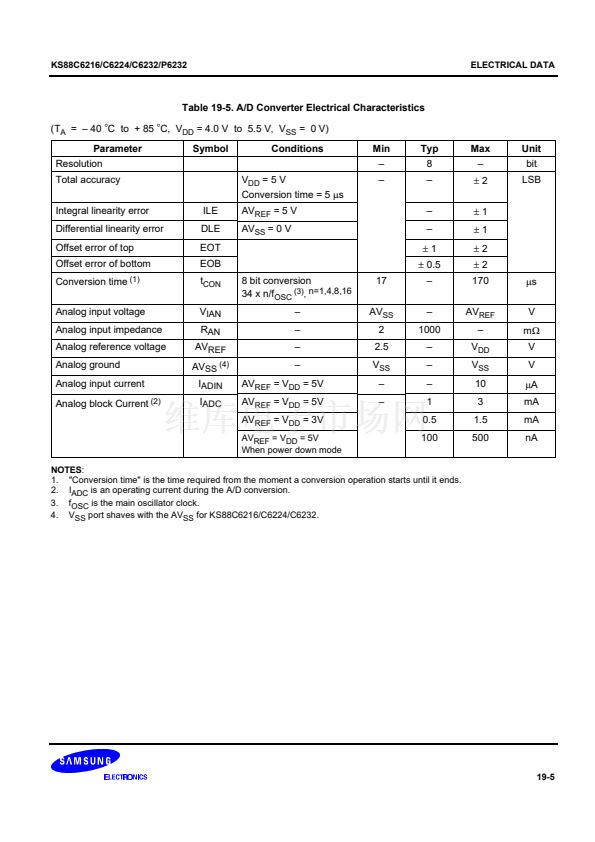

鈥?4-channel A/D converter (8-bit resolution)
KS88C6216/C6224/C6232/P6232 are a versatile
microcontrollers which are ideal for use in multi-sync
monitors or in general-purpose applications that
require sophisticated timer/counter, PWM, sync
signal processing, A/D converter, and multi-master

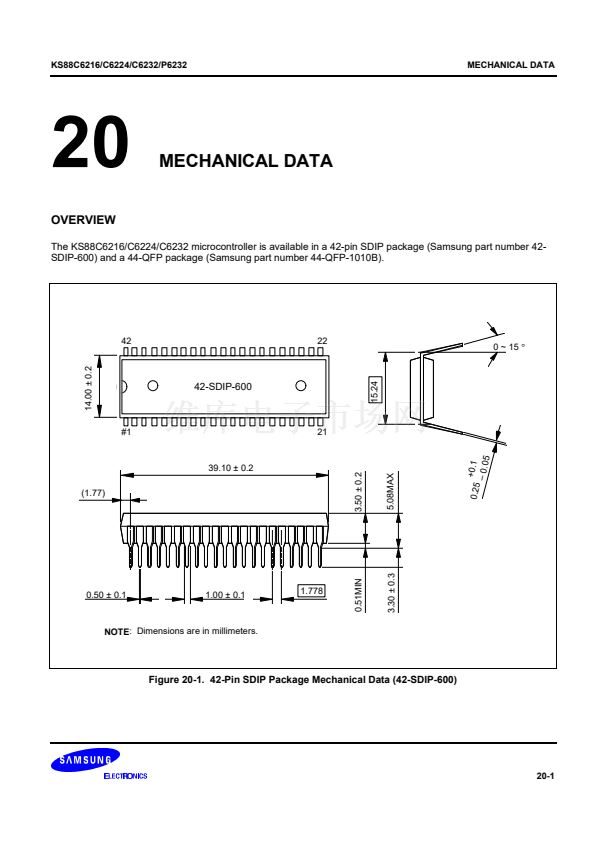

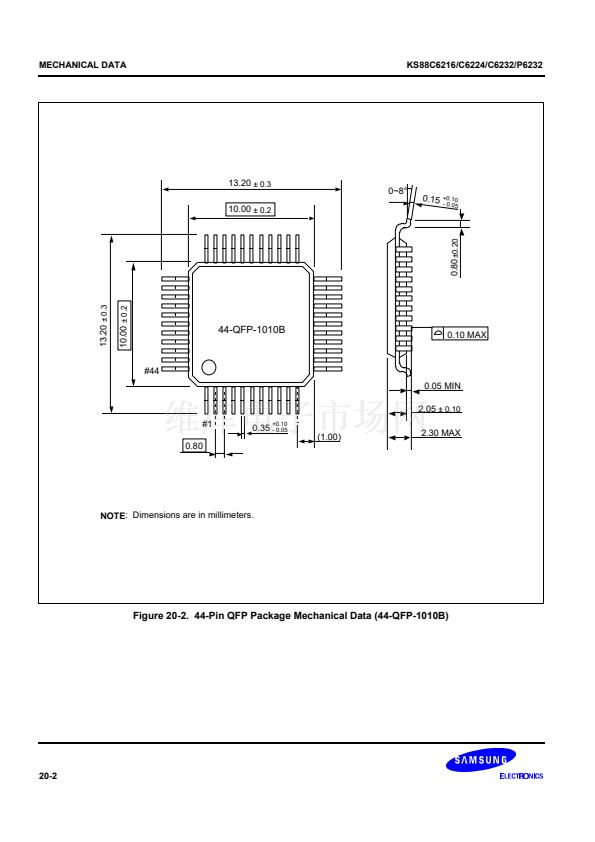

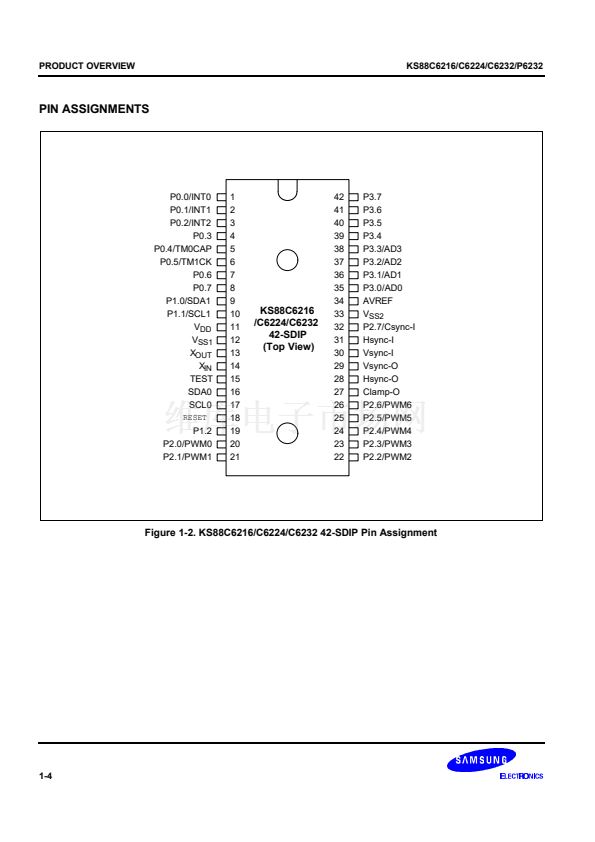

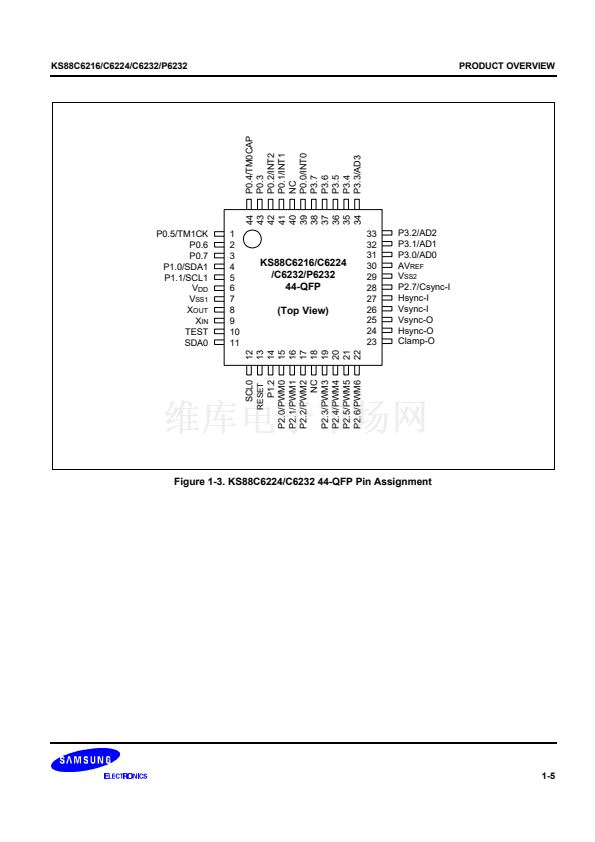

IIC-bus support with DDC. They are available in a 42-
pin SDIP or a 44-pin QFP package.

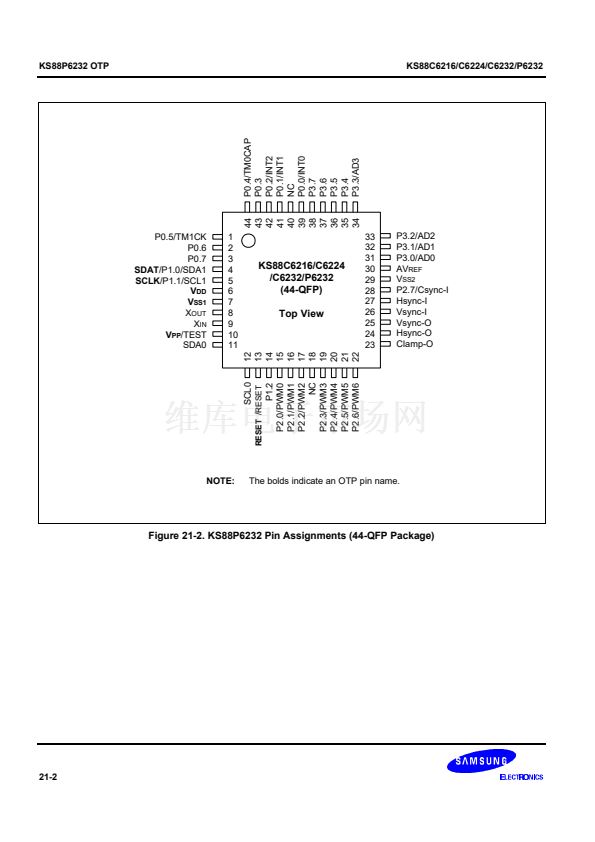

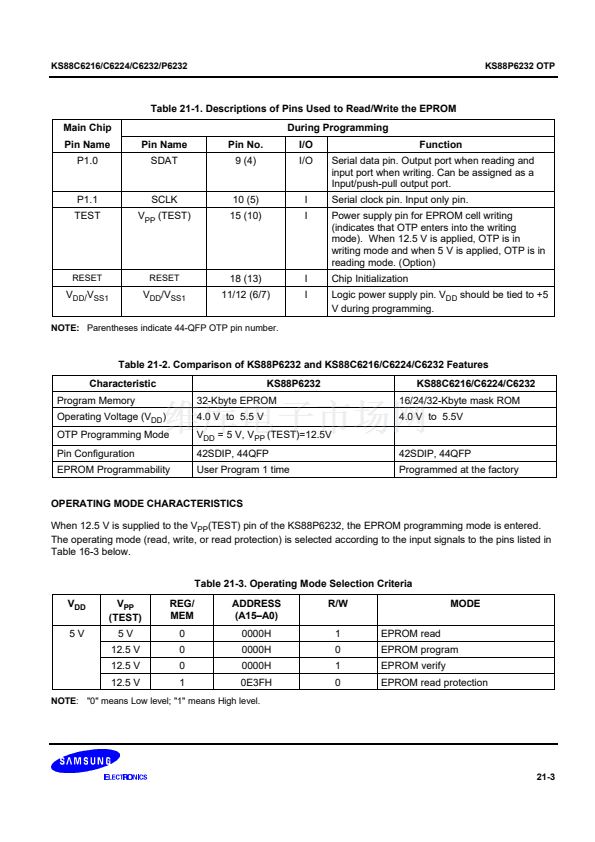

OTP
KS88C6216/C6224/C6232 microcontrollers are also available in OTP (One Time Programmable) version named,
KS88P6232. KS88P6232 microcontroller has an on-chip 32-Kbyte one-time-programmable EPROM instead of
masked ROM. KS88P6232 is comparable to KS88C6216/C6224/C6232, both in function and pin configuration
except its ROM size.
1-1
