KS88C6116 Datasheet

  • KS88C6116

  • SAM8 family of 8-bit single-chip CMOS microcontrollers offer...

  • 260.19KB

  • 26頁

  • SAMSUNG   SAMSUNG

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

KS88C6108/C6116/P6116 MICROCONTROLLERS
PRODUCT OVERVIEW
1
PRODUCT OVERVIEW

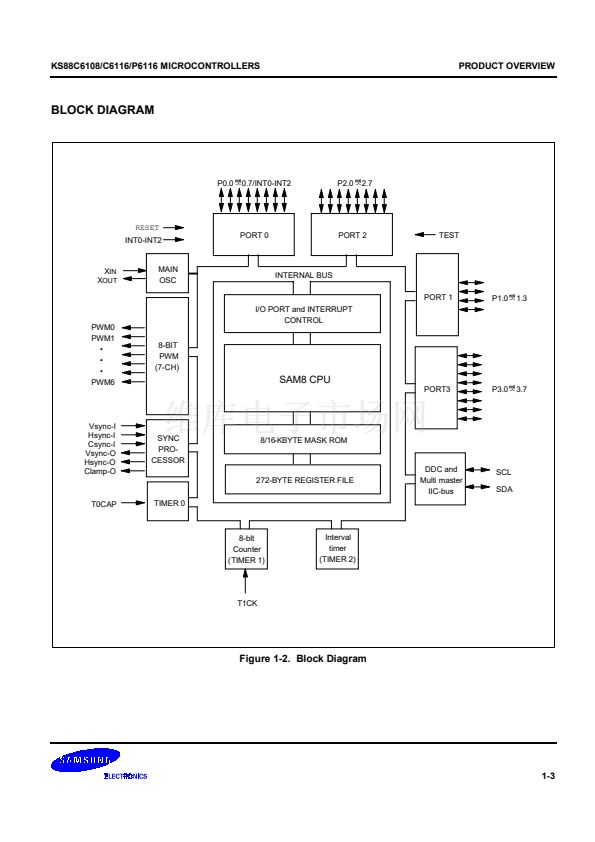

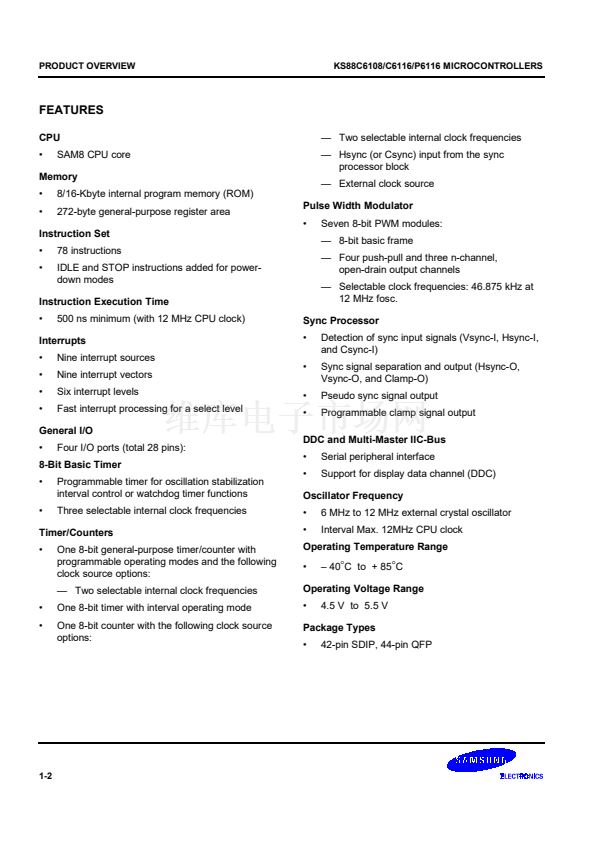

SAM8 PRODUCT FAMILY
Samsung's SAM8 family of 8-bit single-chip CMOS microcontrollers offers a fast and efficient CPU, a wide range
of integrated peripherals, and various mask-programmable ROM sizes. Important CPU features include:
鈥?Efficient register-oriented architecture

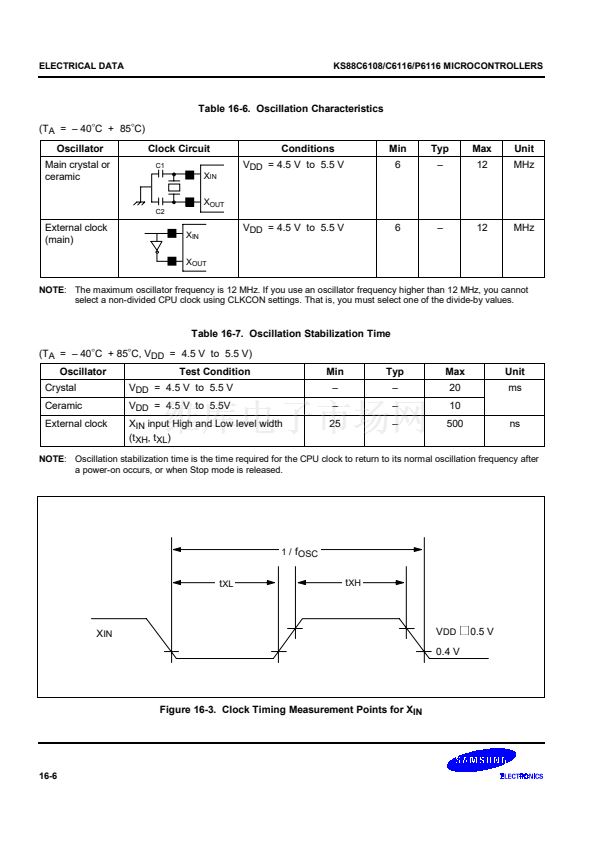

鈥?Selectable CPU clock sources

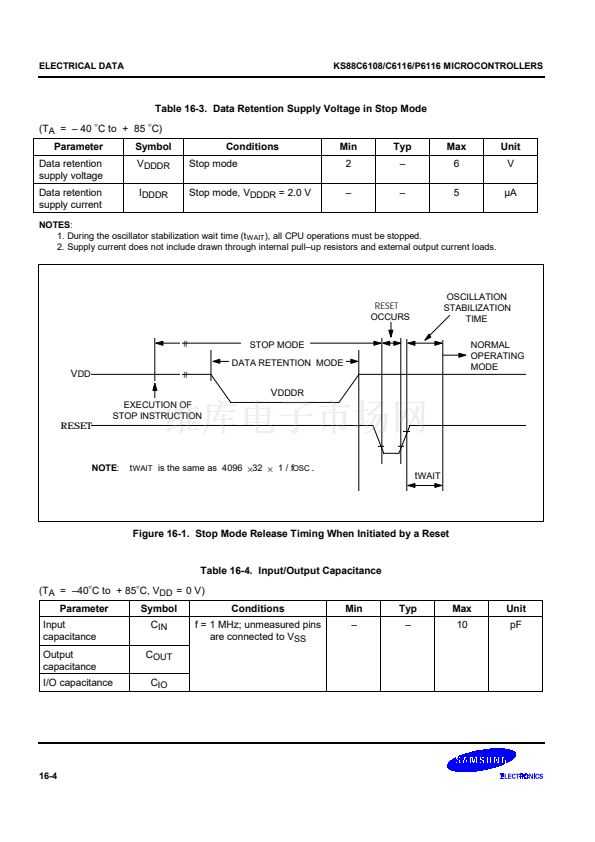

鈥?Idle and Stop power-down mode release by interrupt
鈥?Built-in basic timer with watchdog function
A sophisticated interrupt structure recognizes up to eight interrupt levels. Each level can have one or more
interrupt sources and vectors. Fast interrupt processing (within a minimum six CPU clocks) can be assigned to
specific interrupt levels.
KS88C6108/C6116/P6116 MICROCONTROLLERS
The KS88C6108/C6116/P6116 single-chip 8-bit
microcontroller is based on the powerful SAM8 CPU
architecture. The internal register file is logically
expanded to increase the on-chip register space. The
KS88C6108/C6116/P6116 have 8/16 K bytes of on-
chip program ROM.
Following Samsung's modular design approach, the
following peripherals were integrated with the SAM8
core:

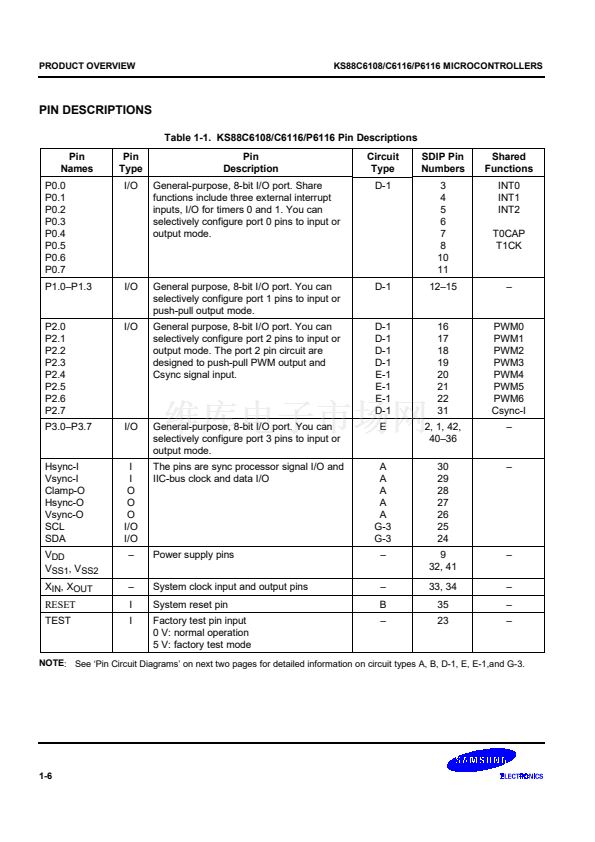

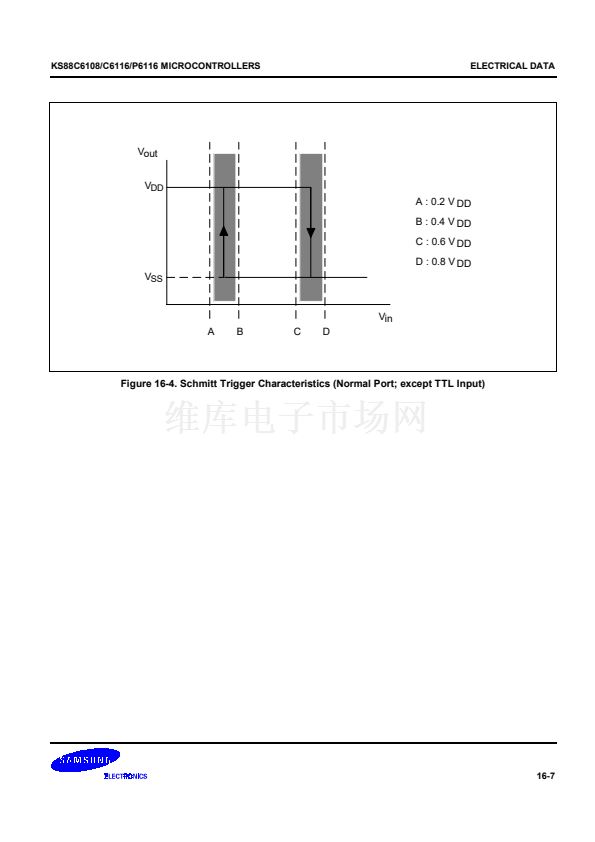

鈥?Four programmable I/O ports (total 28 pins)
鈥?One 8-bit basic timer for oscillation stabilization
and watchdog functions
鈥?One 8-bit general-purpose timer/counter with
selectable clock sources
鈥?One 8-bit counter with selectable clock sources,
including Hsync or Csync input
鈥?One 8-bit timer for interval mode
鈥?PWM block with seven 8-bit PWM circuits
鈥?Sync processor block (for Vsync and Hsync I/O,
Csync input, and Clamp signal output)

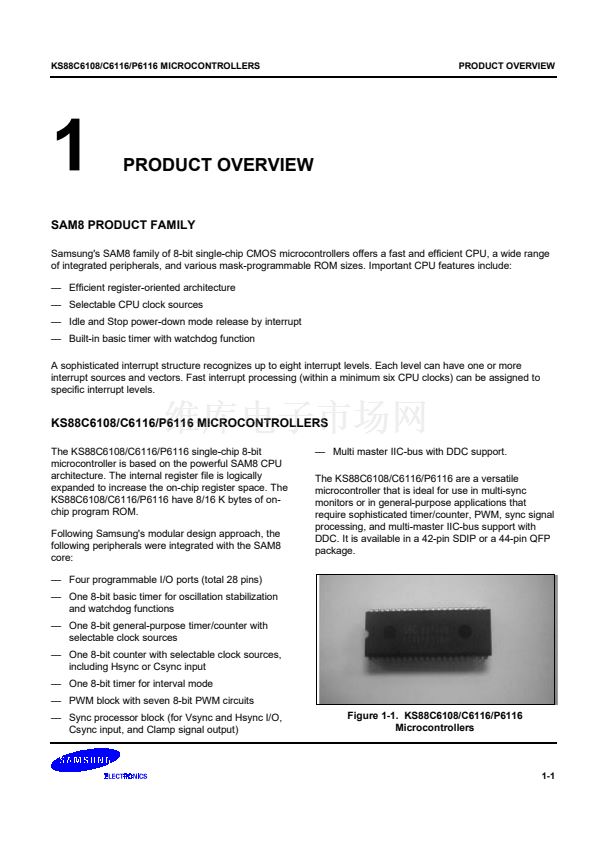

Figure 1-1. KS88C6108/C6116/P6116
Microcontrollers
鈥?Multi master IIC-bus with DDC support.
The KS88C6108/C6116/P6116 are a versatile
microcontroller that is ideal for use in multi-sync
monitors or in general-purpose applications that
require sophisticated timer/counter, PWM, sync signal
processing, and multi-master IIC-bus support with

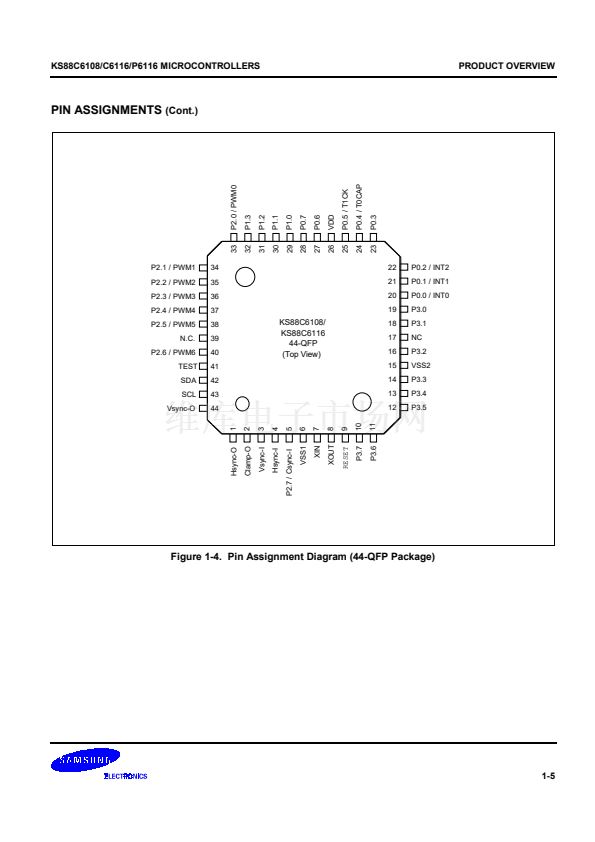

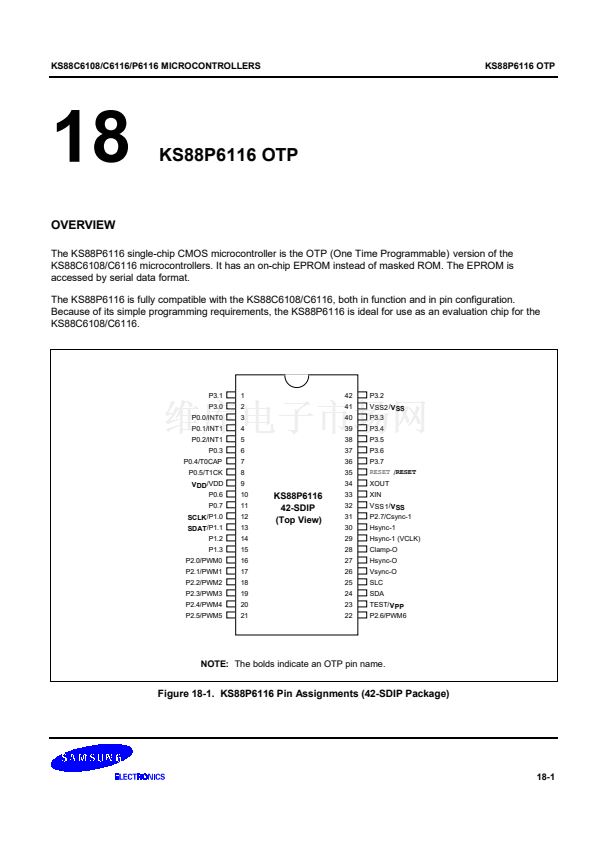

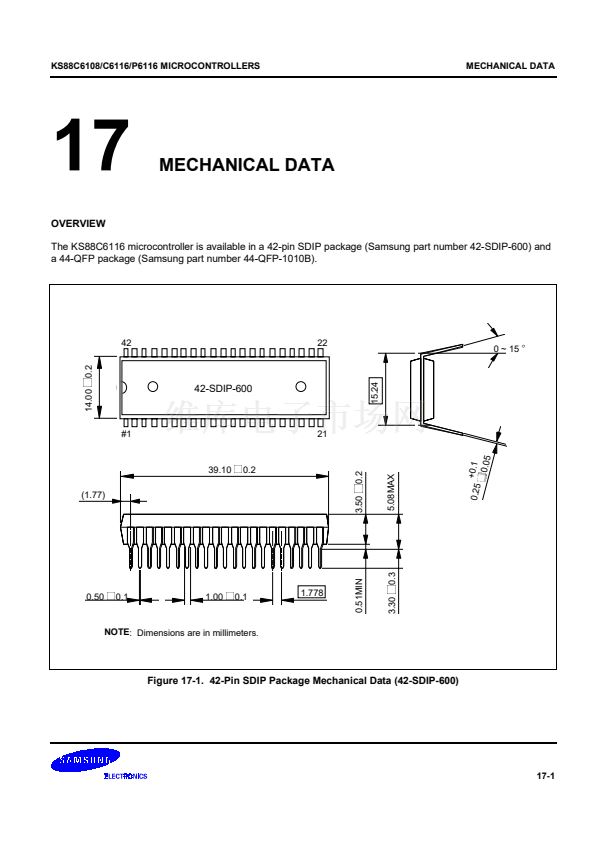

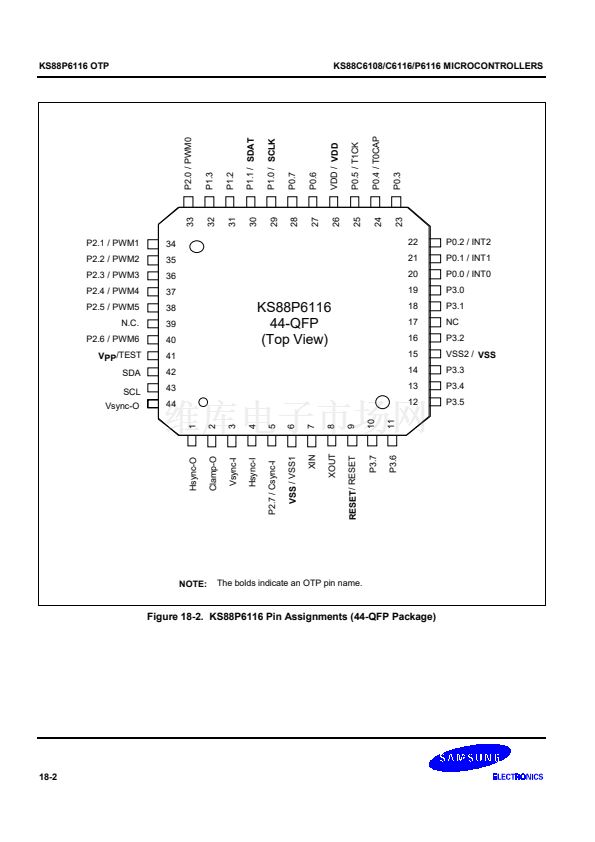

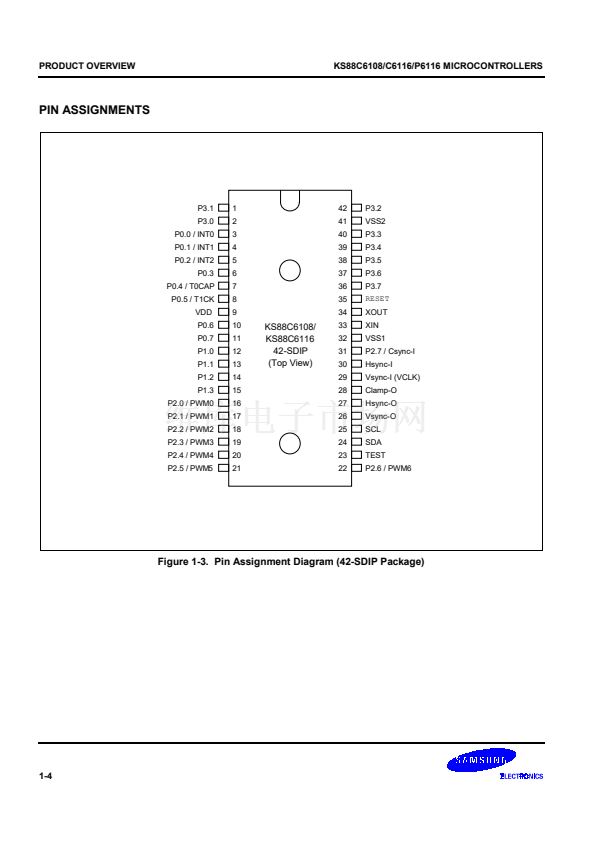

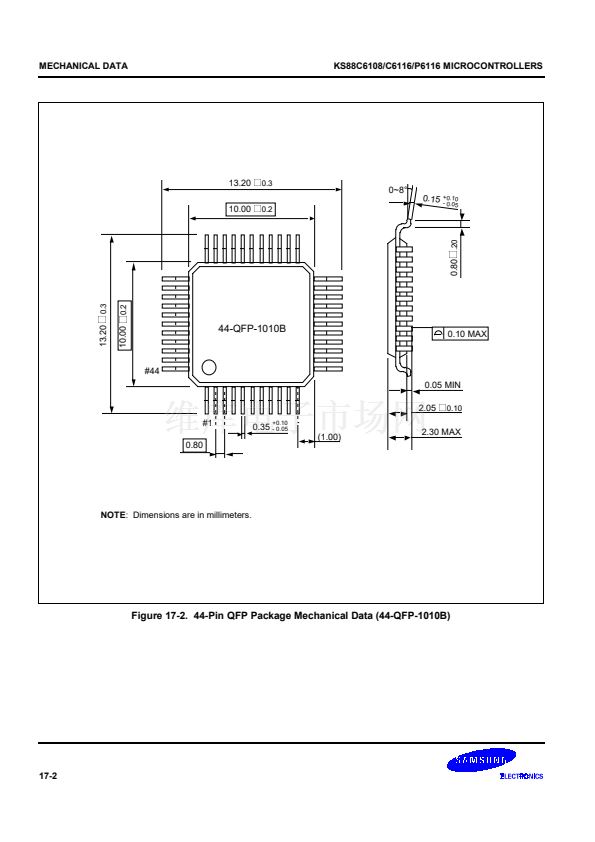

DDC. It is available in a 42-pin SDIP or a 44-pin QFP
package.
1-1
