KL5KUSB107
USB Combo - Serial & Parallel
Description
The Kawasaki USB to Parallel / 2Serial enables your system to have the capability to communicate
between the USB (Universal Serial Bus) port and parallel port and 2 serial ports. This device meets the
USB 1.0/1.1 and IEEE1284 enhanced parallel port and standard serial port specifications. All the
advantages of USB are available to peripherals with parallel and serial port interface. With Kawasaki鈥檚
USB to Serial/Parallel device and software, it is transparent to the peripheral and no firmware changes
are required which makes it possible to convert peripherals with serial and parallel interfaces to USB
interface with minimum modifications. This device is ideal for Legacy solutions.
Features
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
Advanced 16 Bit processor for USB transaction
processing and control data processing
Compliant with the USB 1.0/1.1 (Universal
Serial Bus)
Plug and Play compatible
Compliant with USB printer device class
specification
Utilizes low cost external crystal circuitry
IEEE1284 compliant including EPP and ECP
PC parallel port register-based standard
operation
5V tolerate Centronics inputs pins.
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
2 serial ports
230Kbps serial baud rate
128 byte FIFO
Serial EEPROM interface
Utilizes low cost external crystal circuitry
1.5K x 16 internal RAM buffer for fast
communications
Debug UART for debug and code development
USB host device drivers available
Multiple logical channels support

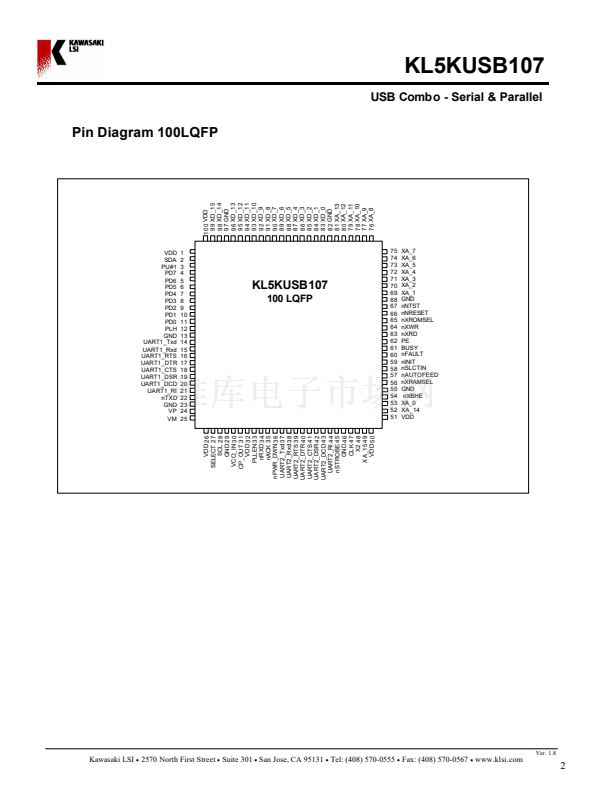

Single-chip solution in a 100 pin LQFP
Block Diagram
Watchdog
Timer
Channel 2
Channel 1
Serial
Interface
Serial
Interface
DTR
RTS
DCD
DSR
CTS
RI
Txd
Rxd
16 Bit Address / Data Bus
VP
VM
USB
Interface
Timer 1
16 Bit
Processor
Serial
Interface
Engine
Timer 0
CLK
X2
Txd
Rxd
PLL & Clock
Generator
RAM
(3KB)
IEEE1284
host
EEPROM
Serial
Interface
Debug
UART
Mask
ROM
IEEE1284
buffers
IEEE1284
parallel port
peripheral
SCL
SDA
Kawasaki LSI
鈥?/div>
2570 North First Street
鈥?/div>
Suite 301
鈥?/div>
San Jose, CA 95131
鈥?/div>
Tel: (408) 570-0555
鈥?/div>
Fax: (408) 570-0567
鈥?/div>
www.klsi.com
Ver. 1.8
1
