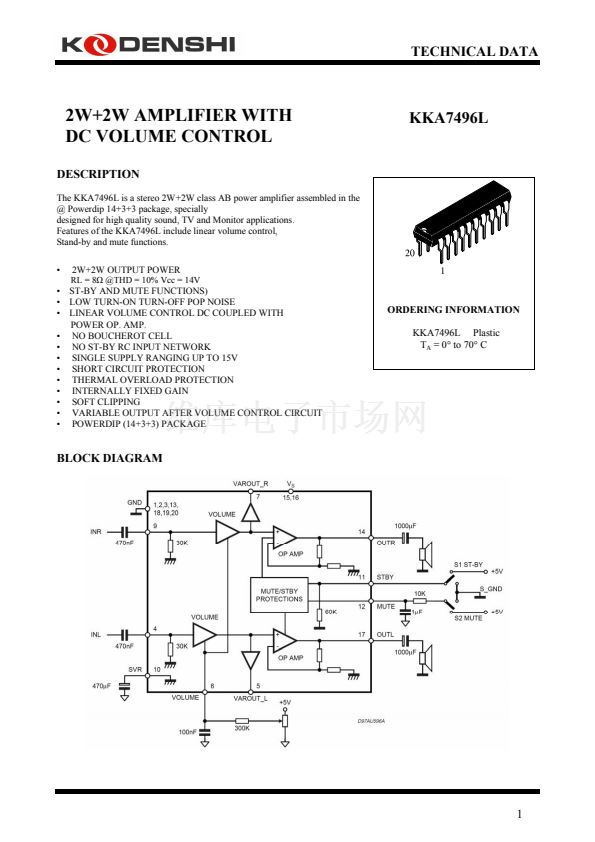

TECHNICAL DATA

2W+2W AMPLIFIER WITH

DC VOLUME CONTROL

DESCRIPTION

The

KKA7496L

is a stereo 2W+2W class AB power amplifier assembled in the

@ Powerdip 14+3+3 package, specially

designed for high quality sound, TV and Monitor applications.

Features of the

KKA7496L

include linear volume control,

Stand-by and mute functions.

鈥?/div>

2W+2W OUTPUT POWER

RL = 8鈩?@THD = 10% Vcc = 14V

KKA7496L

ST-BY AND MUTE FUNCTIONS

)

LOW TURN-ON TURN-OFF POP NOISE

LINEAR VOLUME CONTROL DC COUPLED WITH

POWER OP. AMP.

NO BOUCHEROT CELL

NO ST-BY RC INPUT NETWORK

SINGLE SUPPLY RANGING UP TO 15V

SHORT CIRCUIT PROTECTION

THERMAL OVERLOAD PROTECTION

INTERNALLY FIXED GAIN

SOFT CLIPPING

VARIABLE OUTPUT AFTER VOLUME CONTROL CIRCUIT

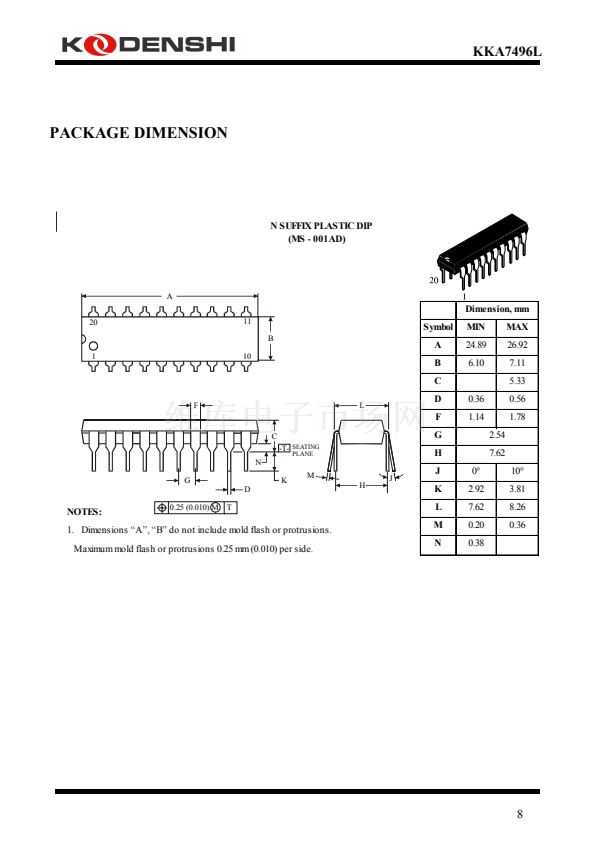

POWERDIP (14+3+3) PACKAGE

ORDERING INFORMATION

KKA7496L

Plastic

T

A

= 0擄 to 70擄 C

BLOCK DIAGRAM
