KF3004-GF11A Datasheet

  • KF3004-GF11A

  • Compact low voltage thick film thermal printhead (12dots / m...

  • 5頁

  • ROHM

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

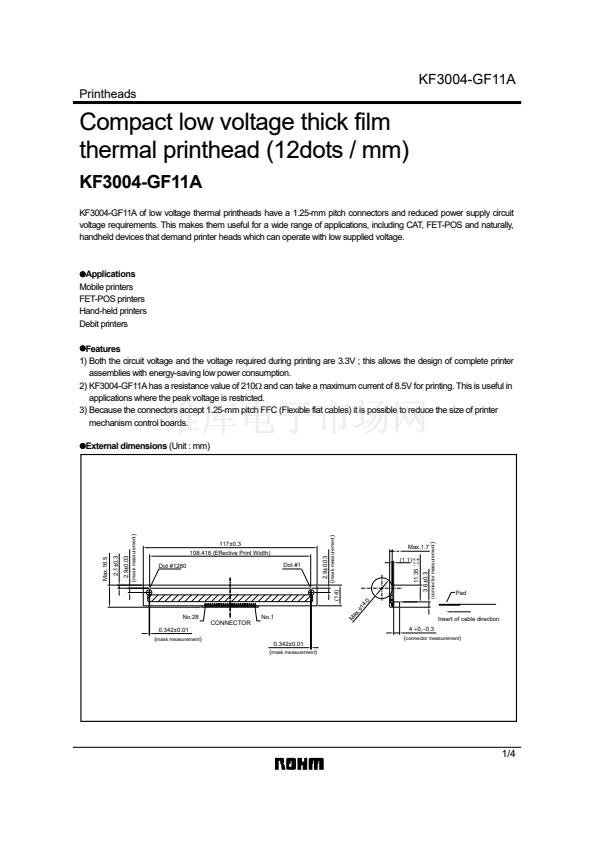

KF3004-GF11A
Printheads
Compact low voltage thick film
thermal printhead (12dots / mm)
KF3004-GF11A
KF3004-GF11A of low voltage thermal printheads have a 1.25-mm pitch connectors and reduced power supply circuit
voltage requirements. This makes them useful for a wide range of applications, including CAT, FET-POS and naturally,
handheld devices that demand printer heads which can operate with low supplied voltage.
Applications
Mobile printers
FET-POS printers
Hand-held printers
Debit printers
Features
1) Both the circuit voltage and the voltage required during printing are 3.3V ; this allows the design of complete printer
assemblies with energy-saving low power consumption.
2) KF3004-GF11A has a resistance value of 210鈩?and can take a maximum current of 8.5V for printing. This is useful in
applications where the peak voltage is restricted.
3) Because the connectors accept 1.25-mm pitch FFC (Flexible flat cables) it is possible to reduce the size of printer
mechanism control boards.
External dimensions
(Unit : mm)
2.9鹵0.03
(
mask measurement
)
Max.1.7
+0.70
鈭?.40
(1.1)
11.35
Dot #1280
Dot #1
(14)
(connector measurement
)
Max.16.5
2.1鹵0.3
117鹵0.3
108.416 (Effective Print Width)
2.9鹵0.03
(
mask measurement
)
3.6鹵0.3
Pad
CONNECTOR
0.342鹵0.01
(
mask measurement
)
M
No.28
No.1
ax
.
蠁
14
.0
Insert of cable direction
4
+0,鈭?.3
(
connector measurement
)
0.342鹵0.01
(
mask measurement
)
1/4
