KF2002-GL50A
Printheads
Thick film thermal printhead
(8 dots / mm)
KF2002-GL50A
The KF2002-GL50A is a 24 V standard thick film thermal printhead with a printing speed up to 6 inches / s that has been
developed mainly for label printer use.
Applications
High speed label printer
High speed bar code printer
High speed ticket printer
Various high speed terminal printers
Features
1) Newly developed thick-film fast response thermal element is employed for this series and 6 inches / s or 150 mm / s is
possible without thermal history control. It is possible to print 10 inches / s or 250 mm / s if external thermal history
control is used.
2) 150km life realized for GL50 by attributing durable new protection film.
3) New partial glaze construction makes it compatible with the thermal transfer application.
4) Market-proven G-series printhead construction ensures high reliability.

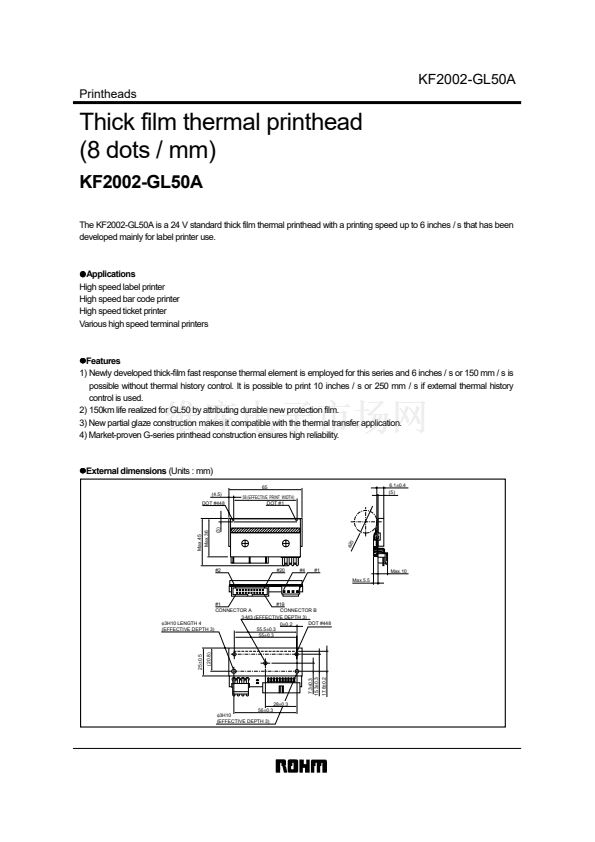

External dimensions
(Units : mm)
65
(4.5)
DOT #448
56 (EFFECTIVE PRINT WIDTH)
DOT #1
6.1鹵0.4
(5)
Max.45
Max.36
(3)
#2
#20
#4
#1
Max.5.5
蠁
20
Max.10
#19
#1
CONNECTOR A
CONNECTOR B
3-M3 (EFFECTIVE DEPTH 3)
蠁3H10
LENGTH 4
DOT #448
0鹵0.2
(EFFECTIVE DEPTH 3)
55.5鹵0.3
55鹵0.3
25鹵0.5
(20.8)
7.3鹵0.3
15.3鹵0.3
28鹵0.3
蠁3H10
(EFFECTIVE DEPTH 3)
56鹵0.3
17.8鹵0.2
1
2
3
4
