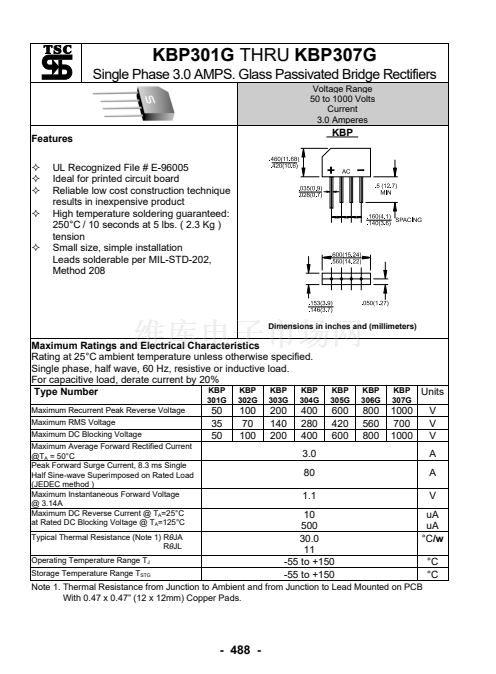

KBP301G
THRU
KBP307G
Single Phase 3.0 AMPS. Glass Passivated Bridge Rectifiers
Voltage Range
50 to 1000 Volts
Current
3.0 Amperes
Features
a
a
a
a
a
UL Recognized File # E-96005
Ideal for printed circuit board
Reliable low cost construction technique
results in inexpensive product
High temperature soldering guaranteed:
250擄C / 10 seconds at 5 lbs. ( 2.3 Kg )
tension
Small size, simple installation
Leads solderable per MIL-STD-202,
Method 208
KBP
Dimensions in inches and (millimeters)
Maximum Ratings and Electrical Characteristics
Rating at 25擄C ambient temperature unless otherwise specified.
Single phase, half wave, 60 Hz, resistive or inductive load.
For capacitive load, derate current by 20%
KBP
KBP
KBP
KBP
Type Number
301G
302G
303G
Maximum Recurrent Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Rectified Current
@T
A
= 50擄C
Peak Forward Surge Current, 8.3 ms Single
Half Sine-wave Superimposed on Rated Load
(JEDEC method )
Maximum Instantaneous Forward Voltage
@ 3.14A
Maximum DC Reverse Current @ T
A
=25擄C
at Rated DC Blocking Voltage @ T
A
=125擄C
Typical Thermal Resistance (Note 1) R脹JA
Typical Thermal Resistance (Note 1)
R脹JL
Operating Temperature Range T
J
Storage Temperature Range T
STG
304G
KBP
305G
KBP
306G
KBP
307G
Units
V
V
V
A
A
V
uA
uA
擄C/w
擄C
擄C
50
35
50
100
70
100
200
140
200
400
280
400
3.0
80
1.1
600
420
600
800
560
800
1000
700
1000
10
500
30.0
11
-55 to +150
-55 to +150
Note 1. Thermal Resistance from Junction to Ambient and from Junction to Lead Mounted on PCB
Note 1.
With 0.47 x 0.47鈥?(12 x 12mm) Copper Pads.
