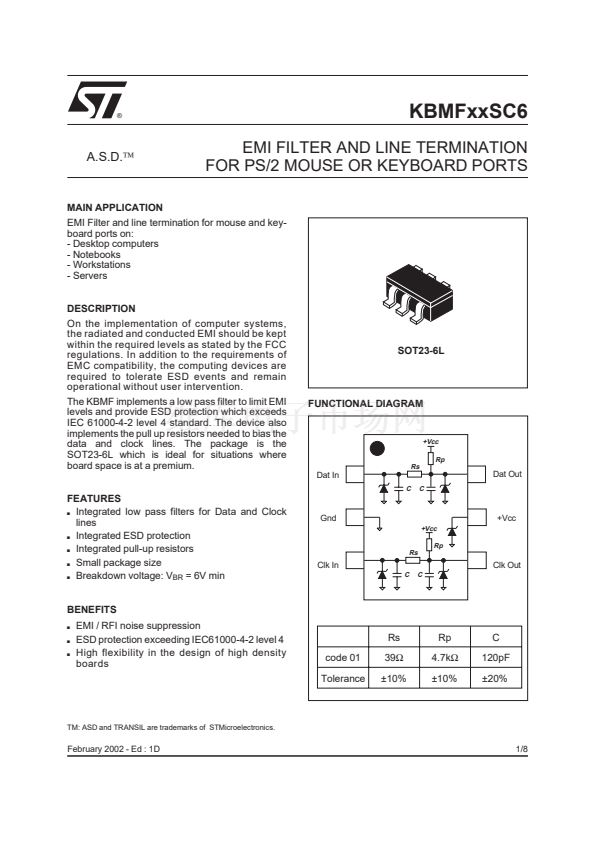

KBMFxxSC6

EMI FILTER AND LINE TERMINATION

FOR PS/2 MOUSE OR KEYBOARD PORTS

A.S.D.鈩?/div>

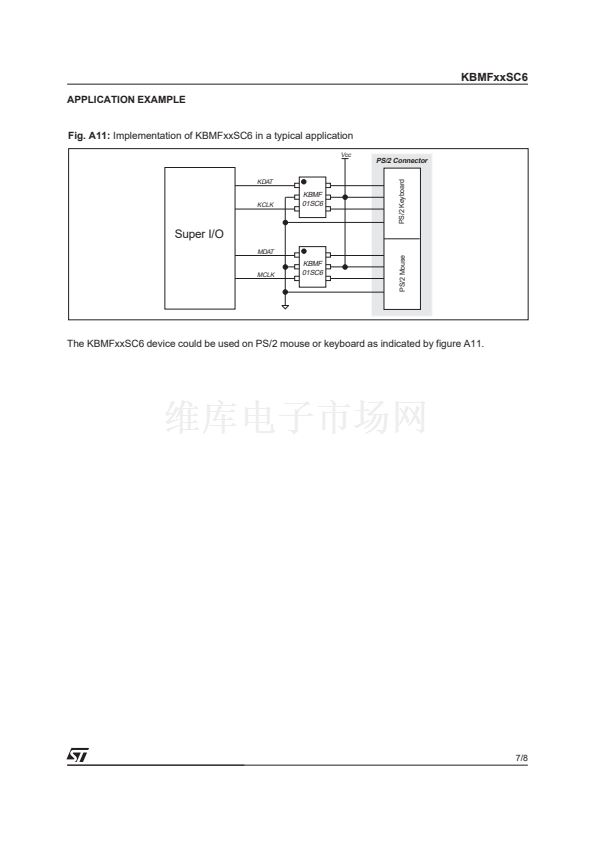

MAIN APPLICATION

EMI Filter and line termination for mouse and key-

board ports on:

- Desktop computers

- Notebooks

- Workstations

- Servers

DESCRIPTION

On the implementation of computer systems,

the radiated and conducted EMI should be kept

within the required levels as stated by the FCC

regulations. In addition to the requirements of

EMC compatibility, the computing devices are

required to tolerate ESD events and remain

operational without user intervention.

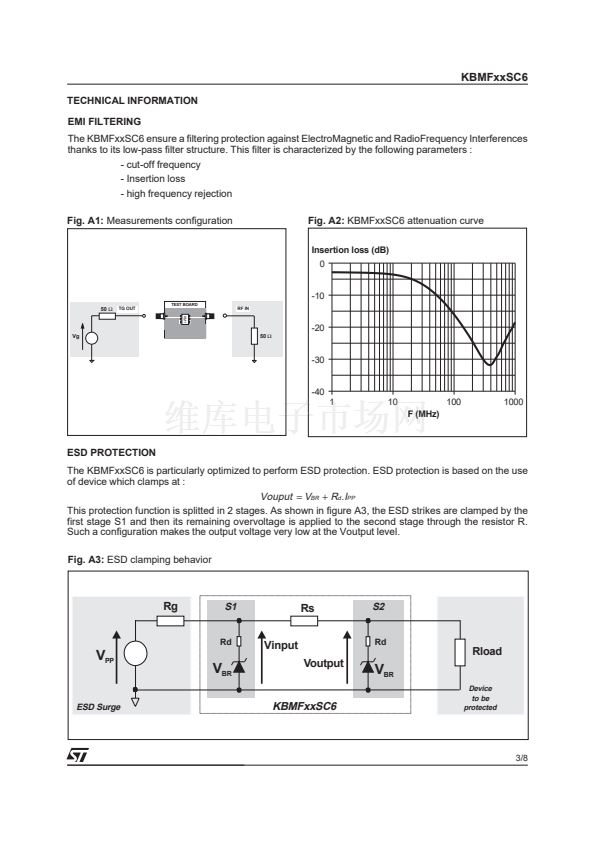

The KBMF implements a low pass filter to limit EMI

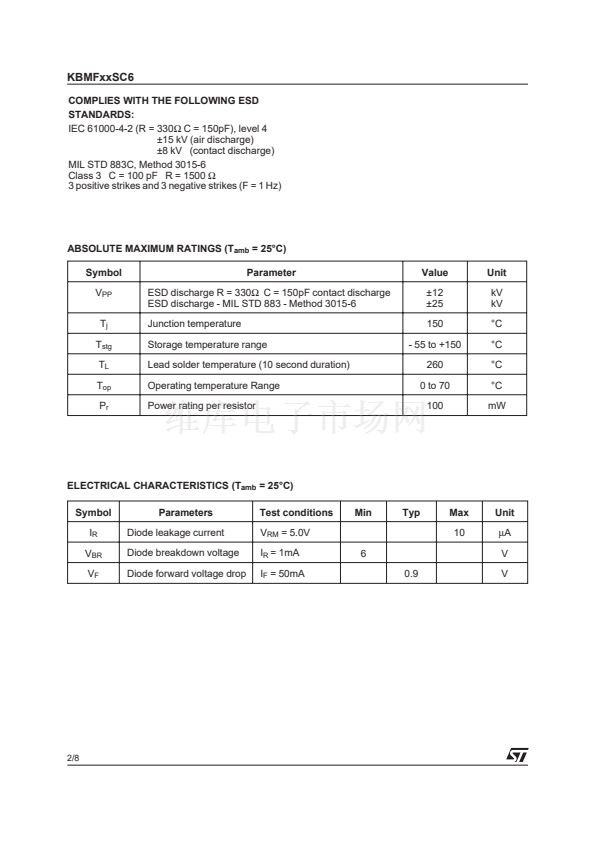

levels and provide ESD protection which exceeds

IEC 61000-4-2 level 4 standard. The device also

implements the pull up resistors needed to bias the

data and clock lines. The package is the

SOT23-6L which is ideal for situations where

board space is at a premium.

FEATURES

Integrated low pass filters for Data and Clock

lines

Integrated ESD protection

Integrated pull-up resistors

Small package size

Breakdown voltage: V

= 6V min

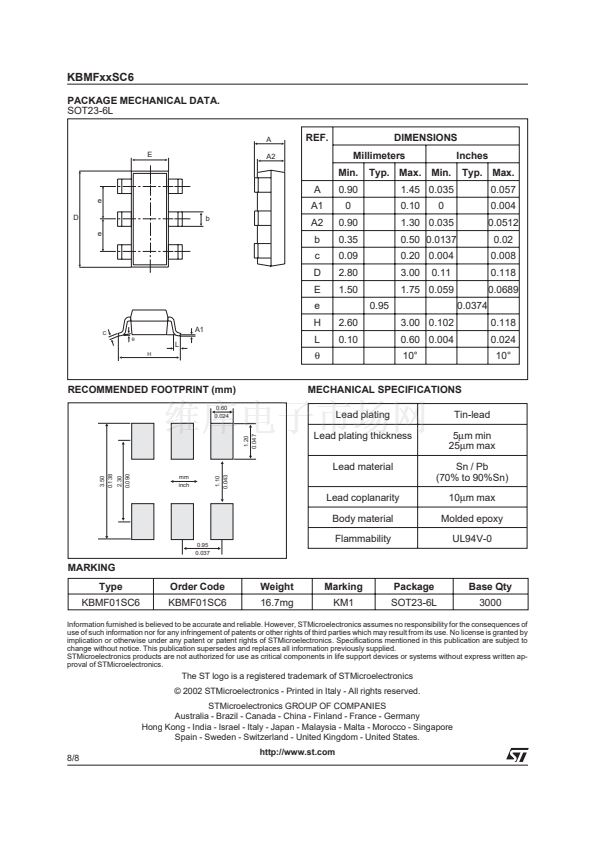

SOT23-6L

FUNCTIONAL DIAGRAM

+Vcc

Dat In

Dat Out

Gnd

+Vcc

Clk In

Clk Out

BENEFITS

EMI / RFI noise suppression

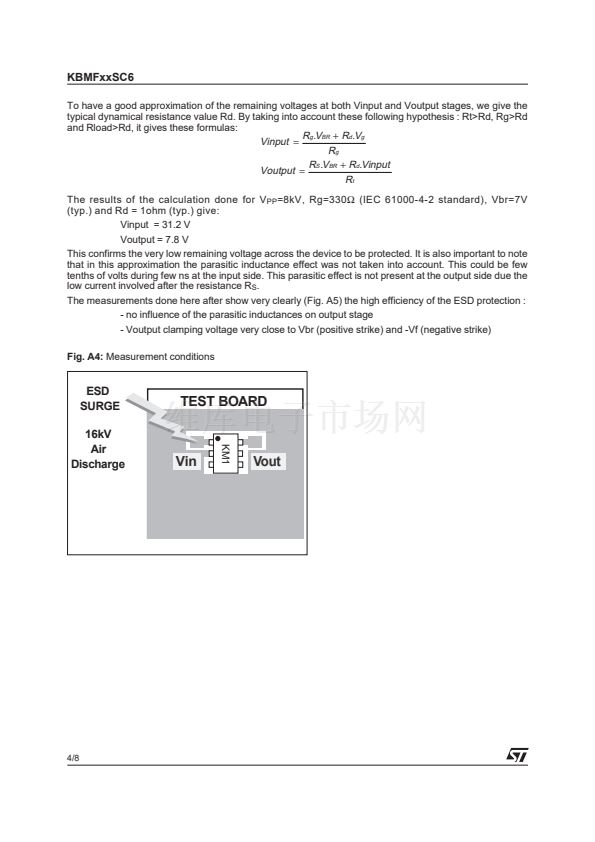

ESD protection exceeding IEC61000-4-2 level 4

High flexibility in the design of high density

boards

code 01

Tolerance

39鈩?/div>

鹵10%

4.7k鈩?/div>

鹵10%

120pF

鹵20%

TM: ASD and TRANSIL are trademarks of STMicroelectronics.

February 2002 - Ed : 1D

1/8
