K9F6408U0A-TCB0 Datasheet

  • K9F6408U0A-TCB0

  • 8M x 8 Bit NAND Flash Memory

  • 26頁

  • SAMSUNG   SAMSUNG

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

K9F6408U0A-TCB0, K9F6408U0A-TIB0

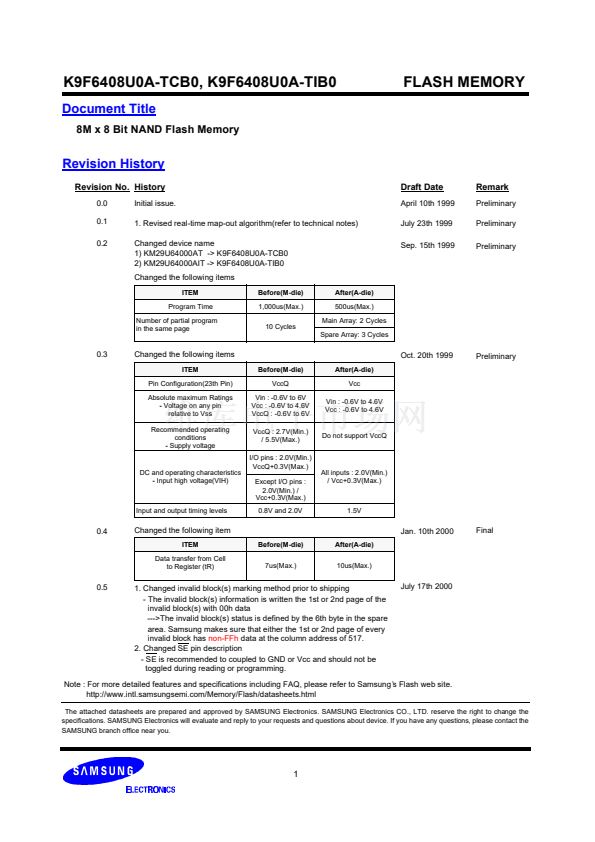

Document Title
8M x 8 Bit NAND Flash Memory
FLASH MEMORY
Revision History
Revision No. History
0.0
0.1
0.2
Initial issue.
1. Revised real-time map-out algorithm(refer to technical notes)
Changed device name
1) KM29U64000AT -> K9F6408U0A-TCB0
2) KM29U64000AIT -> K9F6408U0A-TIB0
Changed the following items
ITEM
Program Time
Number of partial program
in the same page
Before(M-die)
1,000us(Max.)
10 Cycles
After(A-die)
500us(Max.)
Main Array: 2 Cycles
Spare Array: 3 Cycles
Draft Date
April 10th 1999
July 23th 1999
Sep. 15th 1999
Remark
Preliminary
Preliminary
Preliminary
0.3
Changed the following items
ITEM
Pin Configuration(23th Pin)

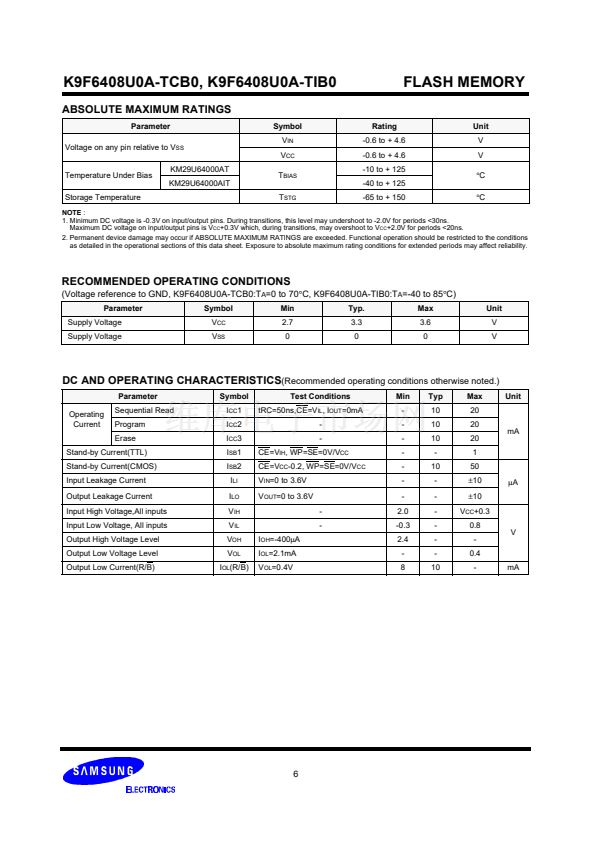

Absolute maximum Ratings
-
Voltage on any pin
relative to Vss
Recommended operating
conditions
-
Supply voltage
Before(M-die)
VccQ
Vin : -0.6V to 6V
Vcc : -0.6V to 4.6V
VccQ : -0.6V to 6V
VccQ : 2.7V(Min.)
/ 5.5V(Max.)
I/O pins : 2.0V(Min.)
VccQ+0.3V(Max.)
Except I/O pins :
2.0V(Min.) /
Vcc+0.3V(Max.)
0.8V and 2.0V
After(A-die)
Vcc
Vin : -0.6V to 4.6V
Vcc : -0.6V to 4.6V
Oct. 20th 1999
Preliminary
Do not support VccQ
DC and operating characteristics
-
Input high voltage(VIH)
All inputs : 2.0V(Min.)
/ Vcc+0.3V(Max.)
Input and output timing levels
1.5V
0.4
Changed the following item
ITEM
Data transfer from Cell
to Register (tR)
Before(M-die)
7us(Max.)
After(A-die)
10us(Max.)
Jan. 10th 2000
Final
0.5
1. Changed invalid block(s) marking method prior to shipping
- The invalid block(s) information is written the 1st or 2nd page of the
invalid block(s) with 00h data
--->The invalid block(s) status is defined by the 6th byte in the spare
area. Samsung makes sure that either the 1st or 2nd page of every
invalid block has
non-FFh
data at the column address of 517.

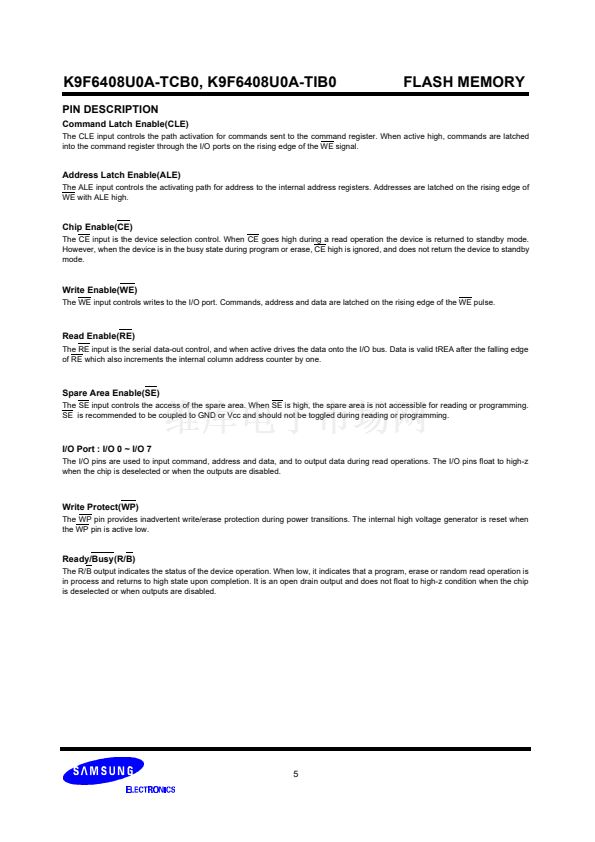

2. Changed SE pin description
- SE is recommended to coupled to GND or Vcc and should not be
toggled during reading or programming.
July 17th 2000
Note : For more detailed features and specifications including FAQ, please refer to Samsung鈥?Flash web site.
s
http://www.intl.samsungsemi.com/Memory/Flash/datasheets.html
The attached datasheets are prepared and approved by SAMSUNG Electronics. SAMSUNG Electronics CO., LTD. reserve the right to change the
specifications. SAMSUNG Electronics will evaluate and reply to your requests and questions about device. If you have any questions, please contact the
SAMSUNG branch office near you.
1
