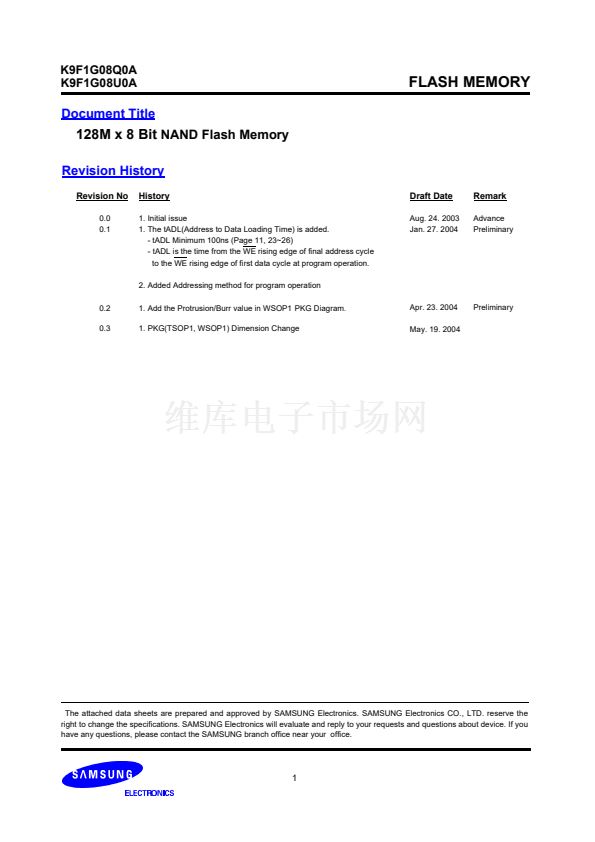

K9F1G08Q0A

K9F1G08U0A

FLASH MEMORY

Document Title

128M x 8 Bit

NAND Flash Memory

Revision History

Revision No

0.0

0.1

History

1. Initial issue

1. The tADL(Address to Data Loading Time) is added.

- tADL Minimum 100ns (Page 11, 23~26)

- tADL is the time from the WE rising edge of final address cycle

to the WE rising edge of first data cycle at program operation.

2. Added Addressing method for program operation

Draft Date

Aug. 24. 2003

Jan. 27. 2004

Remark

Advance

Preliminary

0.2

0.3

1. Add the Protrusion/Burr value in WSOP1 PKG Diagram.

1. PKG(TSOP1, WSOP1) Dimension Change

Apr. 23. 2004

May. 19. 2004

Preliminary

The attached data sheets are prepared and approved by SAMSUNG Electronics. SAMSUNG Electronics CO., LTD. reserve the

right to change the specifications. SAMSUNG Electronics will evaluate and reply to your requests and questions about device. If you

have any questions, please contact the SAMSUNG branch office near your office.

1
