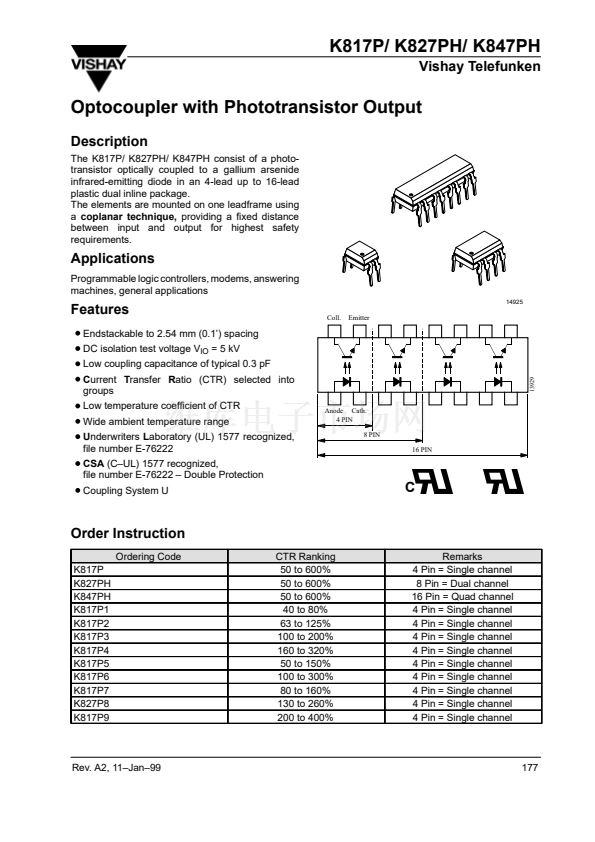

K817P/ K827PH/ K847PH

Vishay Telefunken

Optocoupler with Phototransistor Output

Description

The K817P/ K827PH/ K847PH consist of a photo-

transistor optically coupled to a gallium arsenide

infrared-emitting diode in an 4-lead up to 16-lead

plastic dual inline package.

The elements are mounted on one leadframe using

a

coplanar technique,

providing a fixed distance

between input and output for highest safety

requirements.

Applications

Programmable logic controllers, modems, answering

machines, general applications

14925

Features

D

Endstackable to 2.54 mm (0.1鈥? spacing

D

DC isolation test voltage V

IO

= 5 kV

D

Low coupling capacitance of typical 0.3 pF

D

Current Transfer Ratio

(CTR) selected into

groups

Coll.

Emitter

D

Low temperature coefficient of CTR

D

Wide ambient temperature range

D

Underwriters Laboratory

(UL) 1577 recognized,

file number E-76222

Anode Cath.

4 PIN

8 PIN

16 PIN

D

CSA

(C鈥揢L) 1577 recognized,

file number E-76222 鈥?Double Protection

D

Coupling System U

C

Order Instruction

Ordering Code

K817P

K827PH

K847PH

K817P1

K817P2

K817P3

K817P4

K817P5

K817P6

K817P7

K827P8

K817P9

CTR Ranking

50 to 600%

50 to 600%

50 to 600%

40 to 80%

63 to 125%

100 to 200%

160 to 320%

50 to 150%

100 to 300%

80 to 160%

130 to 260%

200 to 400%

Remarks

4 Pin = Single channel

8 Pin = Dual channel

16 Pin = Quad channel

4 Pin = Single channel

4 Pin = Single channel

4 Pin = Single channel

4 Pin = Single channel

4 Pin = Single channel

4 Pin = Single channel

4 Pin = Single channel

4 Pin = Single channel

4 Pin = Single channel

Rev. A2, 11鈥揓an鈥?9

177

13929
