MICROCIRCUIT DATA SHEET

MJCD4049A-X REV 1A0

INVERTING HEX BUFFER

General Description

This hex buffer is a monolithic complementary MOS (CMOS) integrated circuit constructed

with N- and P- channel enhancement mode transistors. This device features logic level

conversion using only one supply voltage (VDD). The input signal high level (VIH) can

exceed the VDD supply voltage when the device is used for logic conversion. The device is

intended for use as a hex buffer, CMOS to DTL/TTL converter or as a CMOS current driver,

and at VDD = 5.0V, it can drive two DTL/TTL loads over the full operating temperature

range.

Original Creation Date: 07/22/99

Last Update Date: 10/18/99

Last Major Revision Date: 09/10/99

Industry Part Number

CD4049A

NS Part Numbers

JM4049ABEA

JM4049ABFA

Prime Die

CD4049A

Controlling Document

38510/05503, amend. #3

Processing

MIL-STD-883, Method 5004

Subgrp Description

1

2

3

4

5

6

7

8A

8B

9

10

11

Static tests at

Static tests at

Static tests at

Dynamic tests at

Dynamic tests at

Dynamic tests at

Functional tests at

Functional tests at

Functional tests at

Switching tests at

Switching tests at

Switching tests at

Temp (

o

C)

+25

+125

-55

+25

+125

-55

+25

+125

-55

+25

+125

-55

Quality Conformance Inspection

MIL-STD-883, Method 5005

1

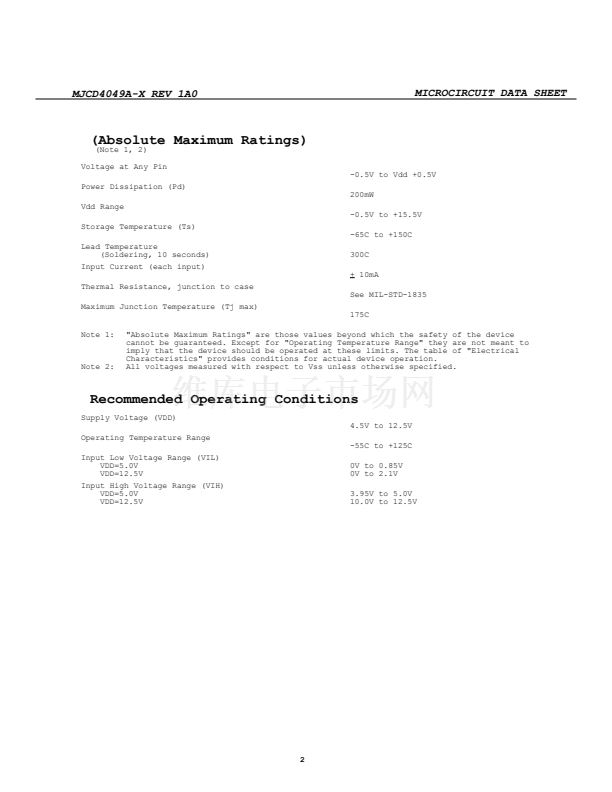

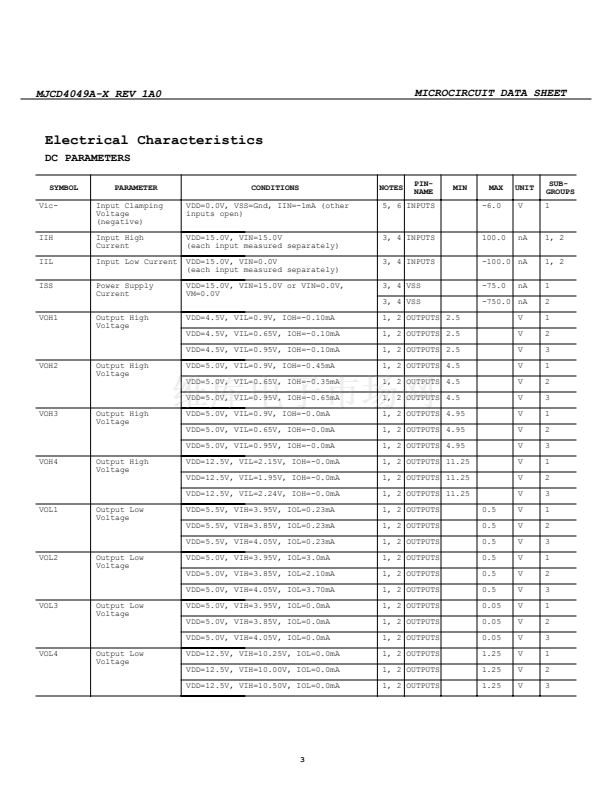

next
