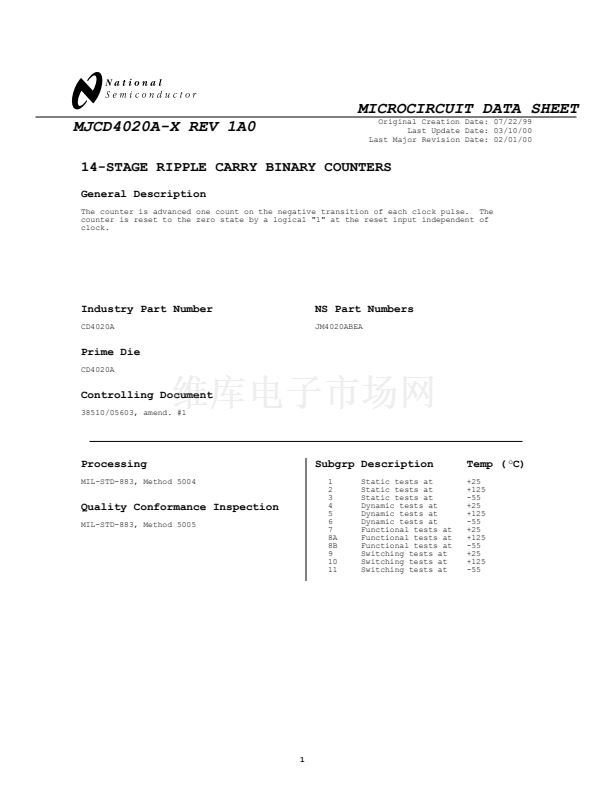

MICROCIRCUIT DATA SHEET

MJCD4020A-X REV 1A0

Original Creation Date: 07/22/99

Last Update Date: 03/10/00

Last Major Revision Date: 02/01/00

14-STAGE RIPPLE CARRY BINARY COUNTERS

General Description

The counter is advanced one count on the negative transition of each clock pulse. The

counter is reset to the zero state by a logical "1" at the reset input independent of

clock.

Industry Part Number

CD4020A

NS Part Numbers

JM4020ABEA

Prime Die

CD4020A

Controlling Document

38510/05603, amend. #1

Processing

MIL-STD-883, Method 5004

Subgrp Description

1

2

3

4

5

6

7

8A

8B

9

10

11

Static tests at

Static tests at

Static tests at

Dynamic tests at

Dynamic tests at

Dynamic tests at

Functional tests at

Functional tests at

Functional tests at

Switching tests at

Switching tests at

Switching tests at

Temp (

o

C)

+25

+125

-55

+25

+125

-55

+25

+125

-55

+25

+125

-55

Quality Conformance Inspection

MIL-STD-883, Method 5005

1

next
