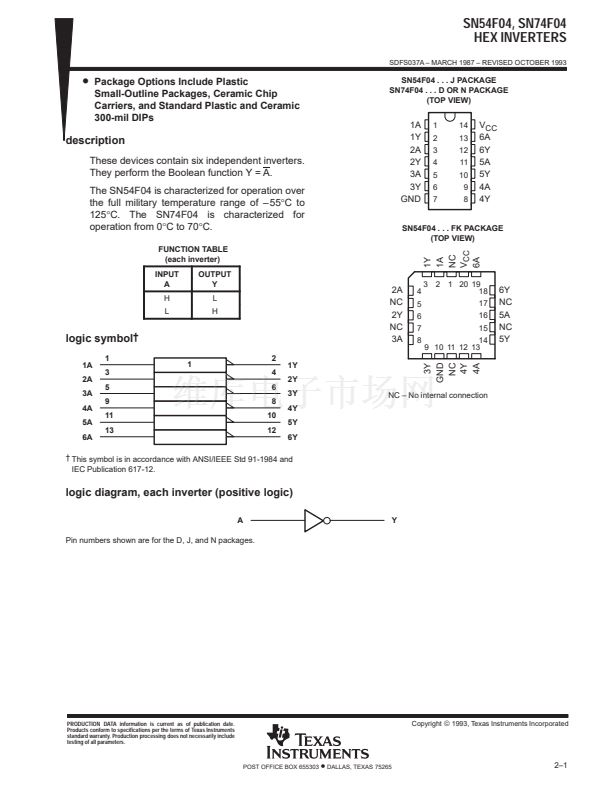

SN54F04, SN74F04
HEX INVERTERS
SDFS037A 鈥?MARCH 1987 鈥?REVISED OCTOBER 1993
鈥?/div>
Package Options Include Plastic
Small-Outline Packages, Ceramic Chip
Carriers, and Standard Plastic and Ceramic
300-mil DIPs
SN54F04 . . . J PACKAGE
SN74F04 . . . D OR N PACKAGE
(TOP VIEW)
description
These devices contain six independent inverters.
They perform the Boolean function Y = A.
The SN54F04 is characterized for operation over
the full military temperature range of 鈥?55擄C to
125擄C. The SN74F04 is characterized for
operation from 0擄C to 70擄C.
FUNCTION TABLE
(each inverter)
INPUT
A
H
L
OUTPUT
Y
L
H
1A
1Y
2A
2Y
3A
3Y
GND
1
2
3
4
5
6
7
14
13
12
11
10
9
8
V
CC
6A
6Y
5A
5Y
4A
4Y
SN54F04 . . . FK PACKAGE
(TOP VIEW)
logic symbol
鈥?/div>
1A
2A
3A
4A
5A
6A
1
3
5
9
11
13
1
2
4
6
8
10
12
1Y
2Y
3Y
4Y
5Y
6Y
2A
NC
2Y
NC
3A
4
5
6
7
8
3 2 1 20 19
18
17
16
15
14
9 10 11 12 13
1Y
1A
NC
V
CC
6A
6Y
NC
5A
NC
5Y
NC 鈥?No internal connection
A
Y
Copyright
漏
1993, Texas Instruments Incorporated
鈥?This symbol is in accordance with ANSI/IEEE Std 91-1984 and
IEC Publication 617-12.
logic diagram, each inverter (positive logic)
Pin numbers shown are for the D, J, and N packages.
PRODUCTION DATA information is current as of publication date.
Products conform to specifications per the terms of Texas Instruments
standard warranty. Production processing does not necessarily include
testing of all parameters.
POST OFFICE BOX 655303
鈥?/div>
DALLAS, TEXAS 75265
3Y
GND
NC
4Y
4A
2鈥?
