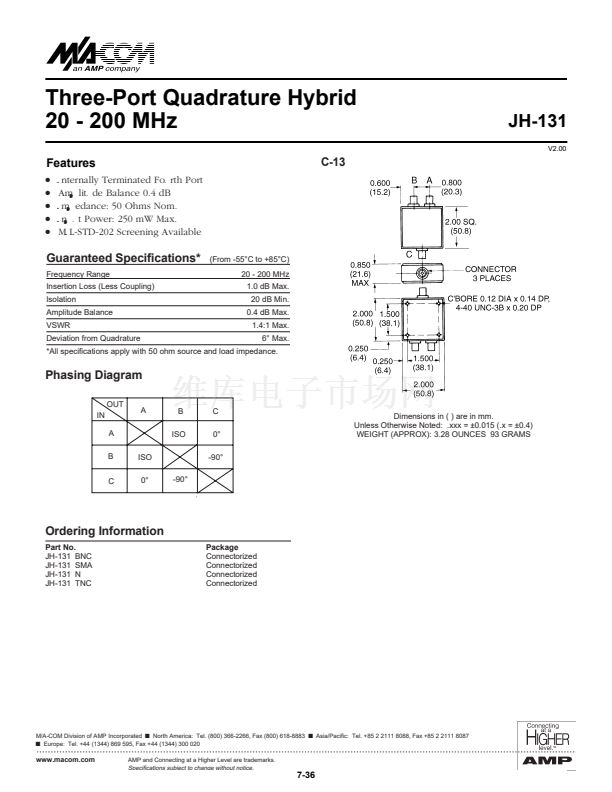

Three-Port Quadrature Hybrid
20 - 200 MHz
Features
q
q
q
q
q
JH-131
V2.00
C-13
Internally Terminated Fourth Port
Amplitude Balance 0.4 dB
Impedance: 50 Ohms Nom.
Input Power: 250 mW Max.
MIL-STD-202 Screening Available
(From -55擄C to +85擄C)
20 - 200 MHz
1.0 dB Max.
20 dB Min.
0.4 dB Max.
1.4:1 Max.
6擄 Max.
Guaranteed Speci鏗乧ations*
Frequency Range
Insertion Loss (Less Coupling)
Isolation
Amplitude Balance
VSWR
Deviation from Quadrature
*All speci鏗乧ations apply with 50 ohm source and load impedance.
Phasing Diagram
OUT
IN
A
B
C
ISO
0擄
90擄
-90擄
0擄
A
B
ISO
C
0擄
90擄
-90擄
0擄
Dimensions in ( ) are in mm.
Unless Otherwise Noted: .xxx = 鹵0.015 (.x = 鹵0.4)
WEIGHT (APPROX): 3.28 OUNCES 93 GRAMS
Ordering Information
Part No.
JH-131 BNC
JH-131 SMA
JH-131 N
JH-131 TNC
Package
Connectorized
Connectorized
Connectorized
Connectorized
M/A-COM Division of AMP Incorporated
s
North America: Tel. (800) 366-2266, Fax (800) 618-8883
s
Asia/Paci鏗乧: Tel. +85 2 2111 8088, Fax +85 2 2111 8087
s
Europe: Tel. +44 (1344) 869 595, Fax +44 (1344) 300 020
www.macom.com
AMP and Connecting at a Higher Level are trademarks.
Speci鏗乧ations subject to change without notice.
7-36
