JANTXV2N6794 Datasheet

  • JANTXV2N6794

  • POWER MOSFET N-CHANNEL(BVdss=500V, Rds(on)=3.0ohm, Id=1.5A)

  • 6頁

  • IRF

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

Previous Datasheet
Index
Next Data Sheet

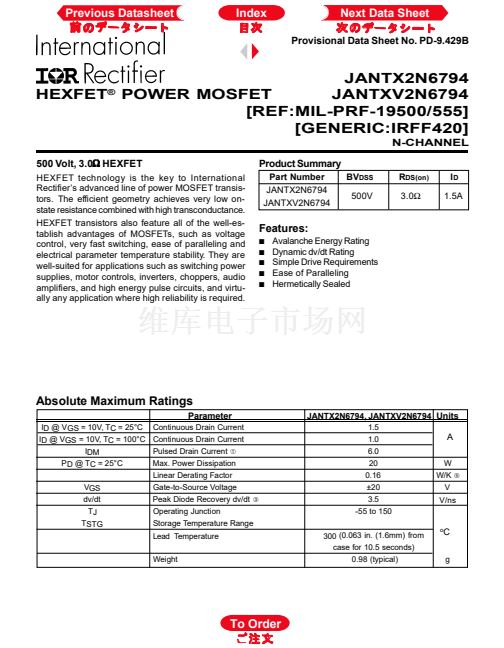

Provisional Data Sheet No. PD-9.429B
HEXFET
廬
JANTX2N6794
POWER MOSFET
JANTXV2N6794
[REF:MIL-PRF-19500/555]
[GENERIC:IRFF420]
N-CHANNEL
Product Summary
Part Number
JANTX2N6794
JANTXV2N6794
BV
DSS
500V
R
DS(on)
3.0鈩?/div>
I
D
1.5A
500 Volt, 3.0鈩?HEXFET
鈩?/div>
HEXFET technology is the key to International
Rectifier鈥檚 advanced line of power MOSFET transis-
tors. The efficient geometry achieves very low on-
state resistance combined with high transconductance.
HEXFET transistors also feature all of the well-es-
tablish advantages of MOSFETs, such as voltage
control, very fast switching, ease of paralleling and
electrical parameter temperature stability. They are
well-suited for applications such as switching power
supplies, motor controls, inverters, choppers, audio
amplifiers, and high energy pulse circuits, and virtu-
ally any application where high reliability is required.
Features:
s
s
s
s
s
Avalanche Energy Rating
Dynamic dv/dt Rating
Simple Drive Requirements
Ease of Paralleling
Hermetically Sealed
Absolute Maximum Ratings
Parameter
ID @ V GS = 10V, TC = 25擄C Continuous Drain Current
I D @ VGS = 10V, TC = 100擄C Continuous Drain Current
IDM
Pulsed Drain Current
聦
PD @ TC = 25擄C
VGS
dv/dt
TJ
TSTG
Max. Power Dissipation
Linear Derating Factor
Gate-to-Source Voltage
Peak Diode Recovery dv/dt
聨
Operating Junction
Storage Temperature Range
Lead Temperature
Weight
JANTX2N6794, JANTXV2N6794
Units
1.5
1.0
6.0
20
0.16
鹵20
3.5
-55 to 150
300 (0.063 in. (1.6mm) from
case for 10.5 seconds)
0.98 (typical)
A
W
W/K
聬
V
V/ns
o
C
g
To Order
