INCH-POUND

The documentation process conversion

measures necessary to comply with this

revision shall be completed by 28 March 1998

MIL-PRF-19500/613A

28 December 1997

SUPERSEDING

MIL-S-19500/613

30 July 1993

PERFORMANCE SPECIFICATION SHEET

SEMICONDUCTOR DEVICE, TRANSISTOR, NPN, SILICON, POWER,

TYPE 2N7373, JAN, JANTX, JANTXV, AND JANS

This specification is approved for use by all Depart-

ments and Agencies of the Department of Defense.

1. SCOPE

1.1 Scope. This specification covers the performance requirements for NPN, silicon, power transistors for use in high-speed power

switching applications. Four levels of product assurance are provided as specified in MIL-PRF-19500.

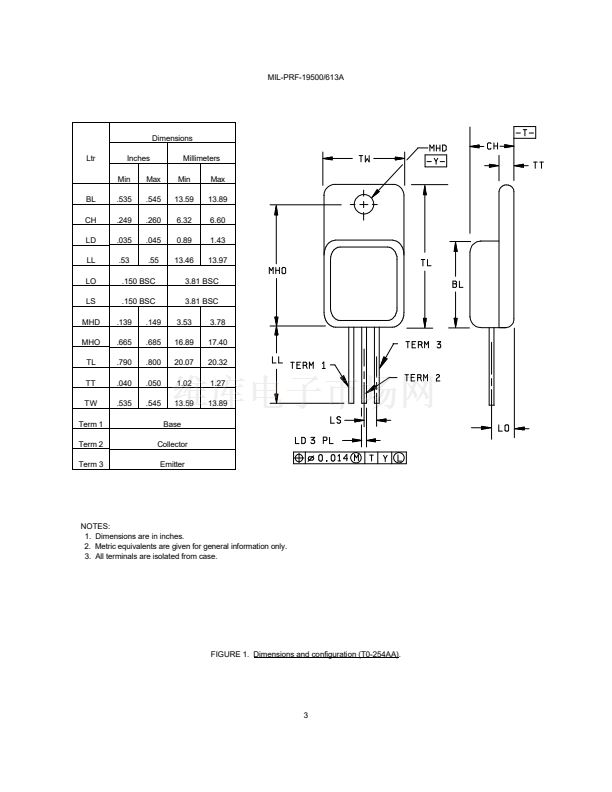

1.2 Physical dimensions. See figure 1 (TO-254AA).

1.3 Maximum ratings.

PT 1/

Type

TA = +25

PT 2/

TC = +25

VCBO

VCEO

VEBO

TJ and TSTG

V dc

A dc

2N7373

100

8.5

5.0

-65 to +200

Derate linearly 22.8 mW/

C for T

> +25

Derate linearly 331 mW/

C for T

> +25

This value applies for PW

8.3 ms, duty cycle

1%.

This rating is based on the capability of the transistors to operate safely in the unclamped inductive load energy test circuit of

figure 1.

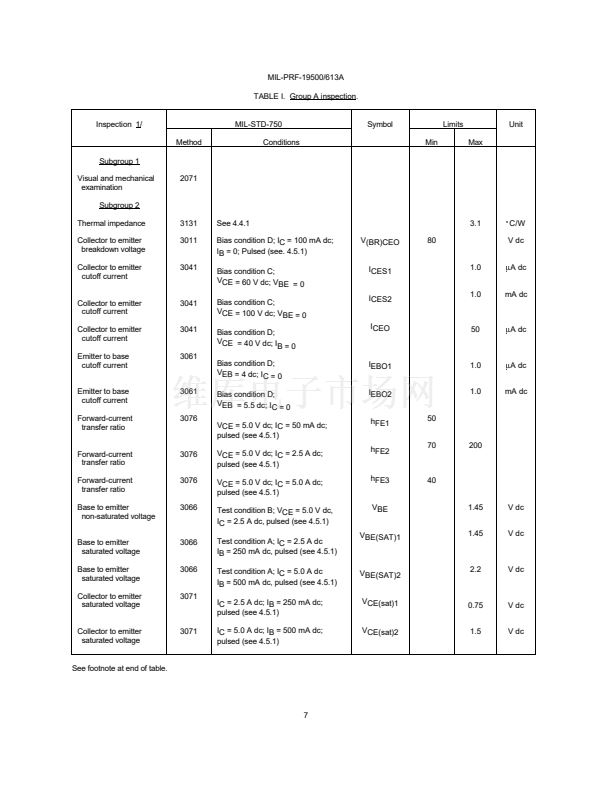

1.4 Primary electrical characteristics.

hFE2

|hfe|

VBE(SAT)2 1/

VCE(SAT)2 1/

Cobo

VCE = 5.0 V dc

IC = 2.5 A dc

VCE = 5.0 V dc

IC = 500 mA dc

f = 10 MHz

IC = 5.0 A dc

IB = 500 mA dc

IC = 5.0 A dc

IB = 500 mA dc

VCB = 10 V dc

IE = 0 A dc

f = 1 MHz

250

V dc

Min

Max

200

1/ Pulse (see 4.5.1).

7.0

2.2

V dc

1.5

C/W

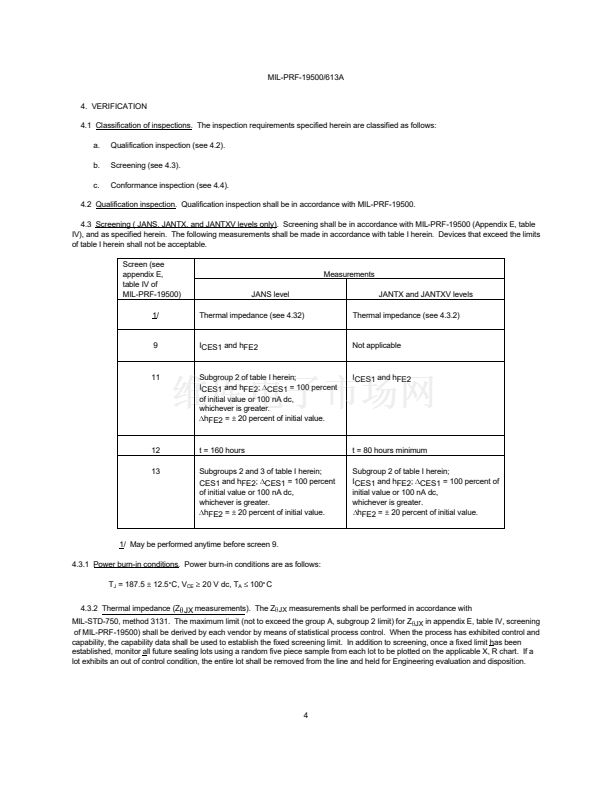

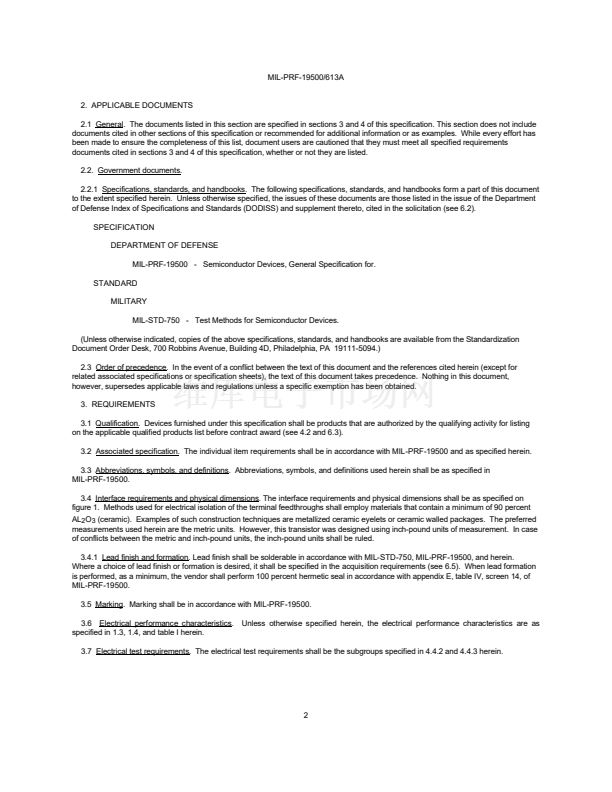

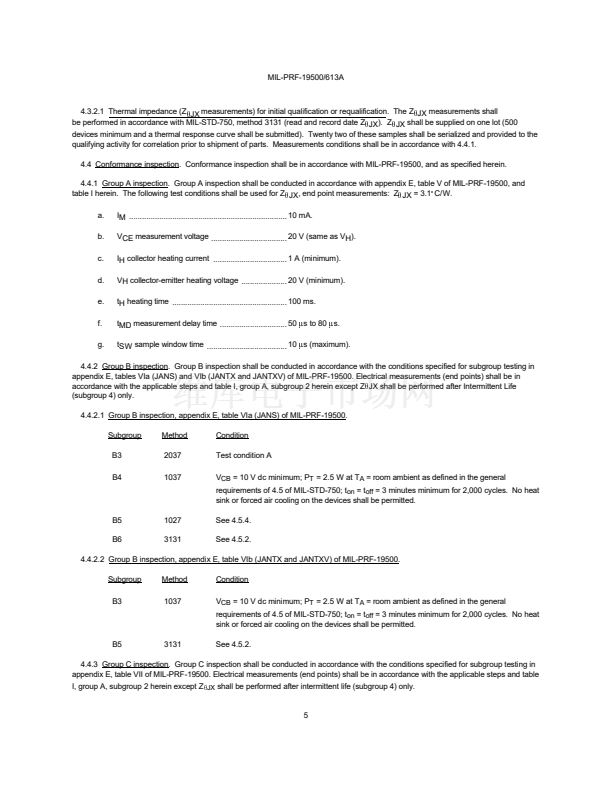

Beneficial comments (recommendations, additions, deletions) and any pertinent data which may be of use in improving this

document should be addressed to: Commander, Defense Supply Center Columbus, ATTN: DSCC-VAT, 3990 East Broad Street,

Columbus, OH 43216-5000, by using the Standardization Document Improvement Proposal (DD Form 1426) appearing at the end

of this document or by letter.

AMSC N/A

DISTRIBUTION STATEMENT A. Approved for public release; distribution is unlimited.

FSC 5961

現有數量
0現貨
價格
在售
系列
Military, MIL-PRF-19500/613
包裝
散裝
產品狀態
在售
晶體管類型
NPN
電流 - 集電極 (Ic)（最大值）
5 A
電壓 - 集射極擊穿（最大值）
80 V
不同?Ib、Ic 時?Vce 飽和壓降（最大值）
1.5V @ 500mA，5A
電流 - 集電極截止（最大值）
50μA
不同?Ic、Vce?時 DC 電流增益 (hFE)（最小值）
70 @ 2.5A，5V
功率 - 最大值
4 W
頻率 - 躍遷
-
工作溫度
-65°C ~ 200°C（TJ）
安裝類型
通孔
封裝/外殼
TO-254-3，TO-254AA（直引線）
供應商器件封裝
TO-254AA
