JAN2N6802 Datasheet

  • JAN2N6802

  • TRANSISTOR | MOSFET | N-CHANNEL | 500V V(BR)DSS | 3.5A I(D) ...

  • 23頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

The documentation and process
conversion measures necessary to
comply with this revision shall be
completed by 09 March 1998

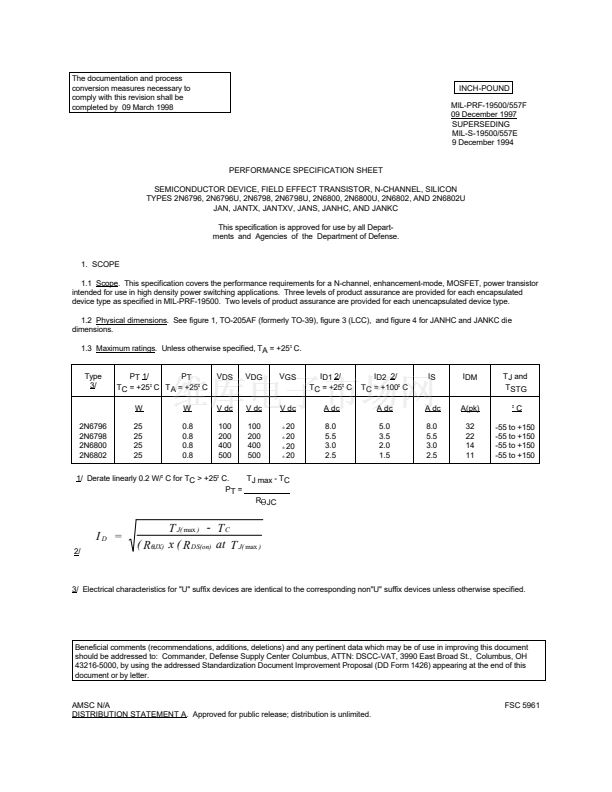

INCH-POUND
MIL-PRF-19500/557F
09 December 1997
SUPERSEDING
MIL-S-19500/557E
9 December 1994
PERFORMANCE SPECIFICATION SHEET
SEMICONDUCTOR DEVICE, FIELD EFFECT TRANSISTOR, N-CHANNEL, SILICON
TYPES 2N6796, 2N6796U, 2N6798, 2N6798U, 2N6800, 2N6800U, 2N6802, AND 2N6802U
JAN, JANTX, JANTXV, JANS, JANHC, AND JANKC
This specification is approved for use by all Depart-
ments and Agencies of the Department of Defense.
1. SCOPE
1.1 Scope. This specification covers the performance requirements for a N-channel, enhancement-mode, MOSFET, power transistor
intended for use in high density power switching applications. Three levels of product assurance are provided for each encapsulated
device type as specified in MIL-PRF-19500. Two levels of product assurance are provided for each unencapsulated device type.

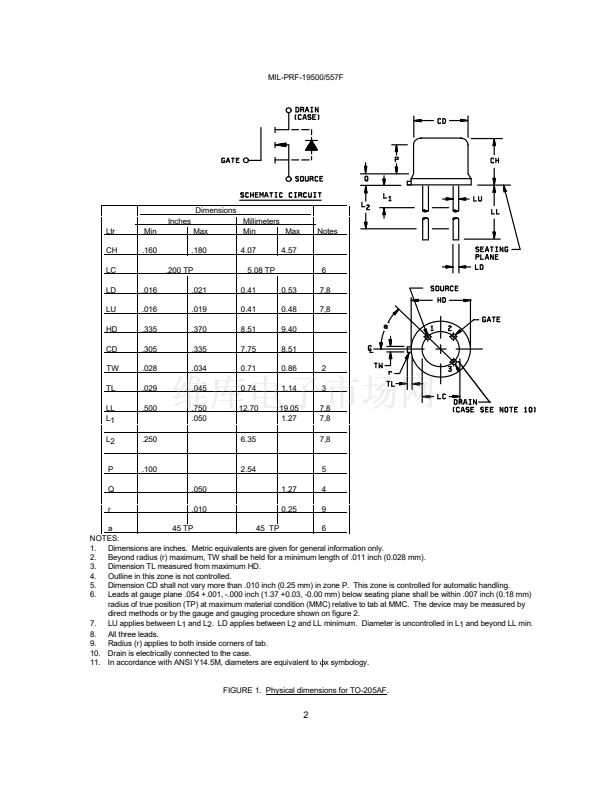

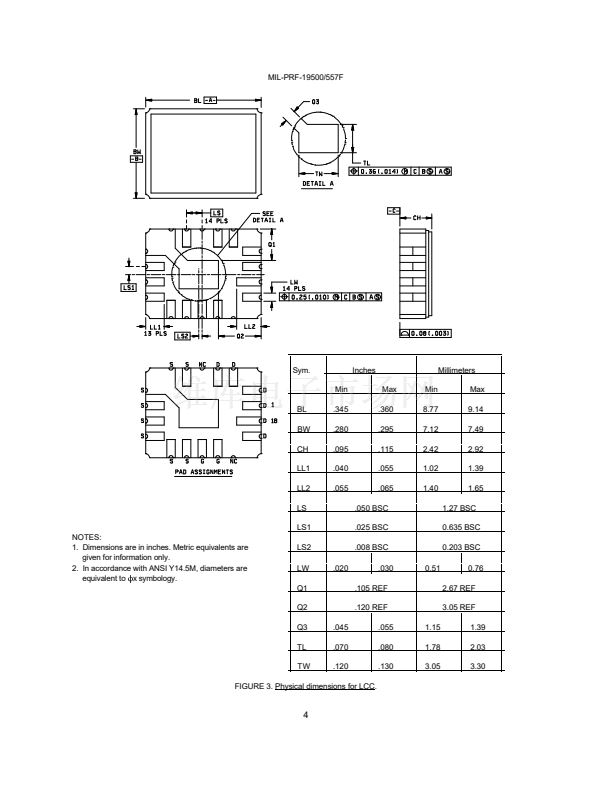

1.2 Physical dimensions. See figure 1, TO-205AF (formerly TO-39), figure 3 (LCC), and figure 4 for JANHC and JANKC die
dimensions.
1.3 Maximum ratings. Unless otherwise specified, TA = +25

C.
Type
3/
PT 1/
PT
TC = +25

C TA = +25

C
W
2N6796
2N6798
2N6800
2N6802
25
25
25
25
W
0.8
0.8
0.8
0.8
VDS
VDG
VGS
ID1 2/
TC = +25

C
A dc
8.0
5.5
3.0
2.5
ID2 2/
TC = +100

C
A dc
5.0
3.5
2.0
1.5
IS
IDM
TJ and
TSTG
V dc
100
200
400
500
V dc
100
200
400
500
V dc
A dc
8.0
5.5
3.0
2.5
A(pk)
32
22
14
11

C
-55 to +150
-55 to +150
-55 to +150
-55 to +150

20

20

20

20
1/ Derate linearly 0.2 W/

C for TC > +25

C.
TJ max - TC
PT =
R

JC
I
D
=
2/
( R
胃
JX)
T
J(
max
)
- T
C
x ( R
DS(on)
at T
J(
max
)
3/ Electrical characteristics for "U" suffix devices are identical to the corresponding non"U" suffix devices unless otherwise specified.
Beneficial comments (recommendations, additions, deletions) and any pertinent data which may be of use in improving this document
should be addressed to: Commander, Defense Supply Center Columbus, ATTN: DSCC-VAT, 3990 East Broad St., Columbus, OH
43216-5000, by using the addressed Standardization Document Improvement Proposal (DD Form 1426) appearing at the end of this
document or by letter.
AMSC N/A
DISTRIBUTION STATEMENT A. Approved for public release; distribution is unlimited.
FSC 5961

JAN2N6802 產品屬性

  • 0現貨

  • 停產

  • Military, MIL-PRF-19500/557

  • 散裝

  • 停產

  • N 通道

  • MOSFET（金屬氧化物）

  • 500 V

  • 2.5A（Tc）

  • 10V

  • 1.6 歐姆 @ 2.5A，10V

  • 4V @ 250μA

  • 33 nC @ 10 V

  • ±20V

  • -

  • -

  • 800mW（Ta），25W（Tc）

  • -55°C ~ 150°C（TJ）

  • 通孔

  • TO-39

  • TO-205AF 金屬罐
