IZ74HC157A Datasheet

  • IZ74HC157A

  • Quad 2-Input Data Selectors/Multiplexer

  • 6頁

  • INTEGRAL

掃碼查看芯片數據手冊

上傳產品規格書

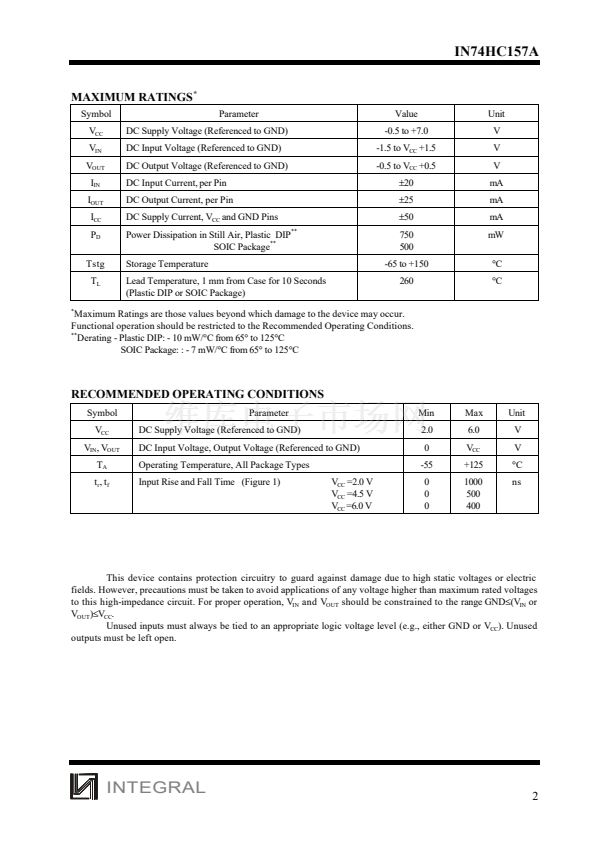

PDF預覽

TECHNICAL DATA
IN74HC157A
Quad 2-Input Data Selectors/Multiplexer
The IN74HC157A is identical in pin out to the LS/ALS157. The device
inputs are compatible with standard CMOS outputs; with pull up resistors,
they are compatible with LS/ALSTTL outputs.
This device routes 2 nibbles (A or B) to a single port (Y) as determined
by the Select input. The data is presented at the outputs in non inverted
form. A high level on the Output Enable input sets all four Y outputs to a low
level.
鈥?/div>
Outputs Directly Interface to CMOS, NMOS, and TTL
鈥?/div>
Operating Voltage Range: 2.0 to 6.0 V
鈥?/div>
Low Input Current: 1.0
碌A(chǔ)
鈥?/div>
High Noise Immunity Characteristic of CMOS Devices
ORDERING INFORMATION
IN74HC157AN Plastic
IN74HC157AD SOIC
IZ74HC157A Chip
T
A
= -55擄 to 125擄 C for all packages
PIN ASSIGNMENT
LOGIC DIAGRAM
FUNCTION TABLE
Inputs
Output
Enable
PIN 16 =V
CC
PIN 8 = GND
H
L
L
Select
X
L
H
Outputs
Y0-Y3
L
A0-A3
B0-B3
X=don鈥檛 care
A0-A3, B0-B3=the levels of the respective
Data-Word Inputs
INTEGRAL
1
