P
Interworking Controller Next Generation
The IWORX (InterWORking element neXt genera-
tion) IC controller is a multi service engine for line
card applications in wireless access networks and
media gateways. It transports ATM traffic over
PDH and SDH based networks.
Supporting speeds of up to 155 Mbit/s, IWORX
enables the adaptation of voice, video and data
traffic via AAL2. Shared location of 2G and 3G
mobile networks for easy network migration path
is facilitated via AAL1 and Circuit Emulated Ser-
vice (CES). The device allows for flexible band-
width adjustment of the PDH ports through 4 IMA
groups and implements all ATM service categories
(CBR, VBR, UBR) for full Quality of Service (QoS)
support.
Being a system on a chip with integrated memory
and controlled via high-level command interface
(API), IWORX is the optimized solution in terms of
performance, ease of use, space & power econ-
omy.
R O D U C T
B
R I E F
I W O R X
P X F 4 2 2 5
V 1 . 2
N e v e r
s t o p
t h i n k i n g .
AT M I n t e r w o r k i n g Co n t r o l l e r
ATM Adaptation Layer Functions
AAL1 mode (ITU-T I.363-1) and
Circuit Emulation Service
(ATMF AF-VTOA 0078.000):
- Support for up to 256 AAL1
ATM VCCs
- Support for structured and
unstructured CES mode for
8 E1/T1/J1 links
- Support for Channel
Associated Signaling (CAS)
- Built in SRTS (selectable) and
ACM clock recovery methods
Features
General Features
Throughput up to 155 Mbit/s
On-chip CPU for simple protocol
handling and control
Easy configurations,
maintenance and in-band
communication via message
based interface
Embedded Memory;
no additional memory required
Port specific mode selection
Time slot specific protocol
selection (e.g., AAL1, G.804)
Dedicated hardware modules for
fast & reliable performance
intensive communication
functions such as AAL1, AAL2,
G.804, OAM, IMA and traffic
management
Applications
3G base transceiver stations
(Node B) and radio network
controller (RNC)
Multiservice linecards
Multimedia Gateways
Reduces power, board space,
cost due to level of integration
System recovery support via
read-back of configuration and
connection data
Boundary scan support per
IEEE 1149.1
Power consumption less
then 2 W
Power supply 3.3 V I/Os,
1.8 V core
Temperature range
-40擄C to +85擄C
Package P-BGA-388
AAL2 mode (ITU-T I.363.2):
- Support for up to 16 AAL2
ATM VCCs
- Mux/demux of up to 255 AAL2
channels per AAL2 ATM VCC
- Support for up to 4080 AAL2
CIDs
- AAL2 timer_CU is adjustable
from 0.1 to 10 ms with a
resolution of 0.1 ms
AAL5 support (ITU-T I.363-5)
- Support of inband management
cells over E1/T1/J1 lines and
UTOPIA
IWORX
ATM Layer Functions
Address Reduction & Header
Translation
- Reduction of full VPI/VCI
address range to 256 internal
addresses
- VPI/VCI translation for 256
bi-directional ATM connections
- Support for ATM UNI/NNI mode
1

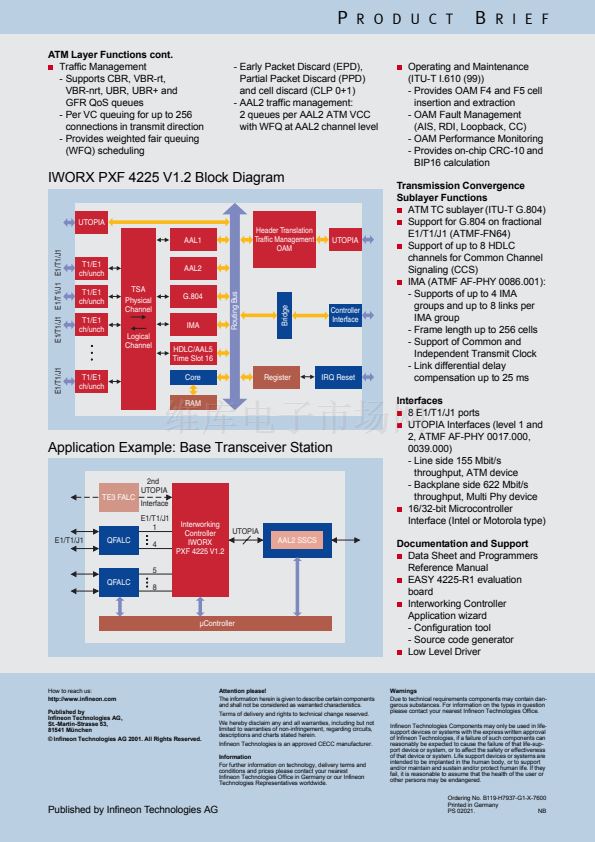

2
