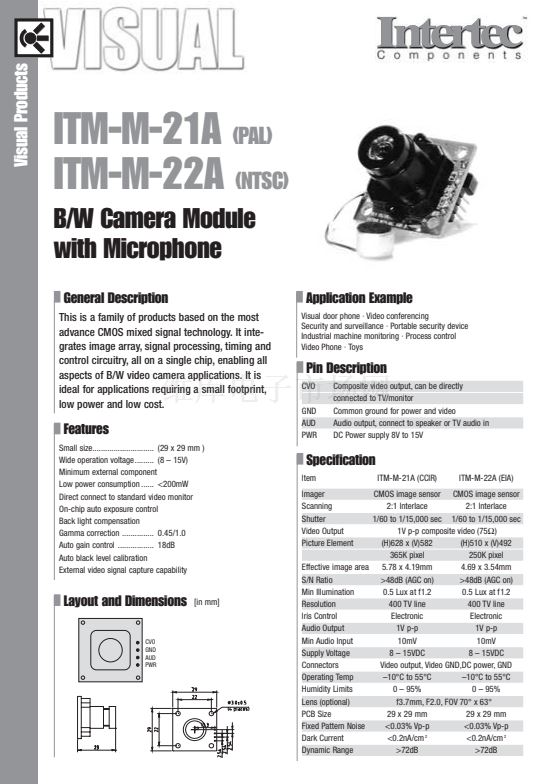

Visual Products
ITM-M-21A
(PAL)
ITM-M-22A
(NTSC)
B/W Camera Module
with Microphone
General Description
This is a family of products based on the most
advance CMOS mixed signal technology. It inte-
grates image array, signal processing, timing and
control circuitry, all on a single chip, enabling all
aspects of B/W video camera applications. It is
ideal for applications requiring a small footprint,
low power and low cost.
Application Example
Visual door phone 路 Video conferencing
Security and surveillance 路 Portable security device
Industrial machine monitoring 路 Process control
Video Phone 路 Toys
Pin Description
CVO
GND
AUD
PWR
Composite video output, can be directly
connected to TV/monitor
Common ground for power and video
Audio output, connect to speaker or TV audio in
DC Power supply 8V to 15V
Features
Small size............................. (29 x 29 mm )
Wide operation voltage......... (8 鈥?15V)
Minimum external component
Low power consumption ...... <200mW
Direct connect to standard video monitor
On-chip auto exposure control
Back light compensation
Gamma correction ............... 0.45/1.0
Auto gain control ................. 18dB
Auto black level calibration
External video signal capture capability
Specification
Item
Imager
Scanning
Shutter
Video Output
Picture Element
ITM-M-21A (CCIR)
ITM-M-22A (EIA)
CMOS image sensor CMOS image sensor
2:1 Interlace
2:1 Interlace
1/60 to 1/15,000 sec 1/60 to 1/15,000 sec
1V p-p composite video (75鈩?
(H)628 x (V)582
(H)510 x (V)492
365K pixel
250K pixel
Effective image area 5.78 x 4.19mm
4.69 x 3.54mm
S/N Ratio
>48dB (AGC on)
>48dB (AGC on)
Min Illumination
0.5 Lux at f1.2
0.5 Lux at f1.2
Resolution
400 TV line
400 TV line
Iris Control
Electronic
Electronic
Audio Output
1V p-p
1V p-p
Min Audio Input
10mV
10mV
Supply Voltage
8 鈥?15VDC
8 鈥?15VDC
Connectors
Video output, Video GND,DC power, GND
Operating Temp
鈥?0擄C to 55擄C
鈥?0擄C to 55擄C
Humidity Limits
0 鈥?95%
0 鈥?95%
Lens (optional)
f3.7mm, F2.0, FOV 70擄 x 63擄
PCB Size
29 x 29 mm
29 x 29 mm
Fixed Pattern Noise
<0.03% Vp-p
<0.03% Vp-p
2
<0.2nA/cm
2
Dark Current
<0.2nA/cm
Dynamic Range
>72dB
>72dB
Layout and Dimensions
CVO
GND
AUD
PWR
[in mm]
10
1
