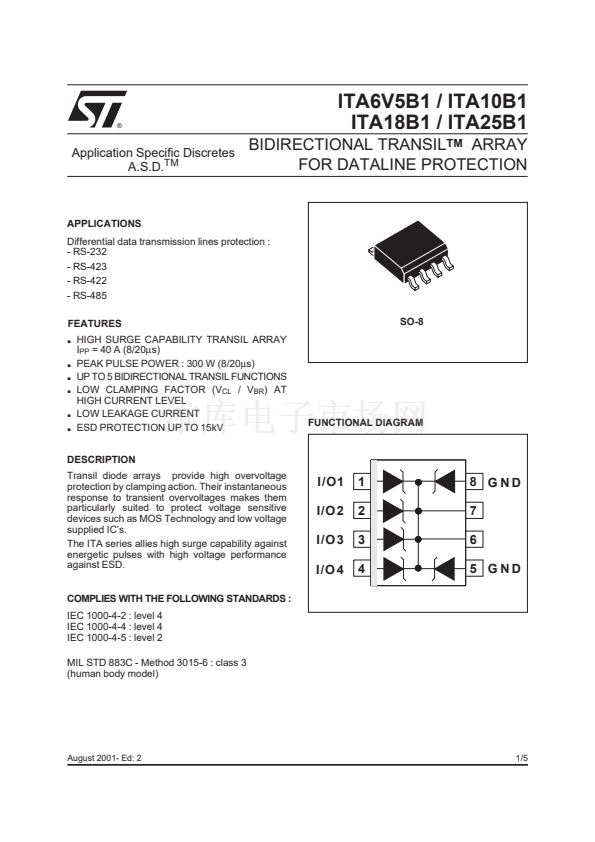

ITA6V5B1 / ITA10B1

ITA18B1 / ITA25B1

BIDIRECTIONAL TRANSIL

TM

ARRAY

FOR DATALINE PROTECTION

Application Specific Discretes

A.S.D.

TM

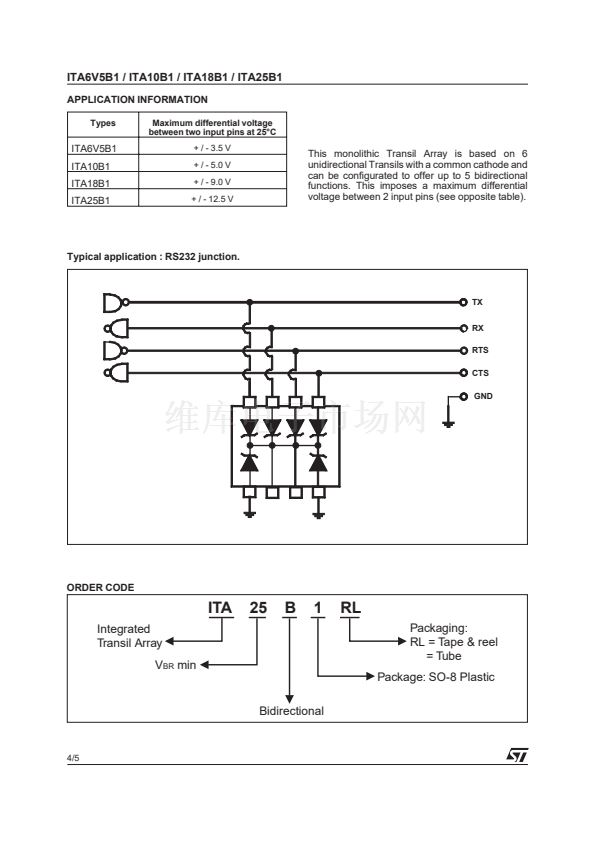

APPLICATIONS

Differential data transmission lines protection :

- RS-232

- RS-423

- RS-422

- RS-485

FEATURES

s

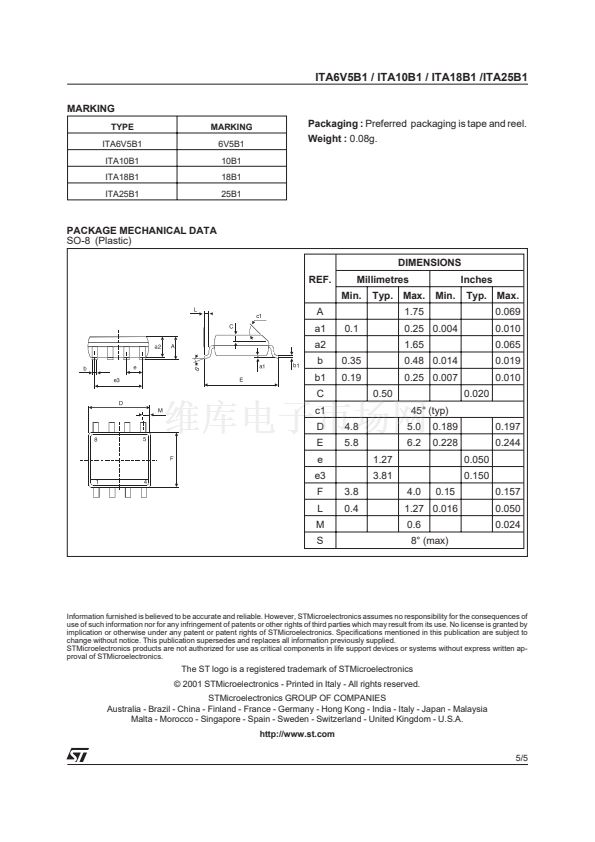

SO-8

s

s

s

s

s

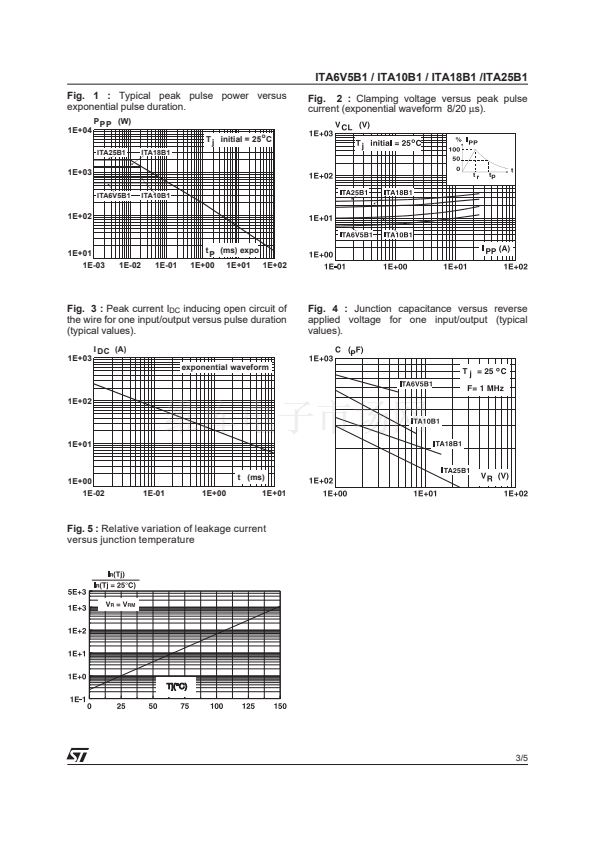

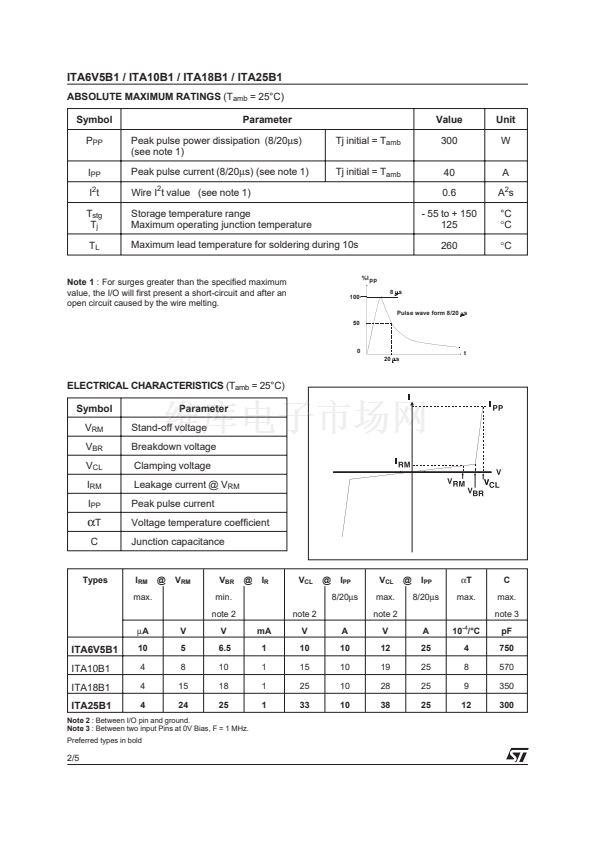

HIGH SURGE CAPABILITY TRANSIL ARRAY

I

PP

= 40 A (8/20碌s)

PEAK PULSE POWER : 300 W (8/20碌s)

UP TO 5 BIDIRECTIONAL TRANSIL FUNCTIONS

LOW CLAMPING FACTOR (V

CL

/ V

BR

) AT

HIGH CURRENT LEVEL

LOW LEAKAGE CURRENT

ESD PROTECTION UP TO 15kV

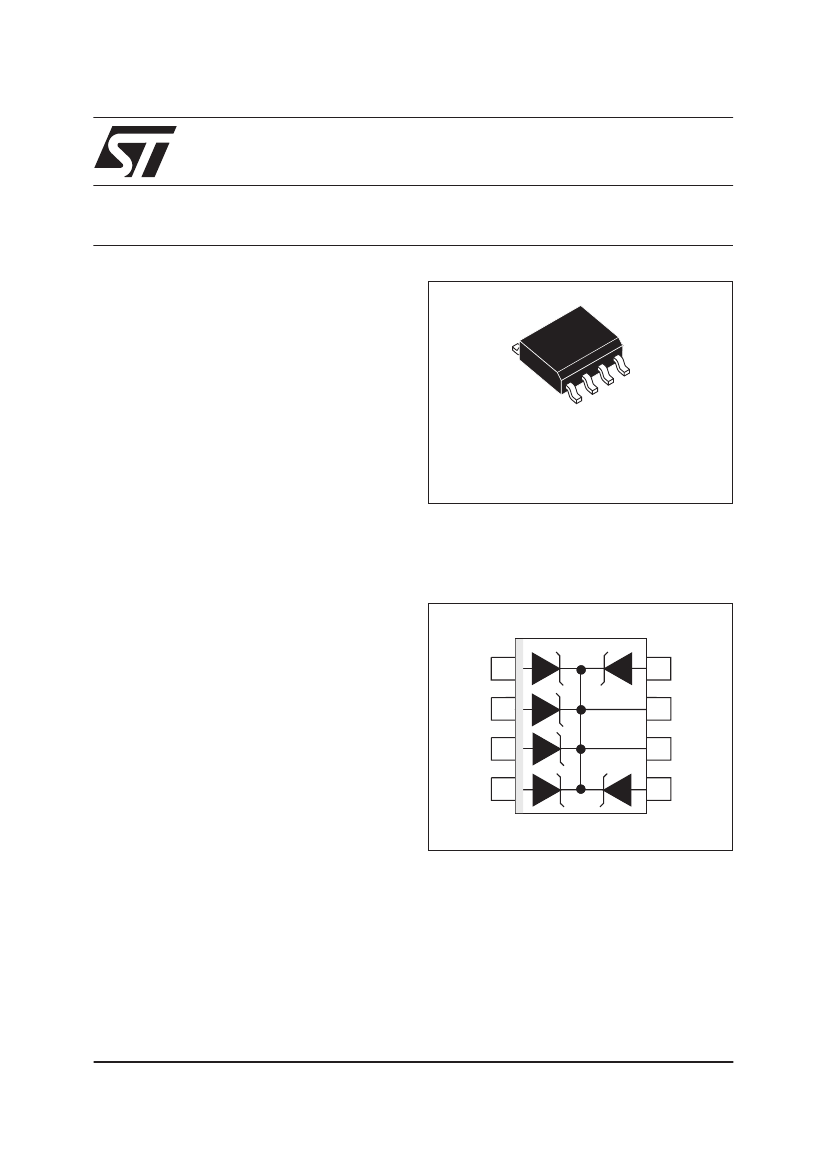

FUNCTIONAL DIAGRAM

DESCRIPTION

Transil diode arrays provide high overvoltage

protection by clamping action. Their instantaneous

response to transient overvoltages makes them

particularly suited to protect voltage sensitive

devices such as MOS Technology and low voltage

supplied IC鈥檚.

The ITA series allies high surge capability against

energetic pulses with high voltage performance

against ESD.

COMPLIES WITH THE FOLLOWING STANDARDS :

IEC 1000-4-2 : level 4

IEC 1000-4-4 : level 4

IEC 1000-4-5 : level 2

MIL STD 883C - Method 3015-6 : class 3

(human body model)

I/O1

I/O 2

I/O 3

I/O 4

1

2

3

4

8 GND

7

6

5 GND

August 2001- Ed: 2

1/5
