ISL9V2540S3ST Datasheet

IC型號：
ISL9V2540S3ST
PDF描述：
EcoSPARK N-Channel Ignition IGBT
文件大?。?/label>
184.74KB
PDF頁數：
9頁
芯片廠家：
FAIRCHILD

閱覽下載糾錯 0

掃碼查看芯片數據手冊

上傳產品規格書

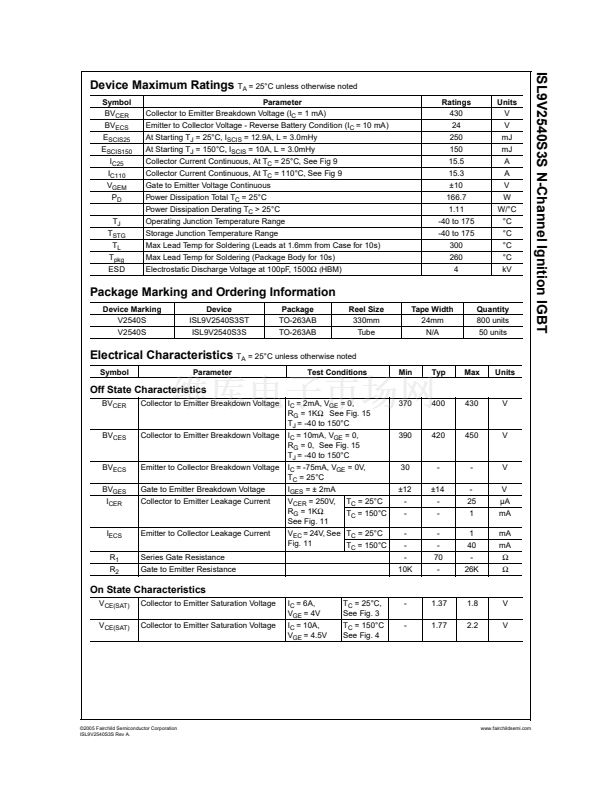

PDF預覽

ISL9V2540S3S N-Channel Ignition IGBT

June 2005

ISL9V2540S3S

EcoSPARK

N-Channel Ignition IGBT

250mJ, 400V

Features

SCIS Energy = 250mJ at T

= 25

Logic Level Gate Drive

General Description

The ISL9V2540S3S is a next generation ignition IGBT that

offers outstanding SCIS capability in the industry standard

D虜-Pak (TO-263) plastic package. This device is intended

for use in automotive ignition circuits, specifically as a coil

driver. Internal diodes provide voltage clamping without the

need for external components.

EcoSPARK鈩?/div>

devices can be custom made to specific

clamp voltages. Contact your nearest Fairchild sales office

for more information.

Applications

Automotive Ignition Coil Driver Circuits

Coil - On Plug Applications

Package

Symbol

COLLECTOR

GATE

EMITTER

COLLECTOR

(FLANGE)

JEDEC TO-263AB

-Pak

EMITTER

漏2005 Fairchild Semiconductor Corporation

ISL9V2540S3S Rev. A

www.fairchildsemi.com

標準包裝
800
類別
分離式半導體產品
家庭
IGBT - 單路
系列
EcoSPARK™
IGBT 類型
-
電壓 - 集電極發射極擊穿（最大）
430V
Vge, Ic時的最大Vce（開）
1.8V @ 4V，6A
電流 - 集電極 (Ic)（最大）
15.5A
功率 - 最大
166.7W
輸入類型
邏輯
安裝類型
表面貼裝
封裝/外殼
TO-263-3，D²Pak（2 引線+接片），TO-263AB
供應商設備封裝
D²PAK
包裝
帶卷 (TR)
