ISL84714
Data Sheet
June 2004
FN6086.1

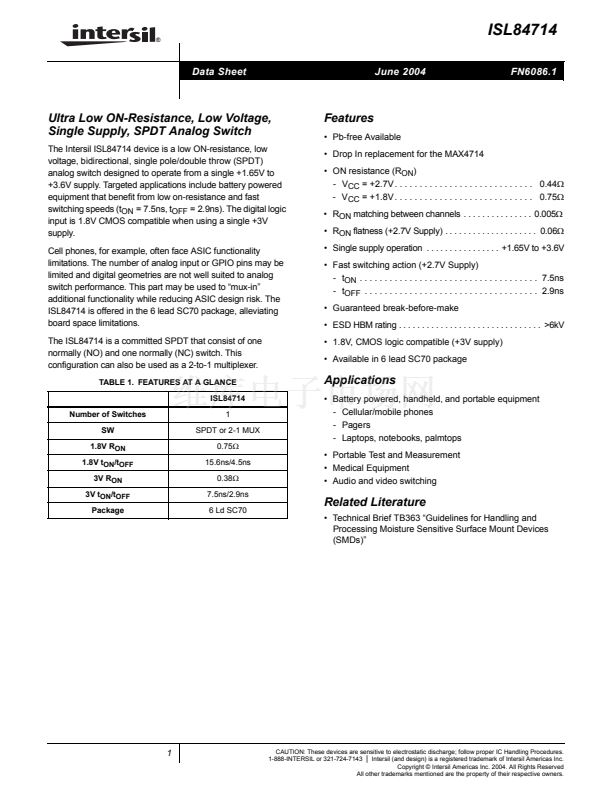

Ultra Low ON-Resistance, Low Voltage,
Single Supply, SPDT Analog Switch
The Intersil ISL84714 device is a low ON-resistance, low
voltage, bidirectional, single pole/double throw (SPDT)
analog switch designed to operate from a single +1.65V to
+3.6V supply. Targeted applications include battery powered
equipment that benefit from low on-resistance and fast
switching speeds (t
ON
= 7.5ns, t
OFF
= 2.9ns). The digital logic
input is 1.8V CMOS compatible when using a single +3V
supply.
Cell phones, for example, often face ASIC functionality
limitations. The number of analog input or GPIO pins may be
limited and digital geometries are not well suited to analog
switch performance. This part may be used to 鈥渕ux-in鈥?/div>
additional functionality while reducing ASIC design risk. The
ISL84714 is offered in the 6 lead SC70 package, alleviating
board space limitations.
The ISL84714 is a committed SPDT that consist of one
normally (NO) and one normally (NC) switch. This
configuration can also be used as a 2-to-1 multiplexer.
TABLE 1. FEATURES AT A GLANCE
ISL84714
Number of Switches
SW
1.8V R
ON
1.8V t
ON
/t
OFF
3V R
ON
3V t
ON
/t
OFF
Package
1
SPDT or 2-1 MUX
0.75鈩?/div>
15.6ns/4.5ns
0.38鈩?/div>
7.5ns/2.9ns
6 Ld SC70
Features
鈥?Pb-free Available
鈥?Drop In replacement for the MAX4714
鈥?ON resistance (R
ON
)
- V
CC
= +2.7V . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.44鈩?/div>
- V
CC
= +1.8V . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.75鈩?/div>
鈥?R
ON
matching between channels . . . . . . . . . . . . . . . 0.005鈩?/div>
鈥?R
ON
flatness (+2.7V Supply) . . . . . . . . . . . . . . . . . . . . 0.06鈩?/div>
鈥?Single supply operation . . . . . . . . . . . . . . . . +1.65V to +3.6V
鈥?Fast switching action (+2.7V Supply)
- t
ON
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7.5ns
- t
OFF
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.9ns
鈥?Guaranteed break-before-make
鈥?ESD HBM rating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . >6kV
鈥?1.8V, CMOS logic compatible (+3V supply)
鈥?Available in 6 lead SC70 package
Applications
鈥?Battery powered, handheld, and portable equipment
- Cellular/mobile phones
- Pagers
- Laptops, notebooks, palmtops
鈥?Portable Test and Measurement
鈥?Medical Equipment
鈥?Audio and video switching
Related Literature
鈥?Technical Brief TB363 鈥淕uidelines for Handling and
Processing Moisture Sensitive Surface Mount Devices
(SMDs)鈥?/div>
1
CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.
1-888-INTERSIL or 321-724-7143
|
Intersil (and design) is a registered trademark of Intersil Americas Inc.
Copyright 漏 Intersil Americas Inc. 2004. All Rights Reserved
All other trademarks mentioned are the property of their respective owners.
