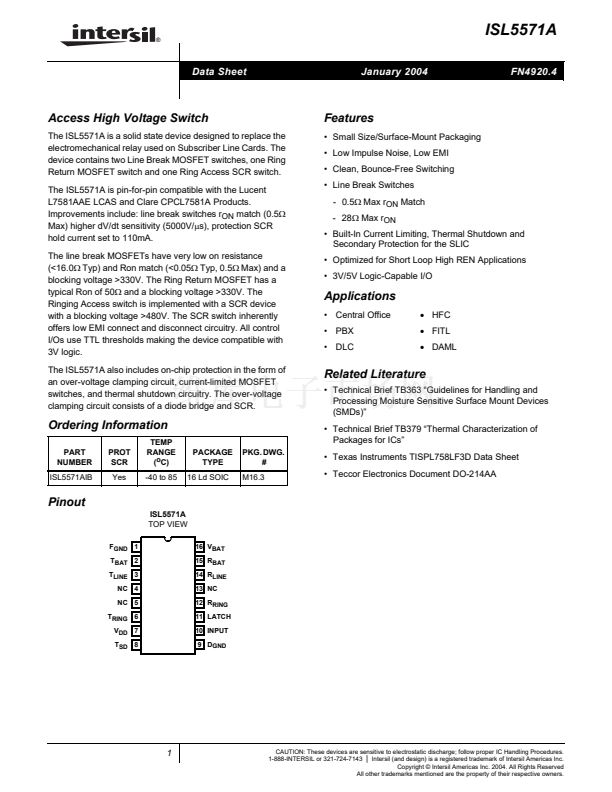

electromechanical relay used on Subscriber Line Cards. The
Return MOSFET switch and one Ring Access SCR switch.
L7581AAE LCAS and Clare CPCL7581A Products.
match (0.5鈩?/div>
Max) higher dV/dt sensitivity (5000V/碌s), protection SCR
hold current set to 110mA.

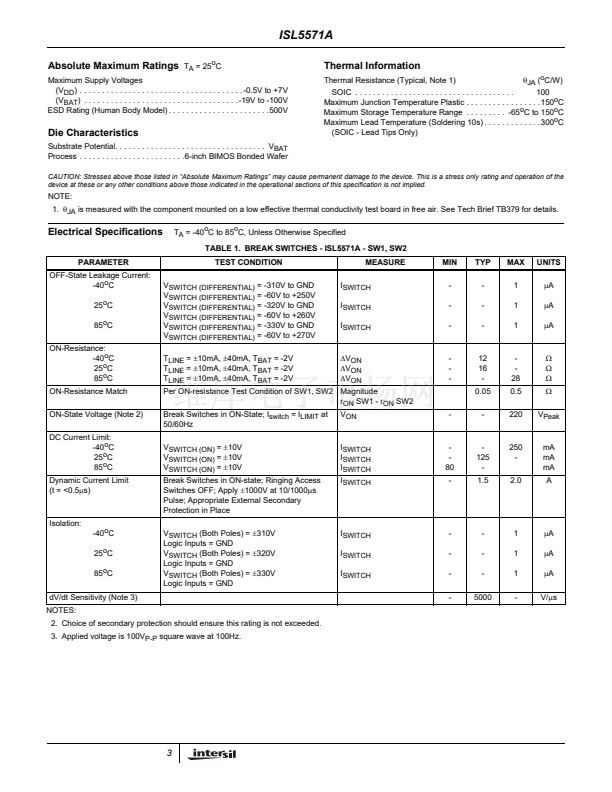

The line break MOSFETs have very low on resistance
(<16.0鈩?Typ) and Ron match (<0.05鈩?Typ, 0.5鈩?Max) and a

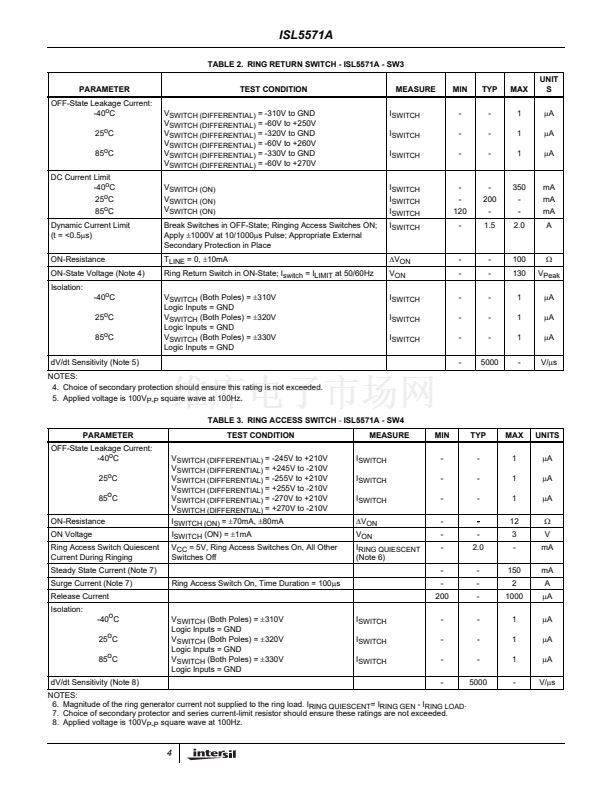

blocking voltage >330V. The Ring Return MOSFET has a
typical Ron of 50鈩?and a blocking voltage >330V. The
Ringing Access switch is implemented with a SCR device
with a blocking voltage >480V. The SCR switch inherently

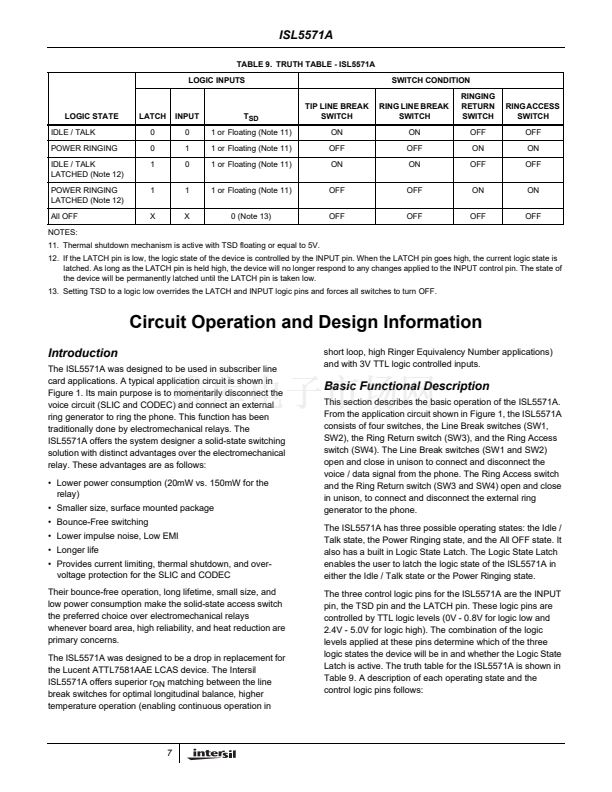

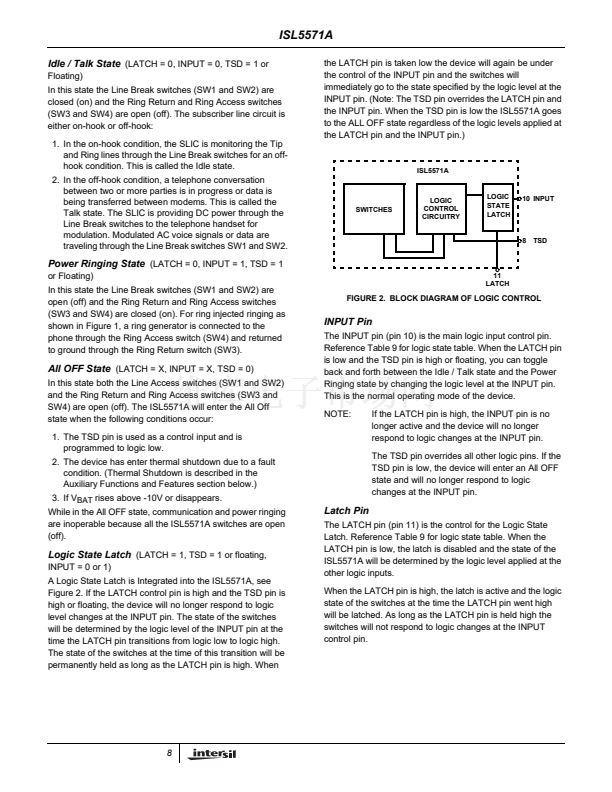

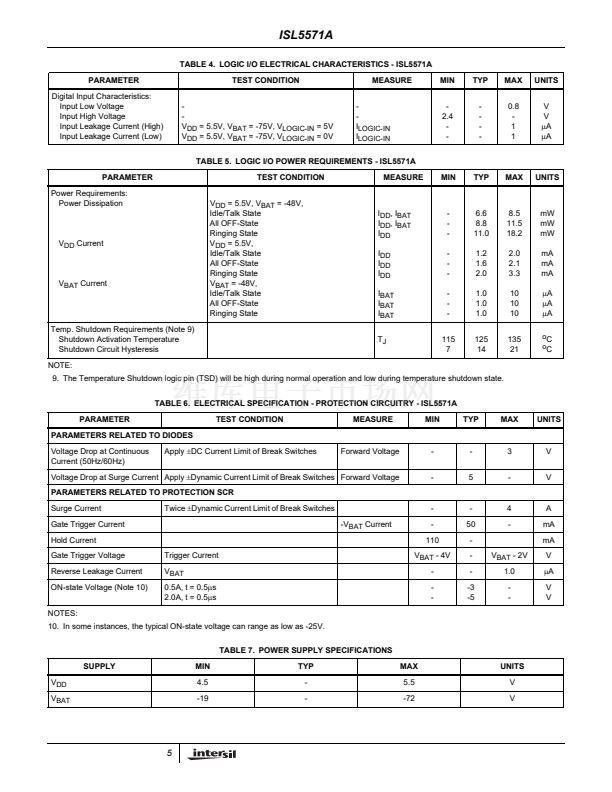

offers low EMI connect and disconnect circuitry. All control
I/Os use TTL thresholds making the device compatible with
3V logic.

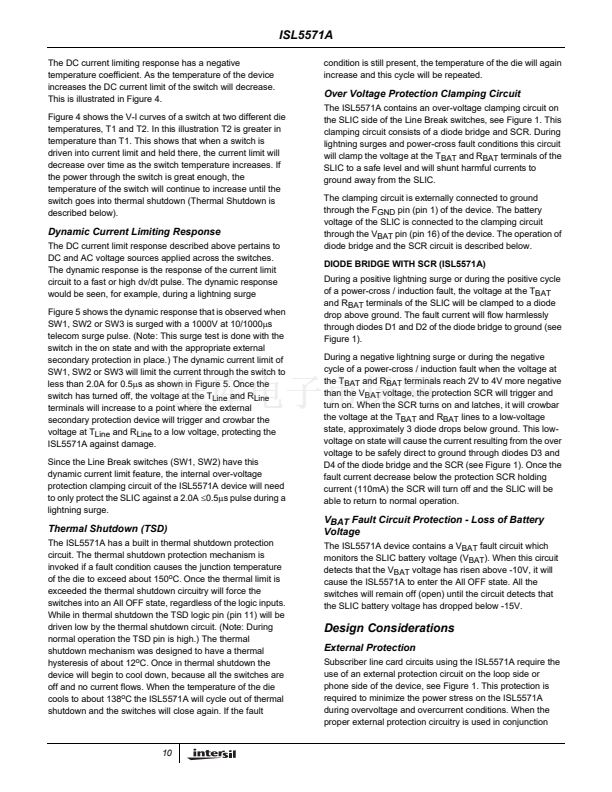

The ISL5571A also includes on-chip protection in the form of
an over-voltage clamping circuit, current-limited MOSFET
switches, and thermal shutdown circuitry. The over-voltage

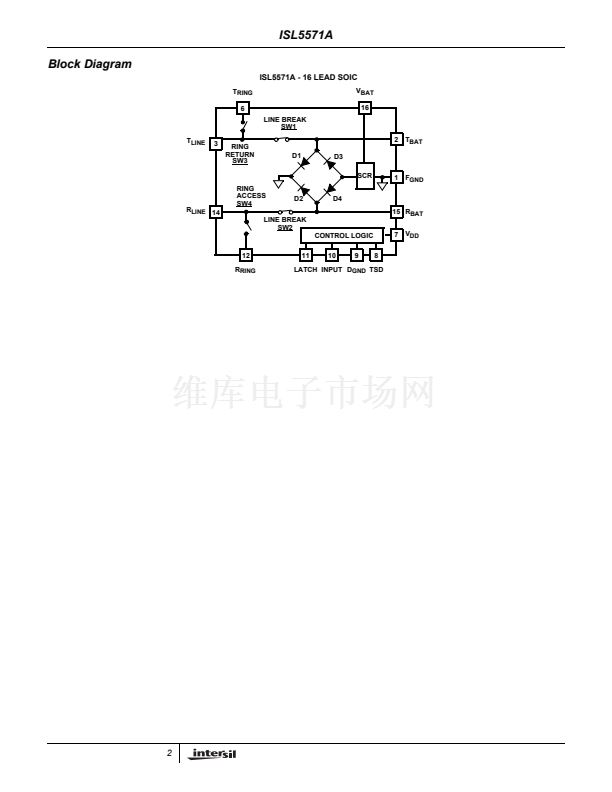

clamping circuit consists of a diode bridge and SCR.
Features
鈥?Small Size/Surface-Mount Packaging
鈥?Low Impulse Noise, Low EMI
鈥?Clean, Bounce-Free Switching
鈥?Line Break Switches
- 0.5鈩?Max r
ON
Match
- 28鈩?Max r
ON
鈥?Built-In Current Limiting, Thermal Shutdown and
Secondary Protection for the SLIC
鈥?Optimized for Short Loop High REN Applications
鈥?3V/5V Logic-Capable I/O
Applications
鈥?Central Office
鈥?PBX
鈥?DLC
鈥?/div>
HFC
鈥?/div>
FITL
鈥?/div>
DAML
Related Literature
鈥?Technical Brief TB363 鈥淕uidelines for Handling and
Processing Moisture Sensitive Surface Mount Devices
(SMDs)鈥?/div>
鈥?Technical Brief TB379 鈥淭hermal Characterization of
Packages for ICs鈥?/div>
Ordering Information
PART
NUMBER
ISL5571AIB
PROT
SCR
Yes
TEMP
RANGE
(
o
C)
-40 to 85
PACKAGE
TYPE
16 Ld SOIC

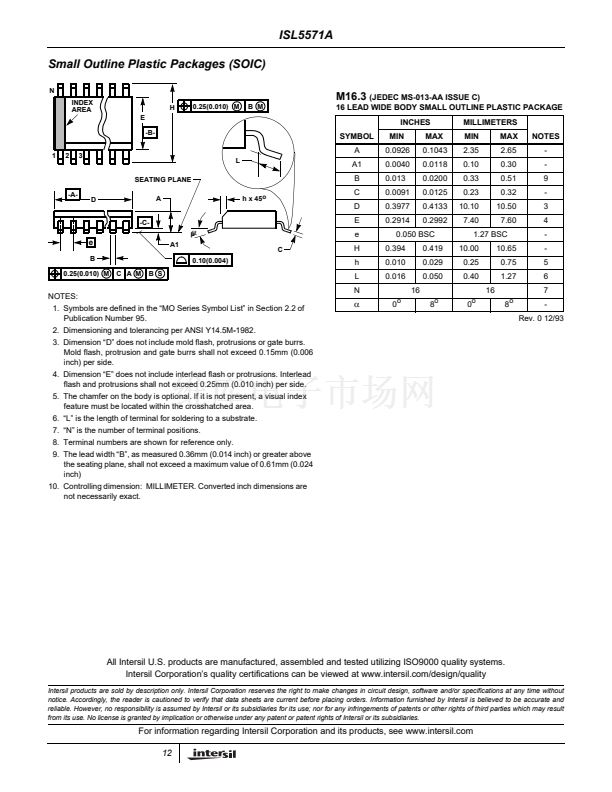

PKG. DWG.
#
M16.3
鈥?Texas Instruments TISPL758LF3D Data Sheet
鈥?Teccor Electronics Document DO-214AA

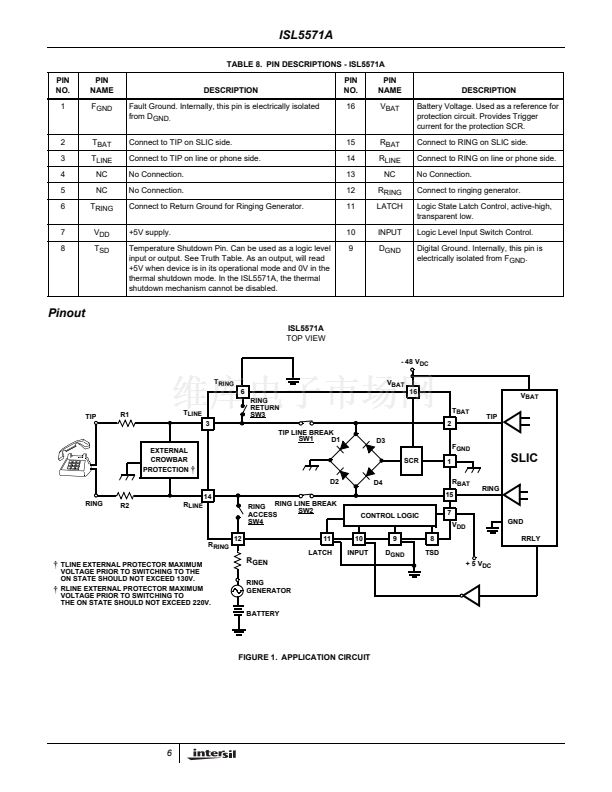

Pinout
ISL5571A
TOP VIEW
F
GND
1
T
BAT
2
T
LINE
3
NC 4
NC 5
T
RING
6
V
DD
7
T
SD
8
16 V
BAT
15 R
BAT
14 R
LINE
13 NC
12 R
RING
11 LATCH
10 INPUT
9 D
GND
1
CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.
1-888-INTERSIL or 321-724-7143
|
Intersil (and design) is a registered trademark of Intersil Americas Inc.
Copyright 漏 Intersil Americas Inc. 2004. All Rights Reserved
All other trademarks mentioned are the property of their respective owners.
