ISL55110 Datasheet

  • ISL55110

  • Dual, High Speed MOSFET Driver

  • 309.73KB

  • 15頁

  • INTERSIL   INTERSIL

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

廬

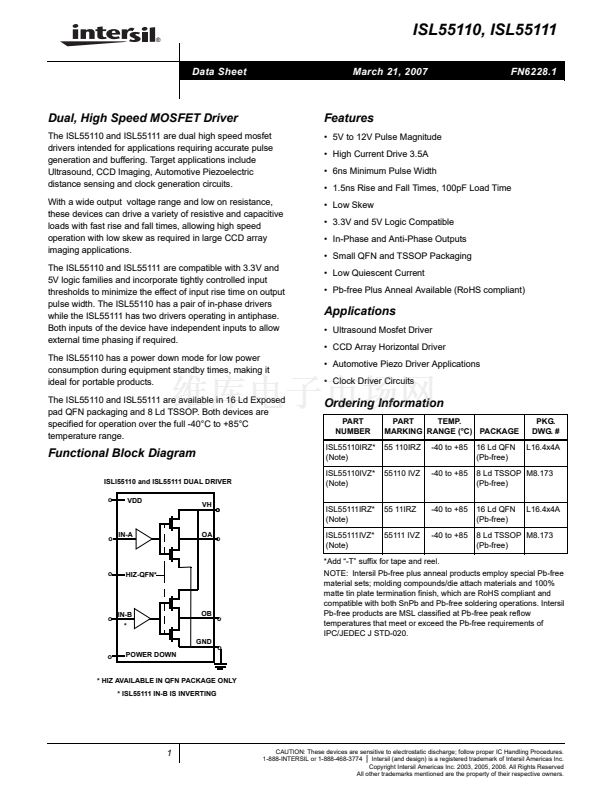

ISL55110, ISL55111
Data Sheet
March 21, 2007
FN6228.1
Dual, High Speed MOSFET Driver

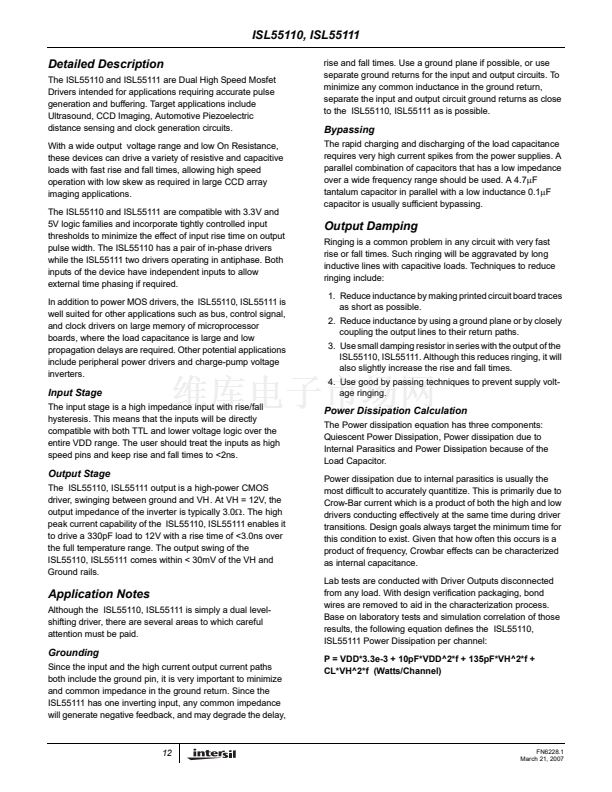

The ISL55110 and ISL55111 are dual high speed mosfet
drivers intended for applications requiring accurate pulse
generation and buffering. Target applications include
Ultrasound, CCD Imaging, Automotive Piezoelectric
distance sensing and clock generation circuits.
With a wide output voltage range and low on resistance,
these devices can drive a variety of resistive and capacitive
loads with fast rise and fall times, allowing high speed
operation with low skew as required in large CCD array
imaging applications.
The ISL55110 and ISL55111 are compatible with 3.3V and
5V logic families and incorporate tightly controlled input
thresholds to minimize the effect of input rise time on output
pulse width. The ISL55110 has a pair of in-phase drivers
while the ISL55111 has two drivers operating in antiphase.
Both inputs of the device have independent inputs to allow
external time phasing if required.
The ISL55110 has a power down mode for low power
consumption during equipment standby times, making it
ideal for portable products.
The ISL55110 and ISL55111 are available in 16 Ld Exposed
pad QFN packaging and 8 Ld TSSOP. Both devices are
specified for operation over the full -40擄C to +85擄C
temperature range.
Features

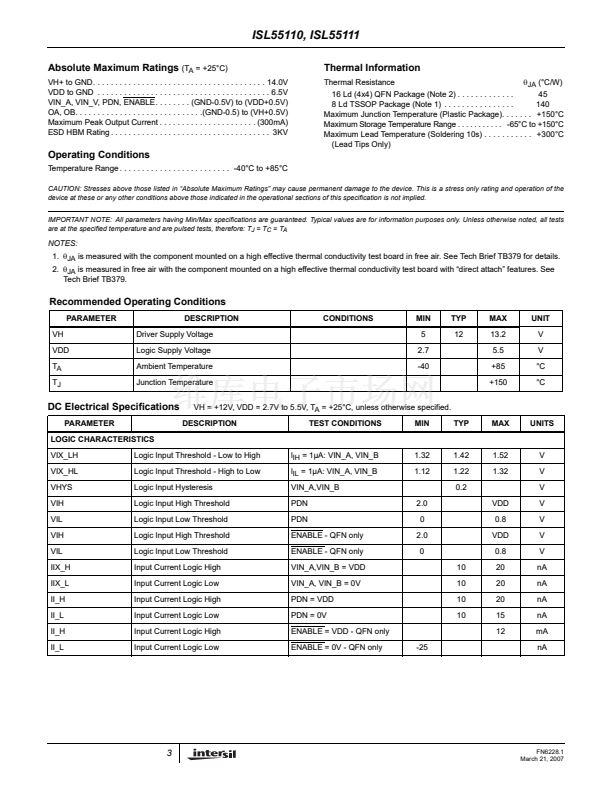

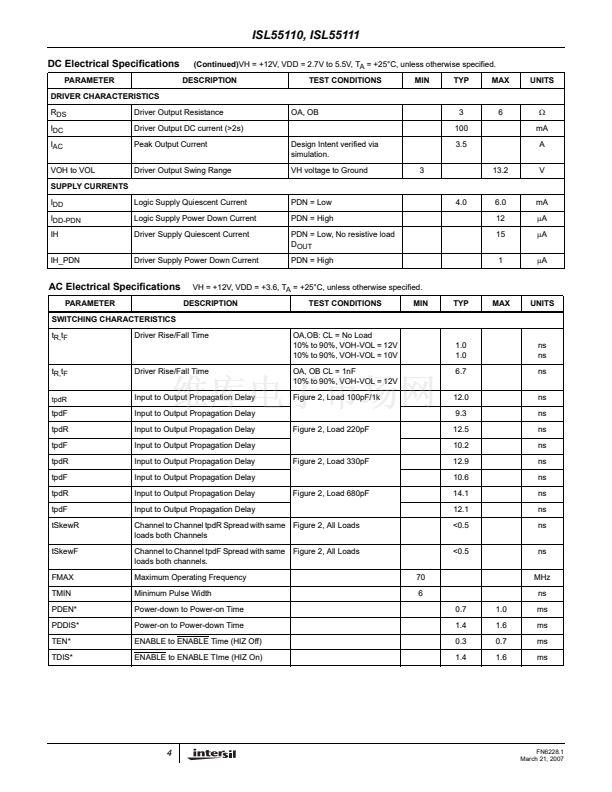

鈥?5V to 12V Pulse Magnitude
鈥?High Current Drive 3.5A
鈥?6ns Minimum Pulse Width

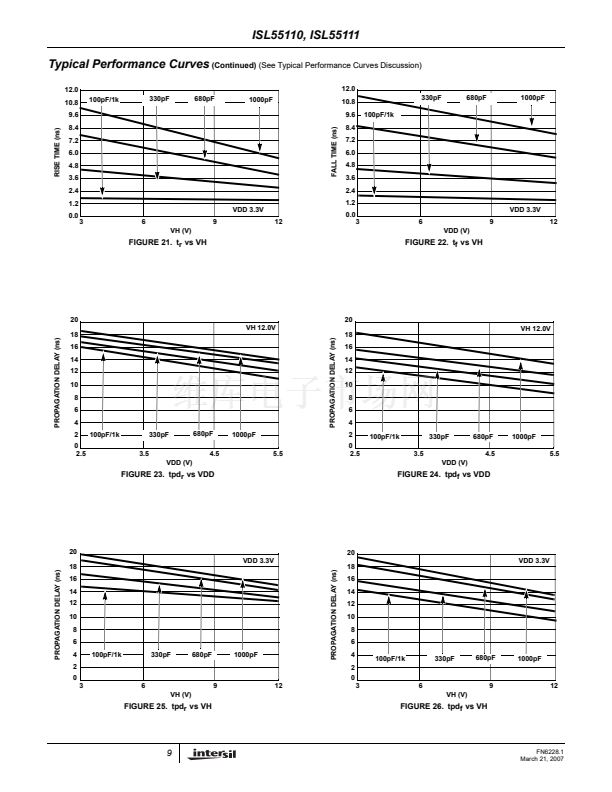

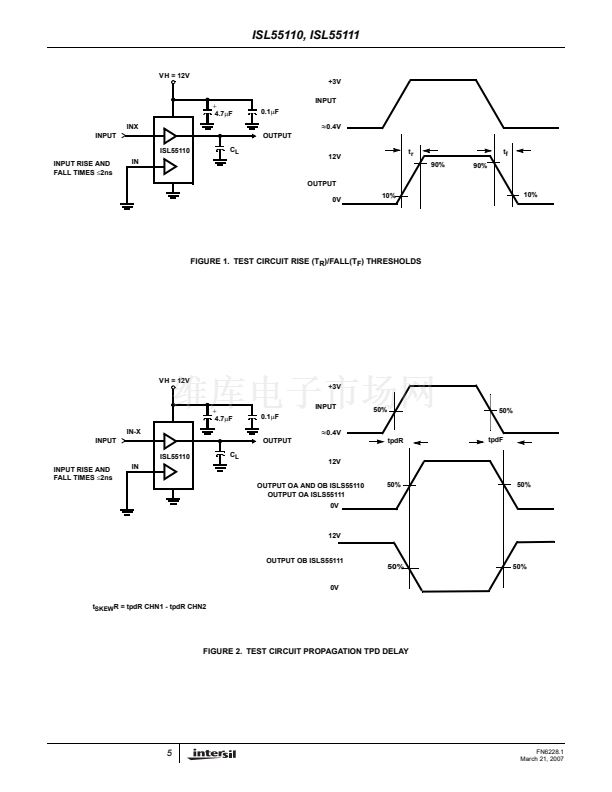

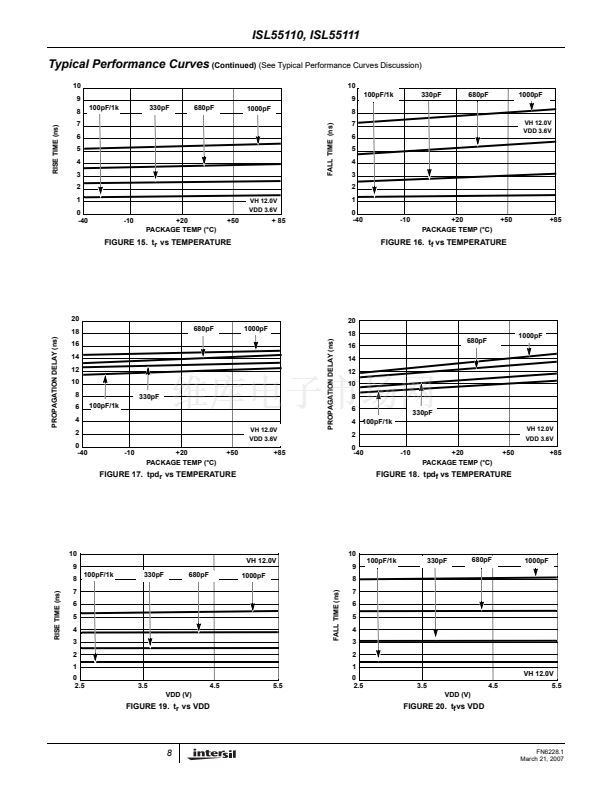

鈥?1.5ns Rise and Fall Times, 100pF Load Time
鈥?Low Skew
鈥?3.3V and 5V Logic Compatible
鈥?In-Phase and Anti-Phase Outputs
鈥?Small QFN and TSSOP Packaging

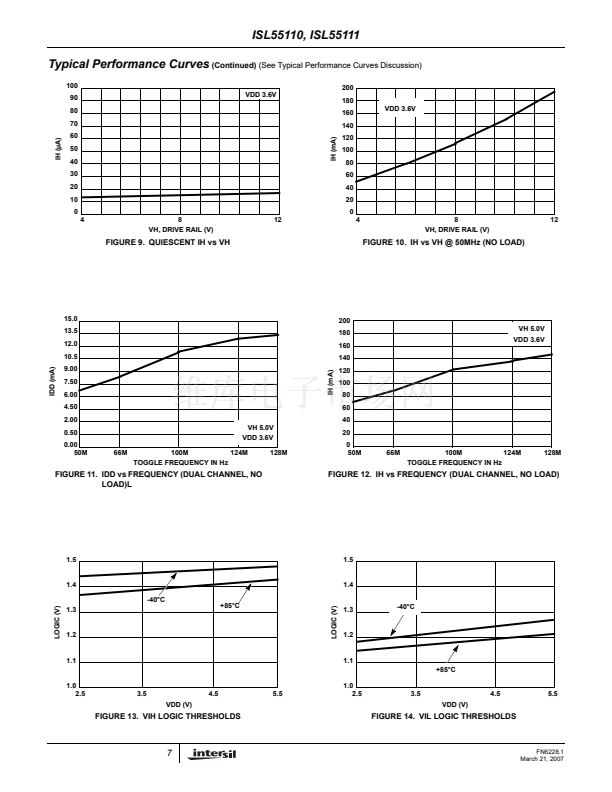

鈥?Low Quiescent Current
鈥?Pb-free Plus Anneal Available (RoHS compliant)
Applications
鈥?Ultrasound Mosfet Driver
鈥?CCD Array Horizontal Driver
鈥?Automotive Piezo Driver Applications
鈥?Clock Driver Circuits
Ordering Information
PART
NUMBER
ISL55110IRZ*
(Note)
ISL55110IVZ*
(Note)
ISL55111IRZ*
(Note)
ISL55111IVZ*
(Note)
PART
TEMP.
MARKING RANGE (擄C) PACKAGE
55 110IRZ
55110 IVZ
-40 to +85
-40 to +85
16 Ld QFN
(Pb-free)
PKG.
DWG. #

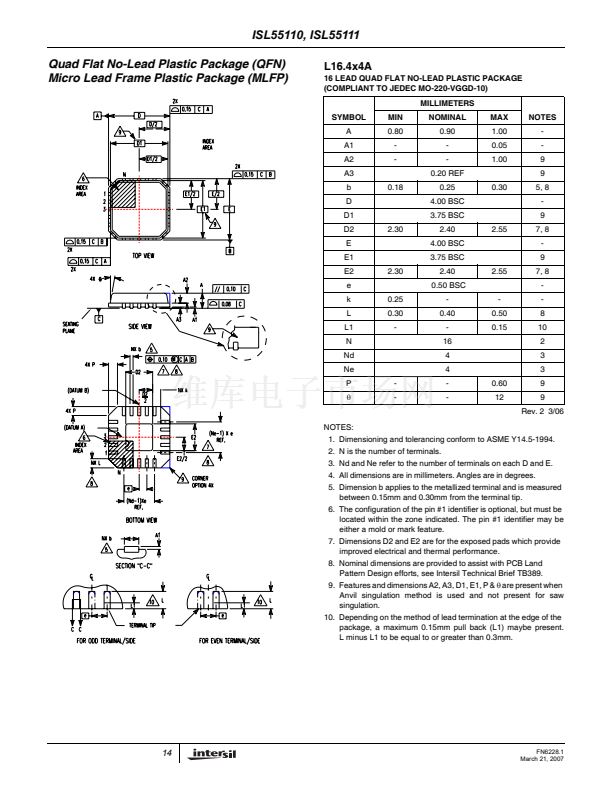

L16.4x4A

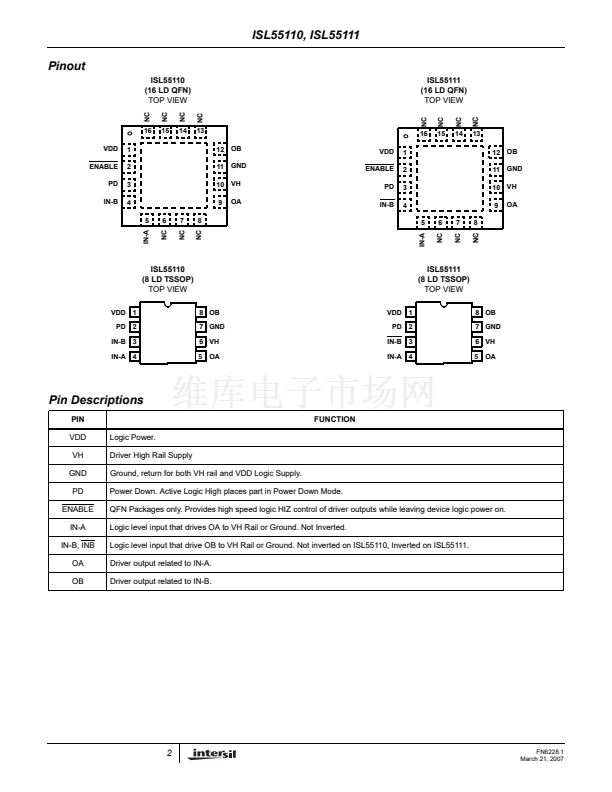

Functional Block Diagram
ISLl55110 and ISL55111 DUAL DRIVER
o
VDD

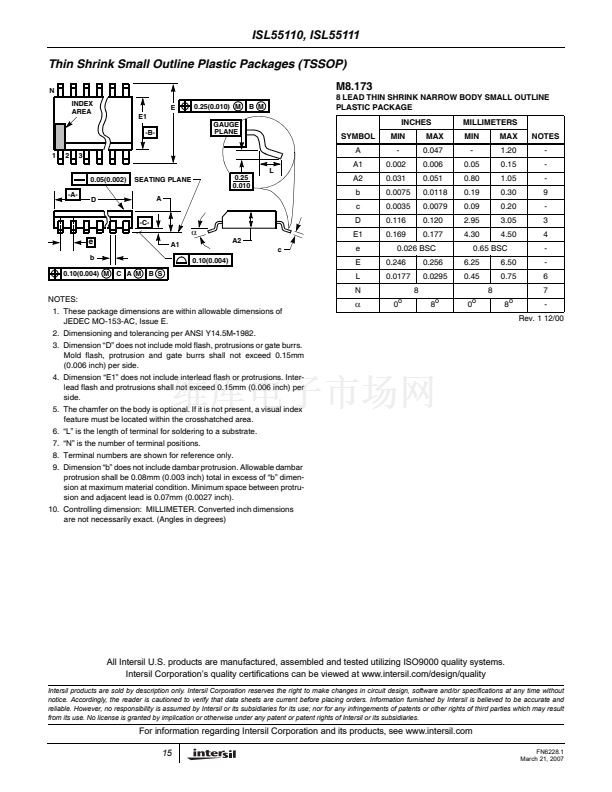

8 Ld TSSOP M8.173
(Pb-free)
16 Ld QFN
(Pb-free)
L16.4x4A
VH
o
55 11IRZ
55111 IVZ
-40 to +85
-40 to +85
o
IN-A
OA
o
8 Ld TSSOP M8.173
(Pb-free)
*Add 鈥?T鈥?suffix for tape and reel.
o
HIZ-QFN*
o
IN-B
*
OB
o
NOTE: Intersil Pb-free plus anneal products employ special Pb-free
material sets; molding compounds/die attach materials and 100%
matte tin plate termination finish, which are RoHS compliant and
compatible with both SnPb and Pb-free soldering operations. Intersil
Pb-free products are MSL classified at Pb-free peak reflow
temperatures that meet or exceed the Pb-free requirements of
IPC/JEDEC J STD-020.
GND
o
POWER DOWN
o
* HIZ AVAILABLE IN QFN PACKAGE ONLY
* ISL55111 IN-B IS INVERTING
1
CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.
1-888-INTERSIL or 1-888-468-3774
|
Intersil (and design) is a registered trademark of Intersil Americas Inc.
Copyright Intersil Americas Inc. 2003, 2005, 2006. All Rights Reserved
All other trademarks mentioned are the property of their respective owners.
