IRMCK203 Datasheet

  • IRMCK203

  • High Performance Sensorless Motion Control IC

  • 57頁

  • IRF

掃碼查看芯片數據手冊

上傳產品規格書

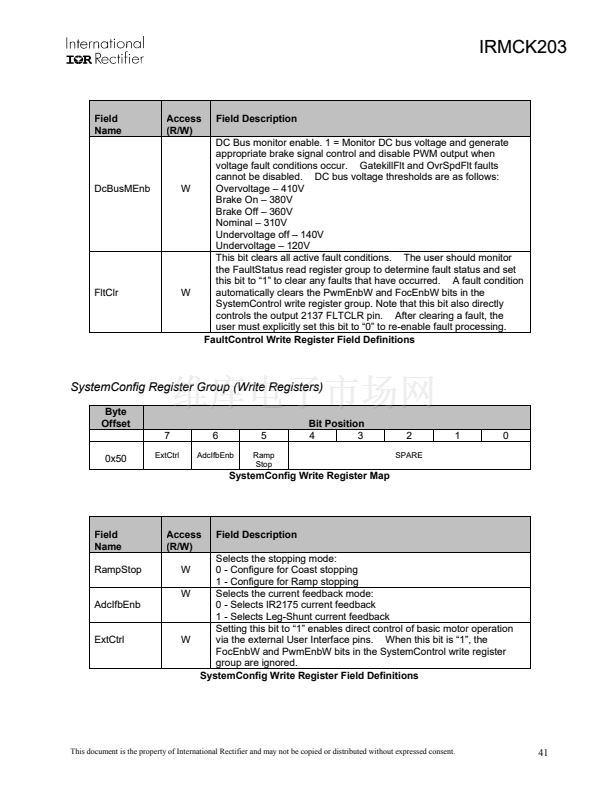

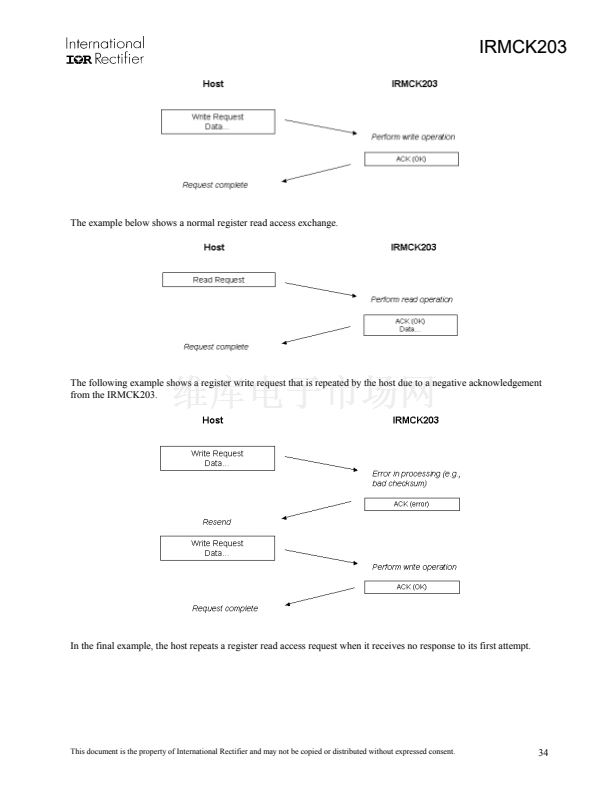

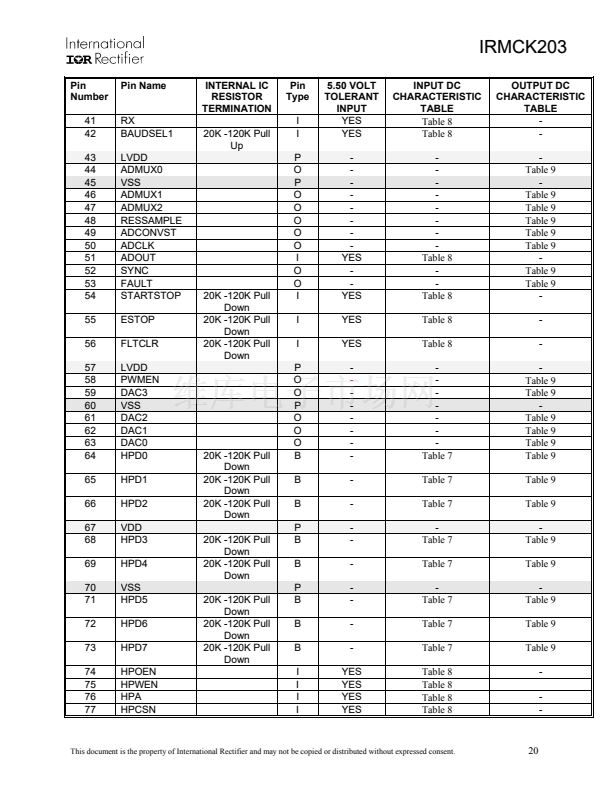

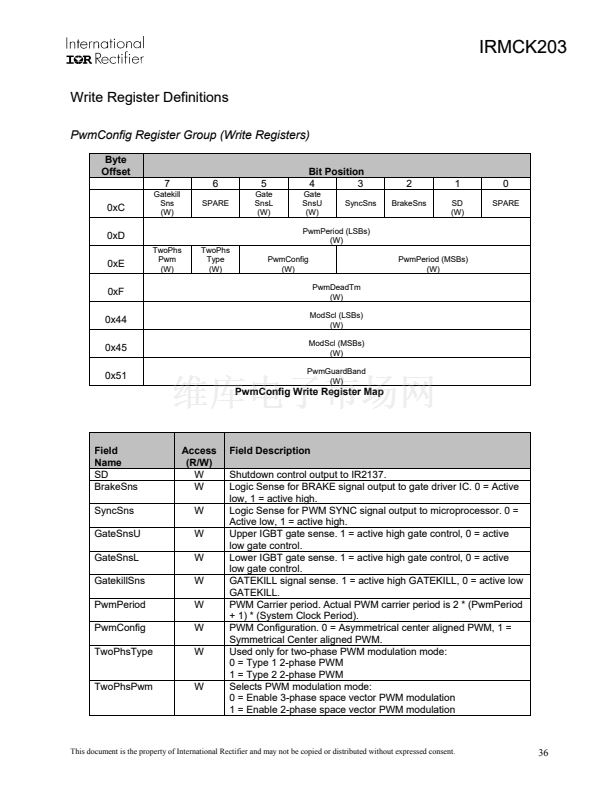

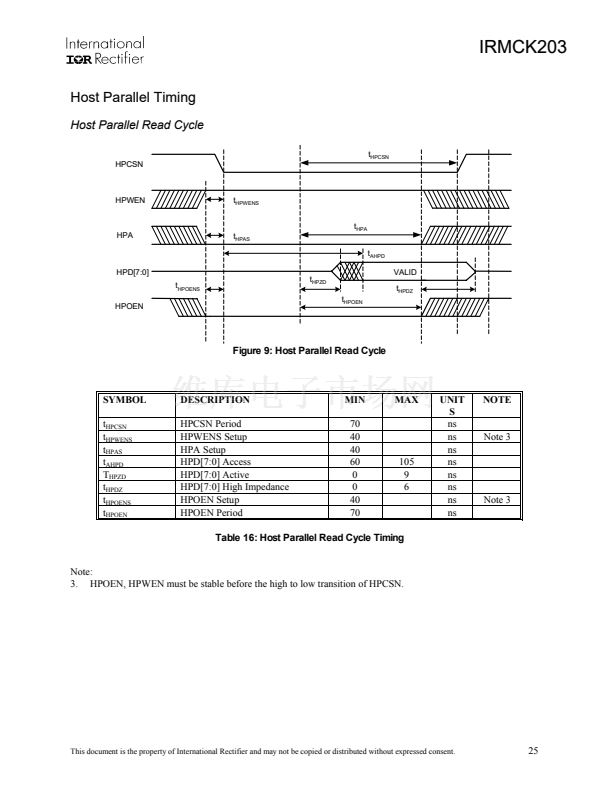

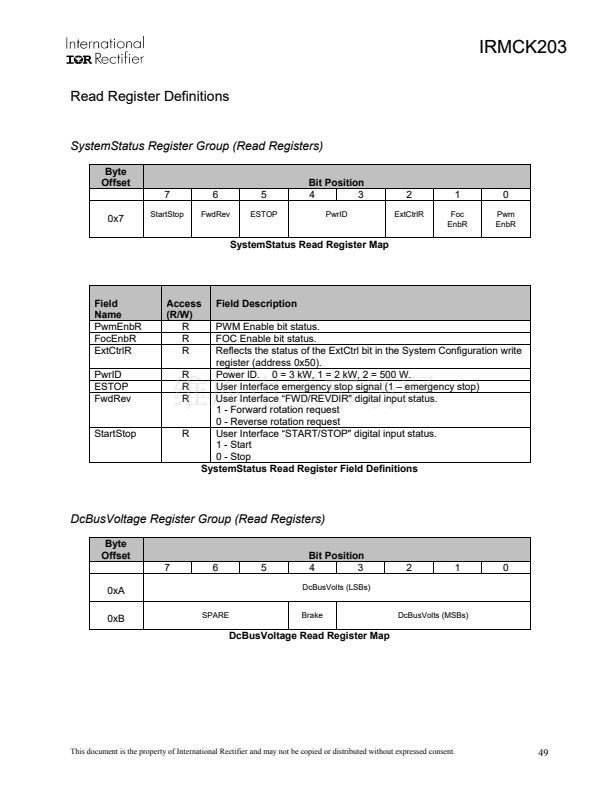

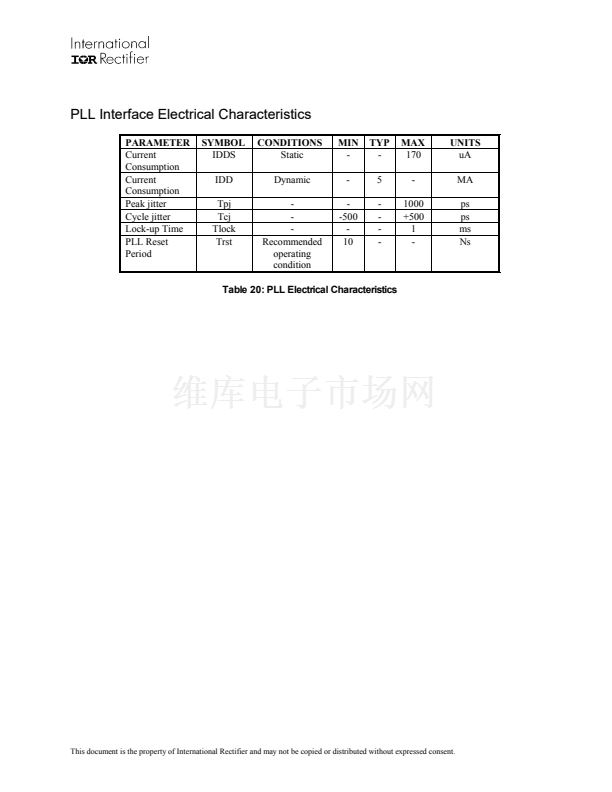

PDF預覽

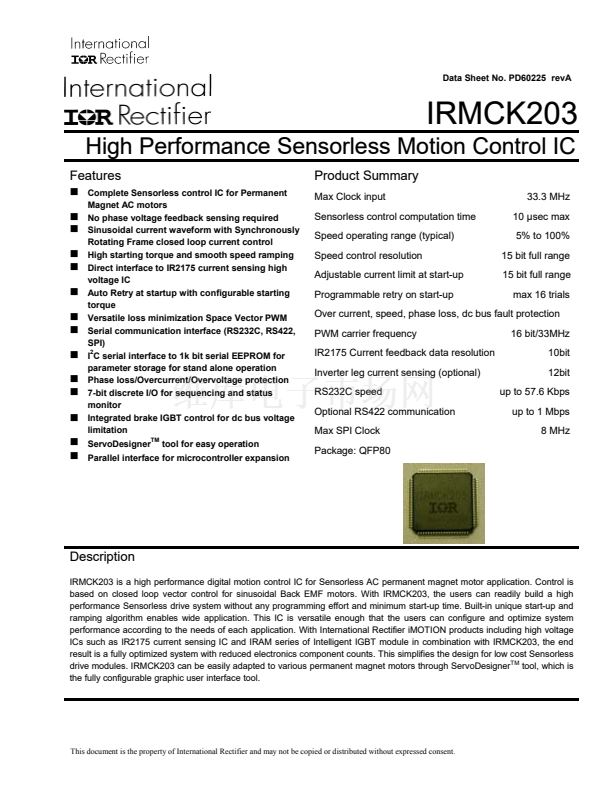

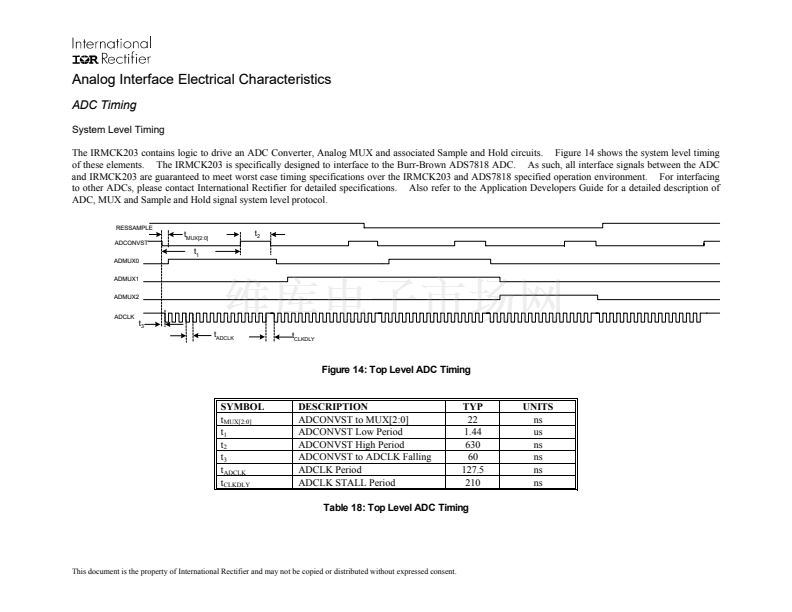

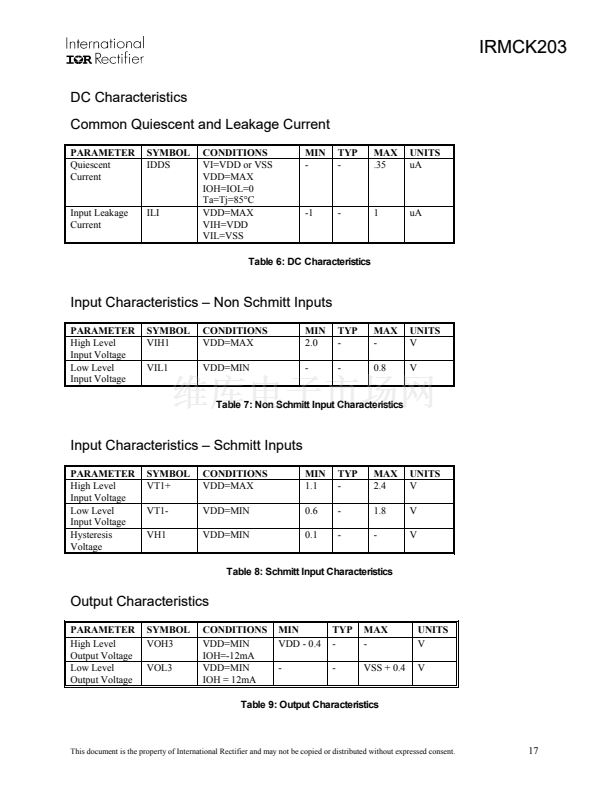

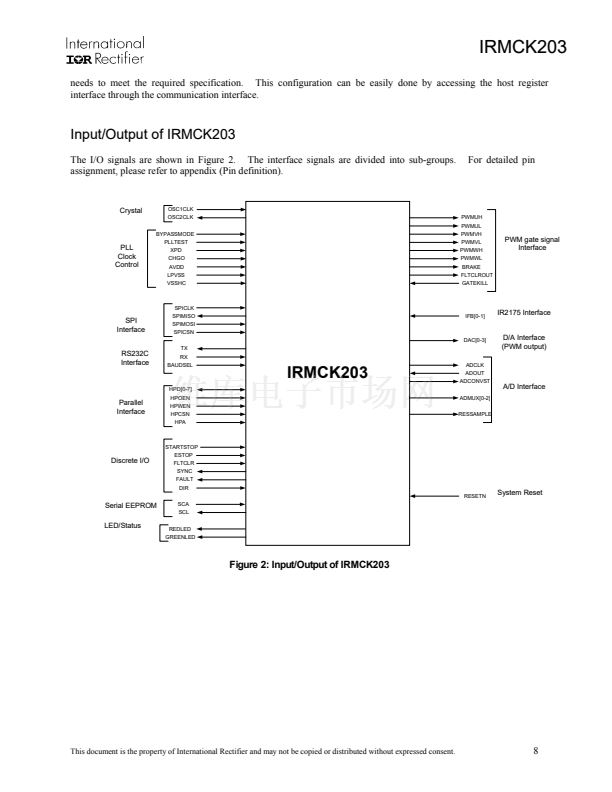

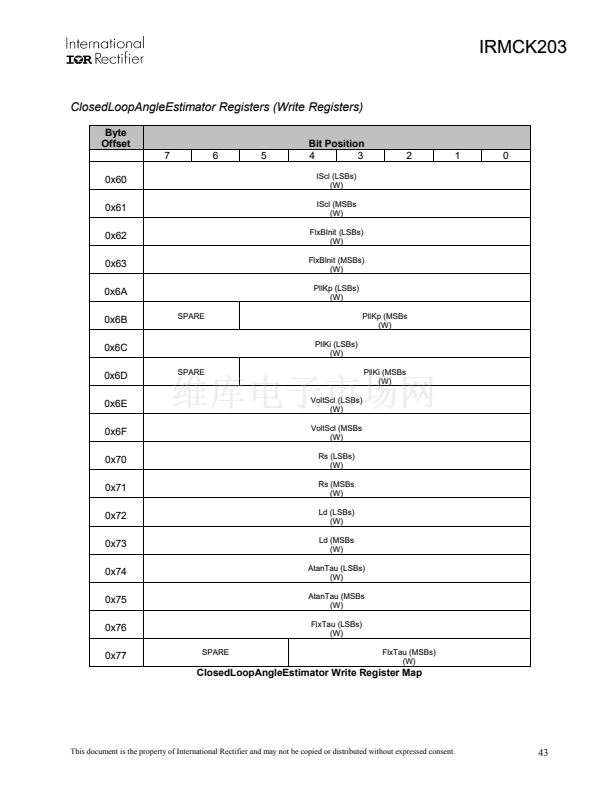

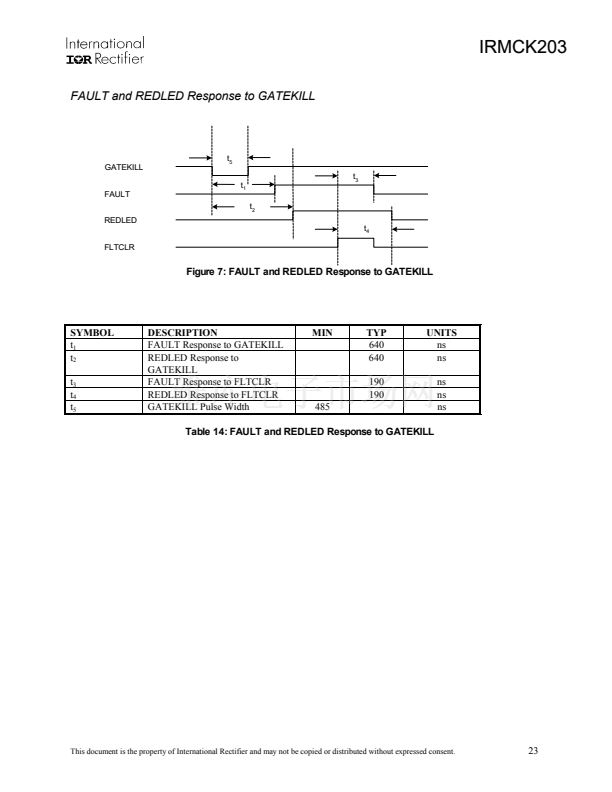

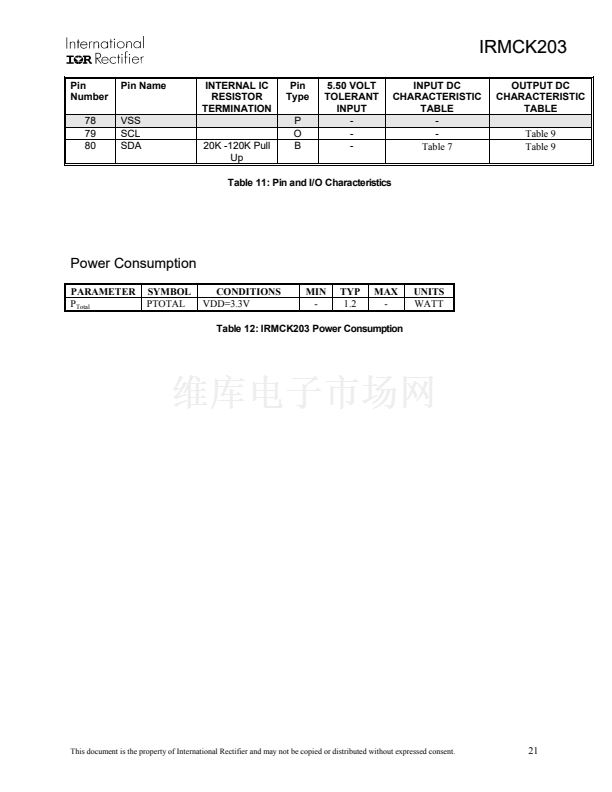

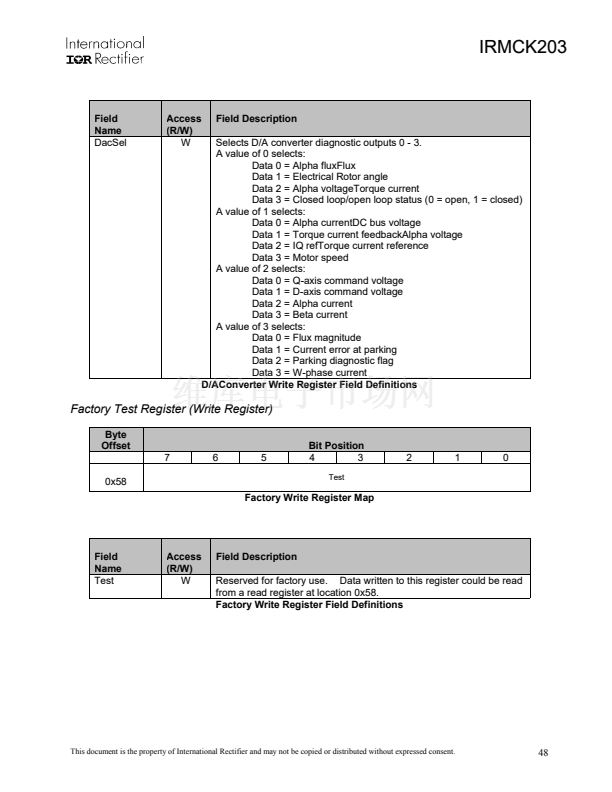

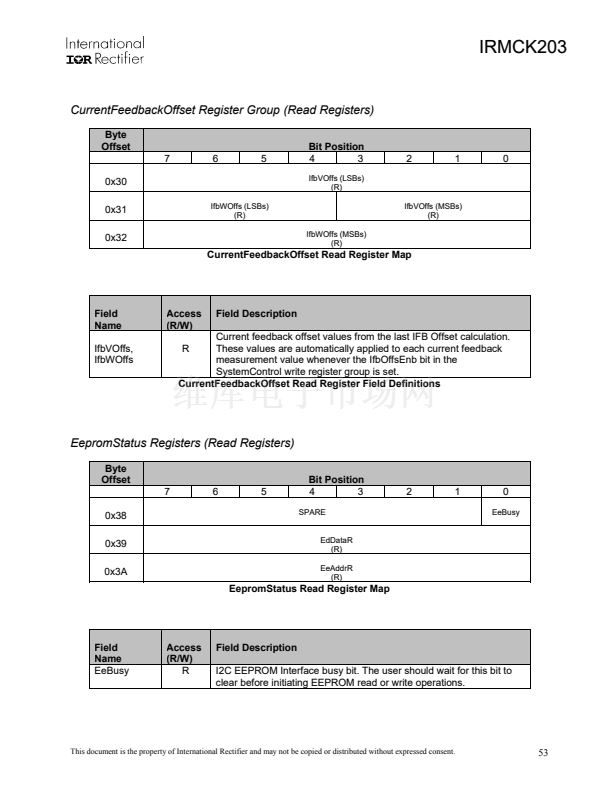

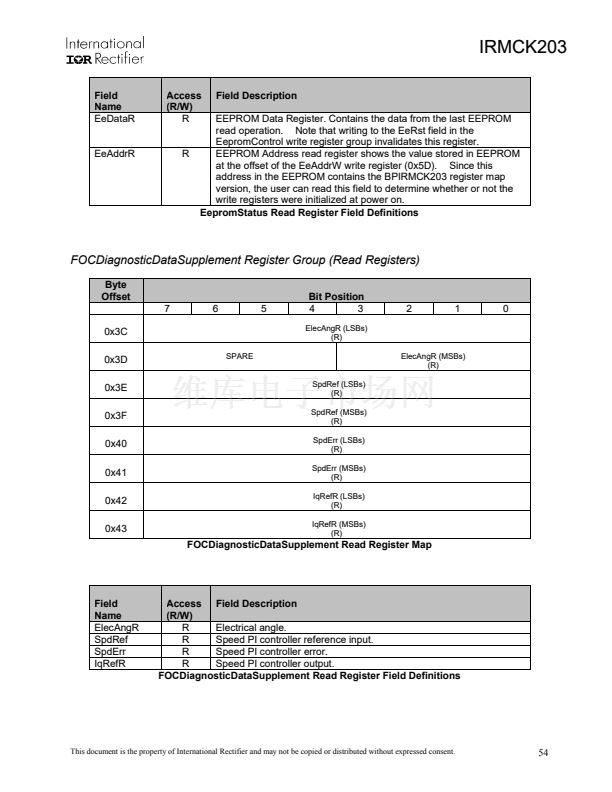

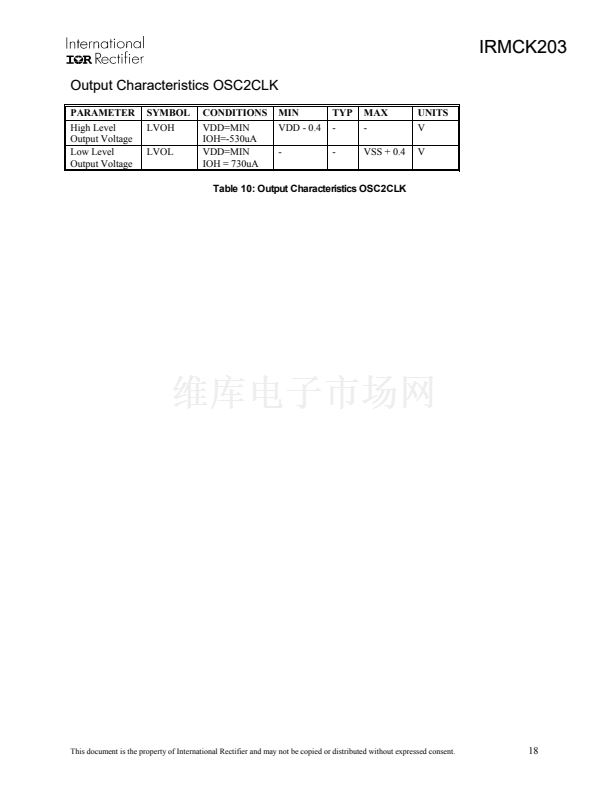

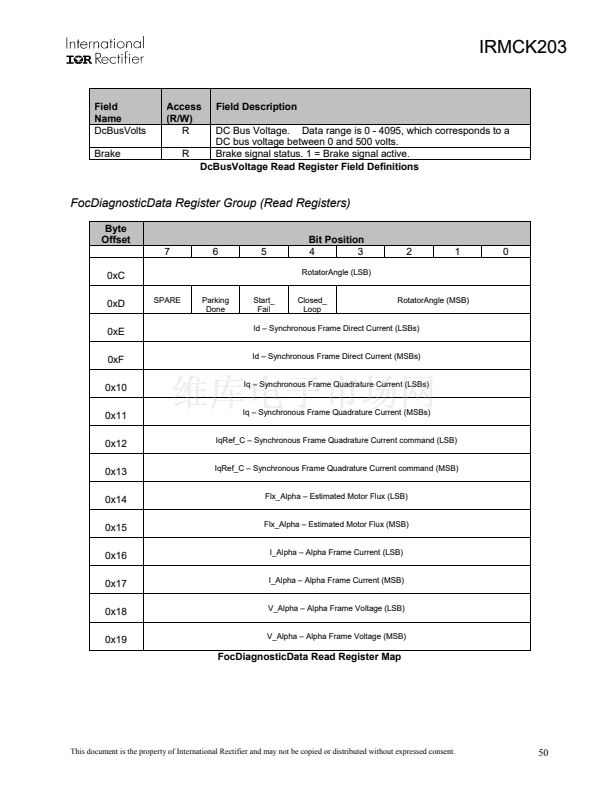

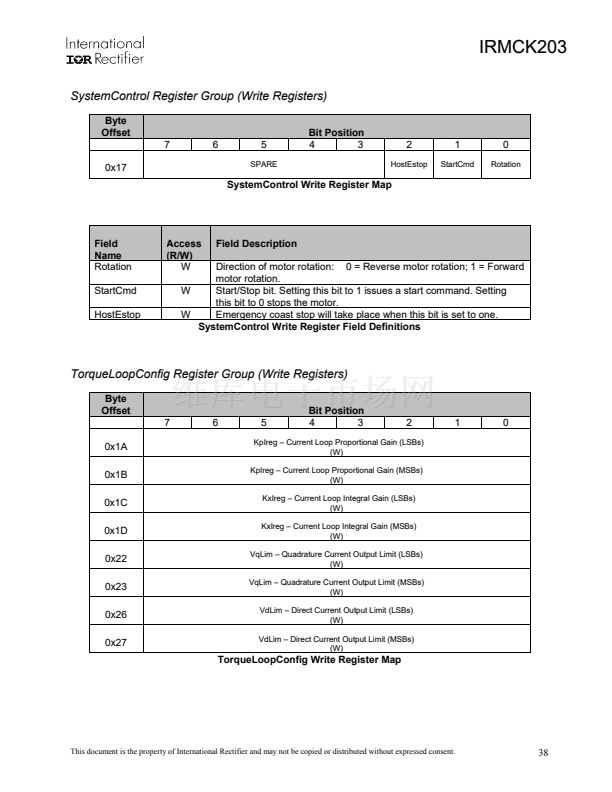

Data Sheet No. PD60225
revA
IRMCK203
High Performance Sensorless Motion Control IC
Features
!
!
!
!
!
!
!
!
!
!
!
!
!
!
Complete Sensorless control IC for Permanent
Magnet AC motors
No phase voltage feedback sensing required
Sinusoidal current waveform with Synchronously
Rotating Frame closed loop current control
High starting torque and smooth speed ramping
Direct interface to IR2175 current sensing high
voltage IC

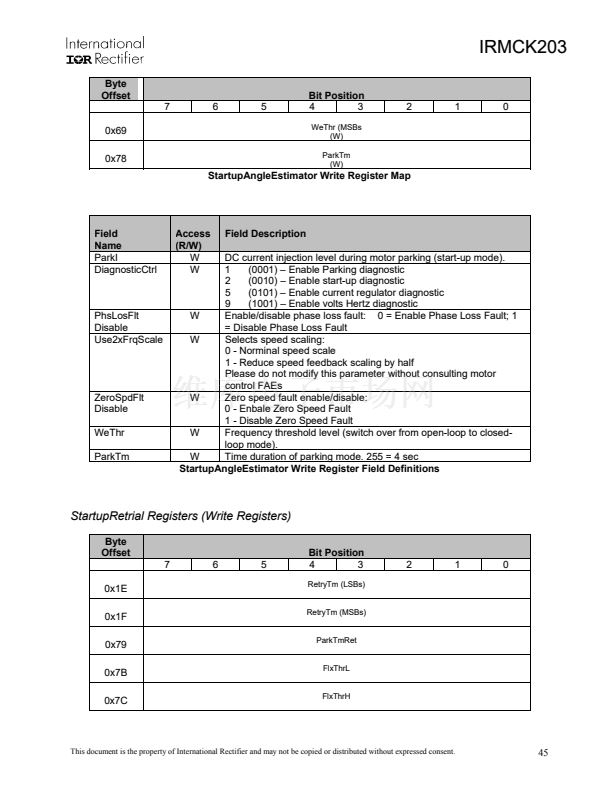

Auto Retry at startup with configurable starting
torque
Versatile loss minimization Space Vector PWM

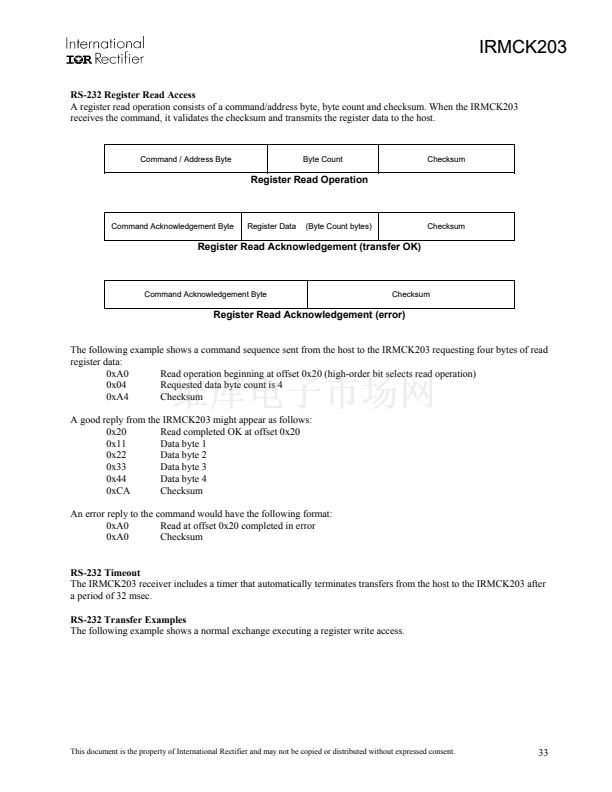

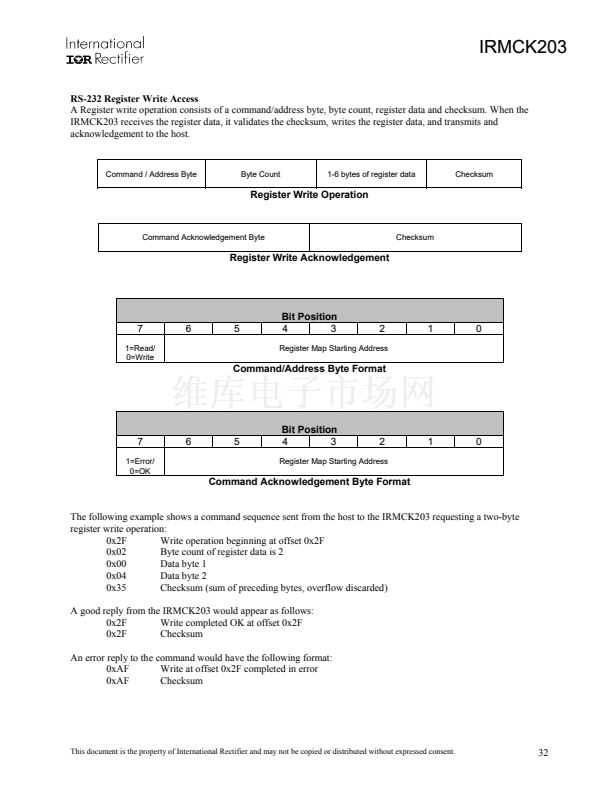

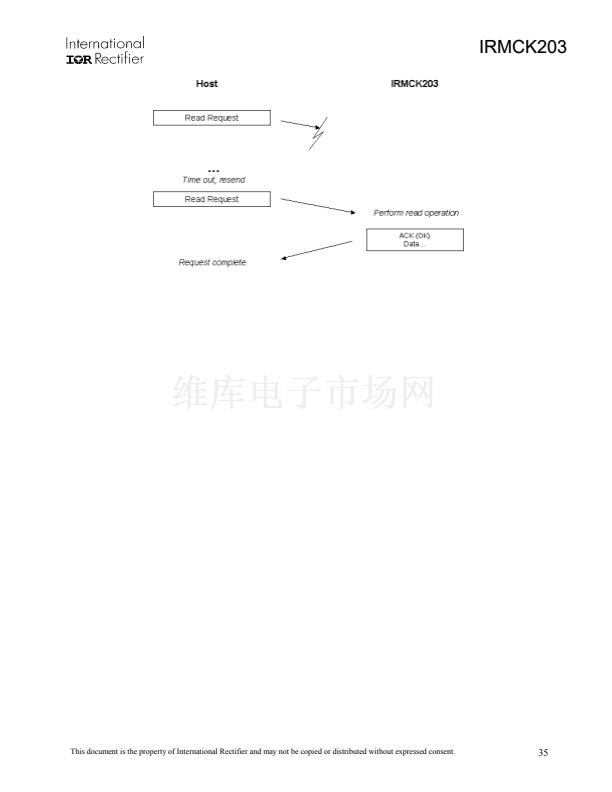

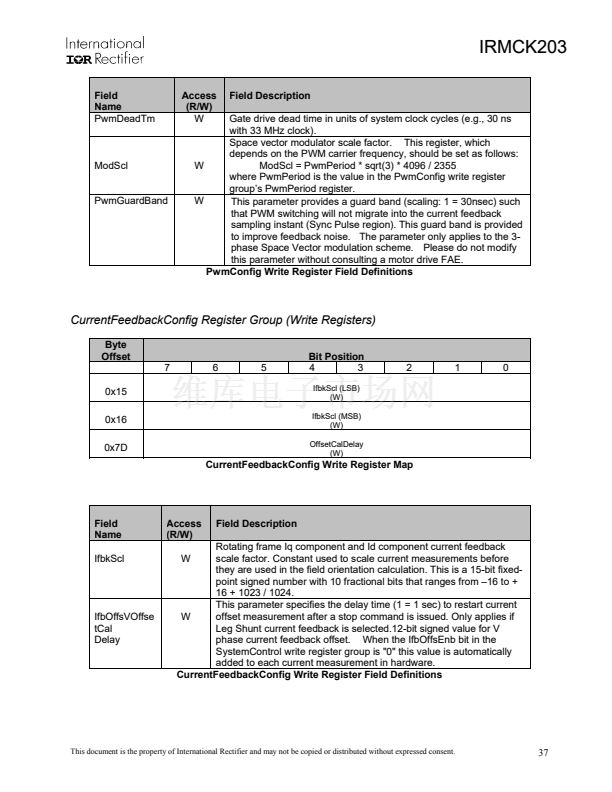

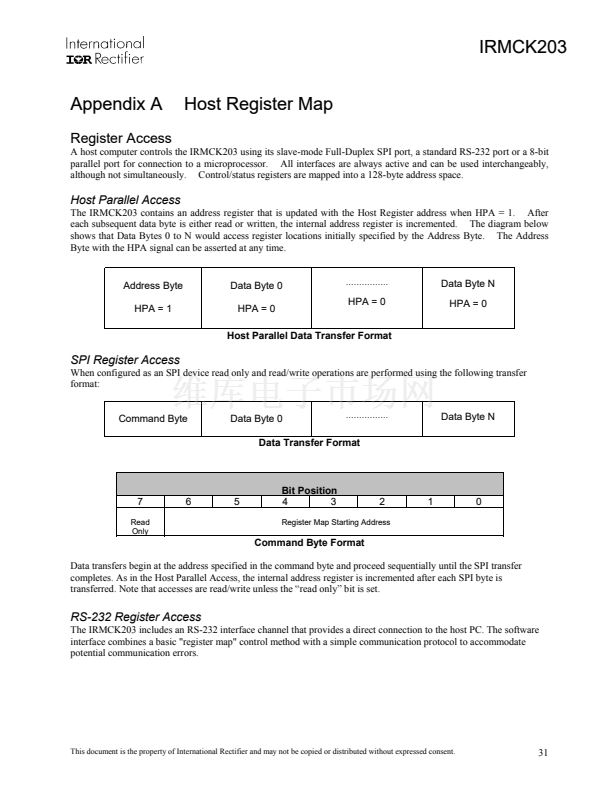

Serial communication interface (RS232C, RS422,
SPI)
2

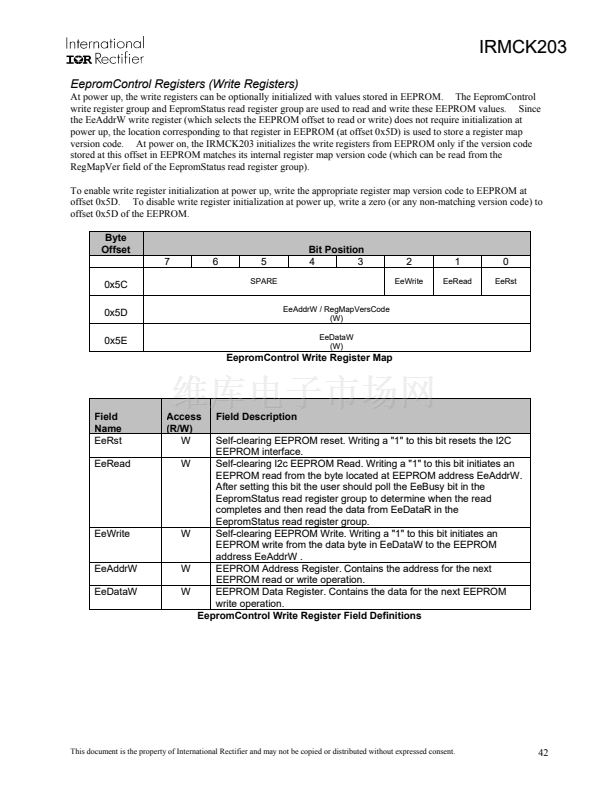

I C serial interface to 1k bit serial EEPROM for
parameter storage for stand alone operation

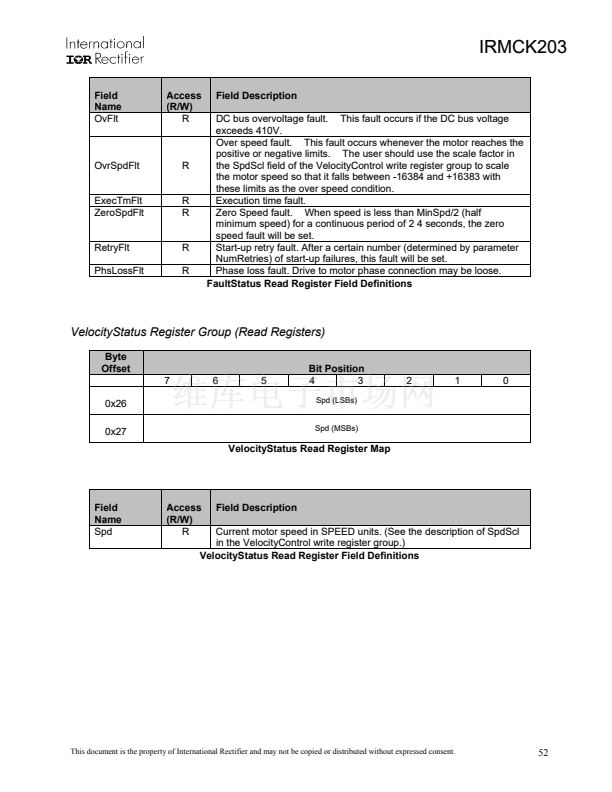

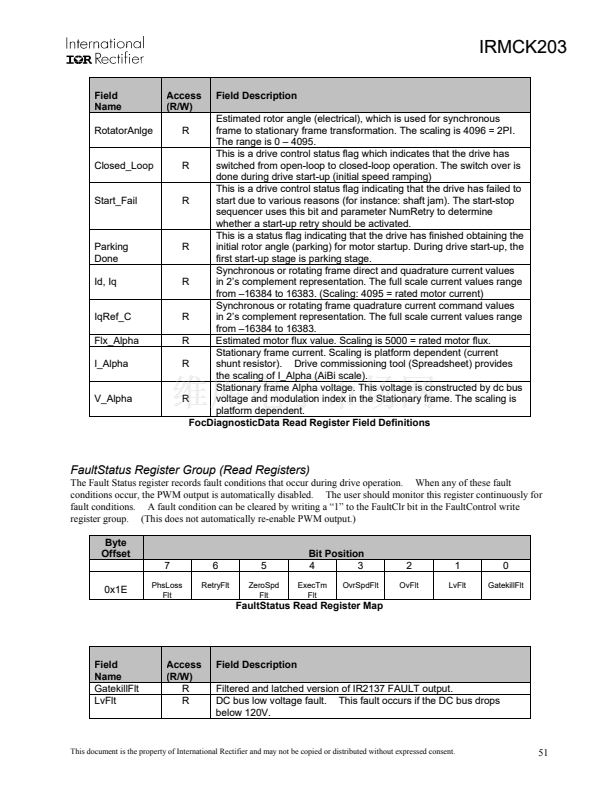

Phase loss/Overcurrent/Overvoltage protection
7-bit discrete I/O for sequencing and status
monitor
Integrated brake IGBT control for dc bus voltage
limitation
ServoDesigner
TM
Product Summary

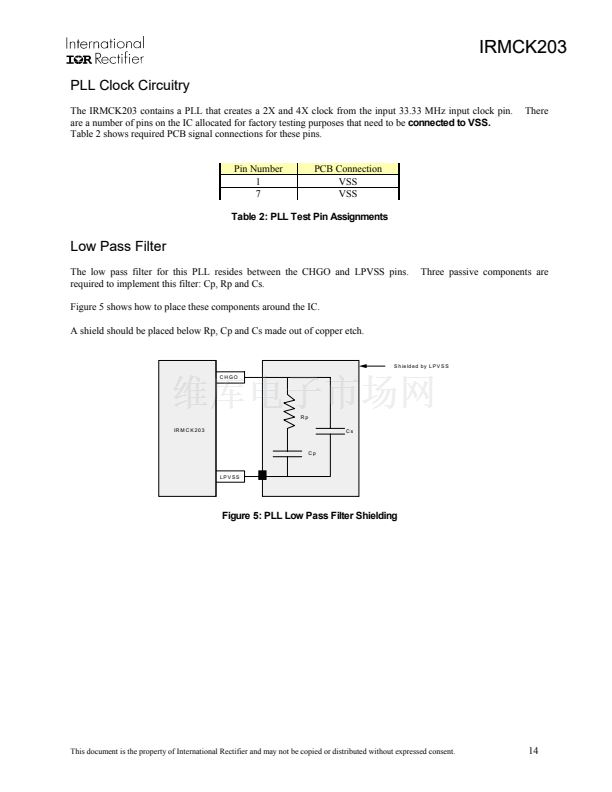

Max Clock input
Sensorless control computation time
Speed operating range (typical)

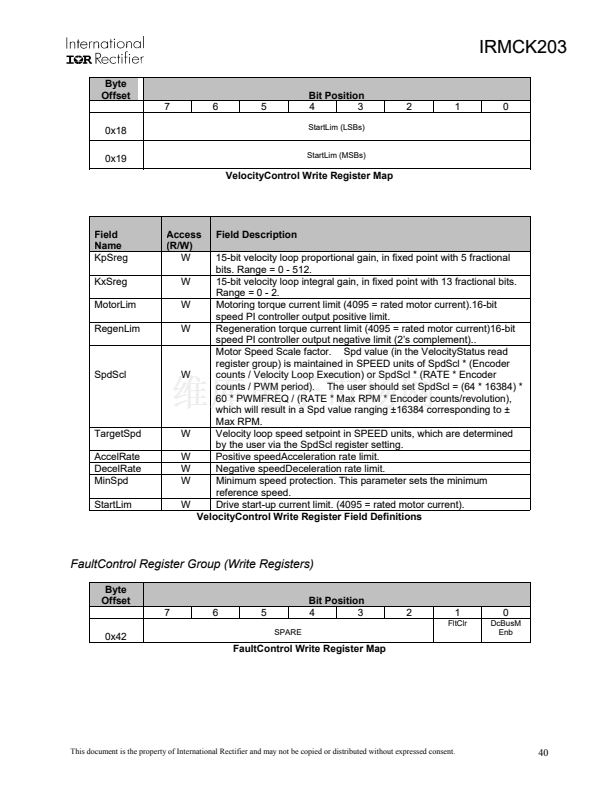

Speed control resolution
Adjustable current limit at start-up
Programmable retry on start-up
33.3 MHz
10 碌sec max
5% to 100%
15 bit full range
15 bit full range
max 16 trials
Over current, speed, phase loss, dc bus fault protection

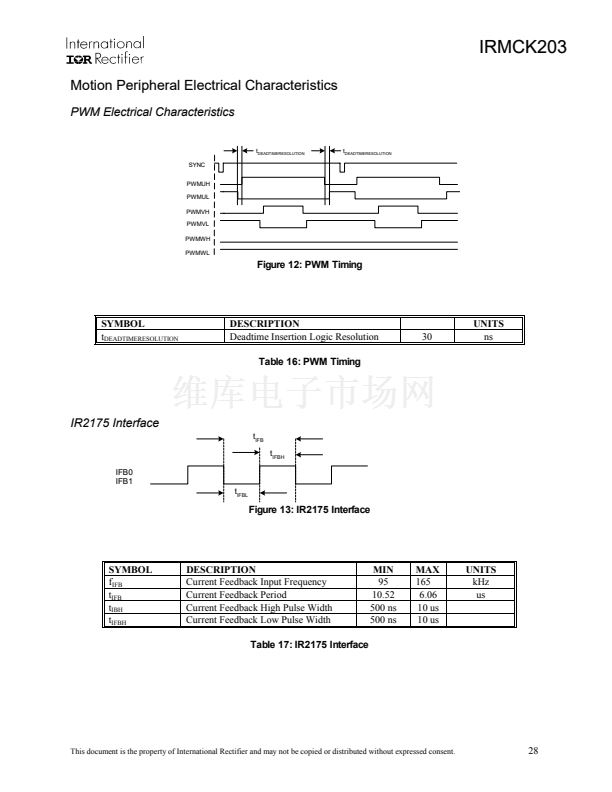

PWM carrier frequency
IR2175 Current feedback data resolution
Inverter leg current sensing (optional)
RS232C speed
Optional RS422 communication

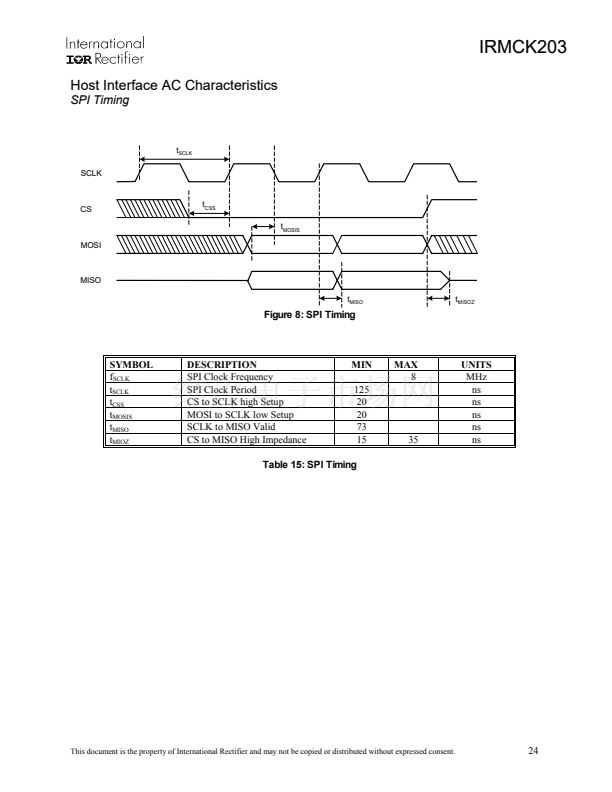

Max SPI Clock

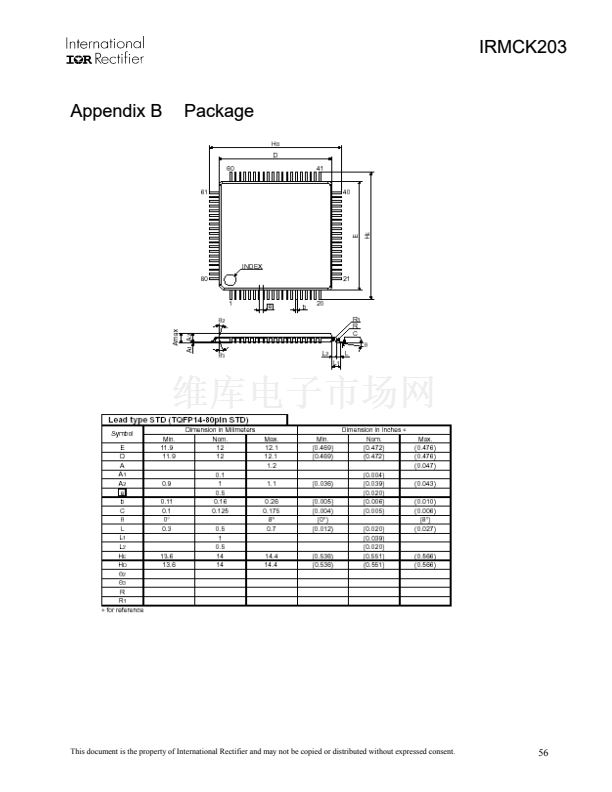

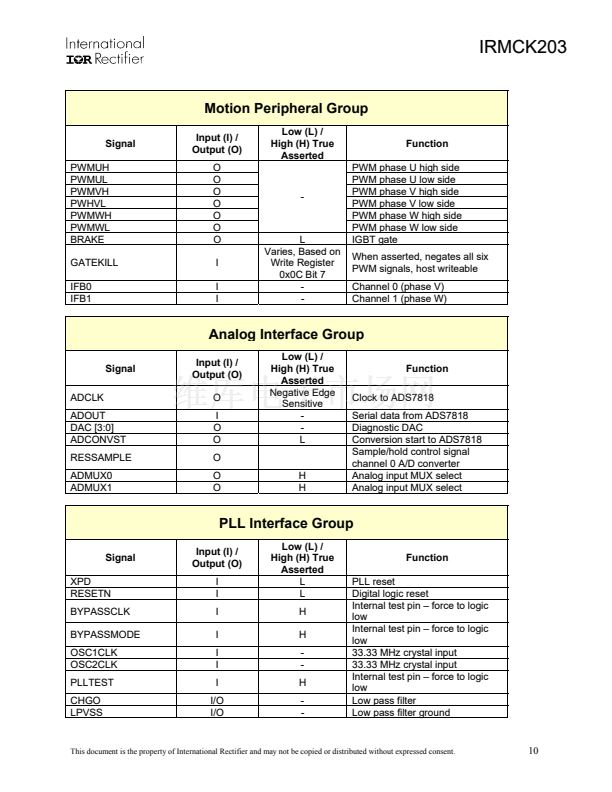

Package: QFP80
16 bit/33MHz
10bit
12bit
up to 57.6 Kbps
up to 1 Mbps
8 MHz
tool for easy operation

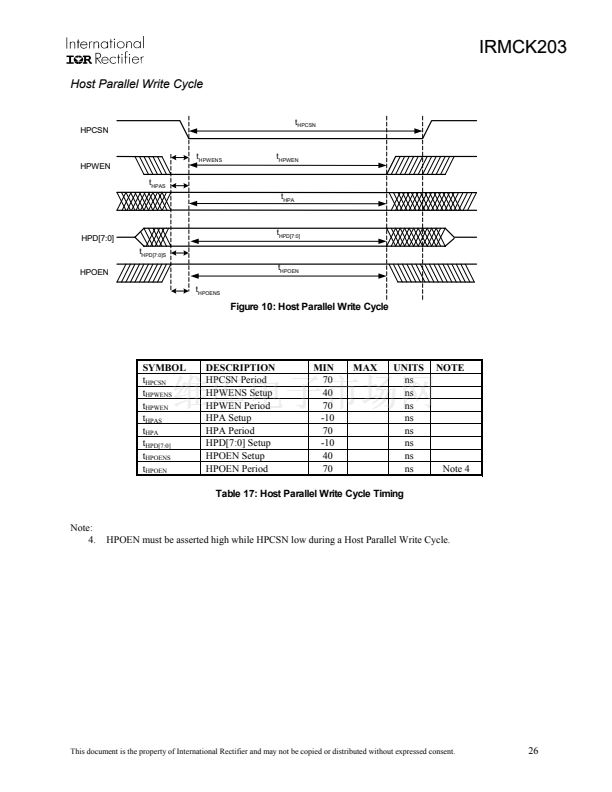

Parallel interface for microcontroller expansion

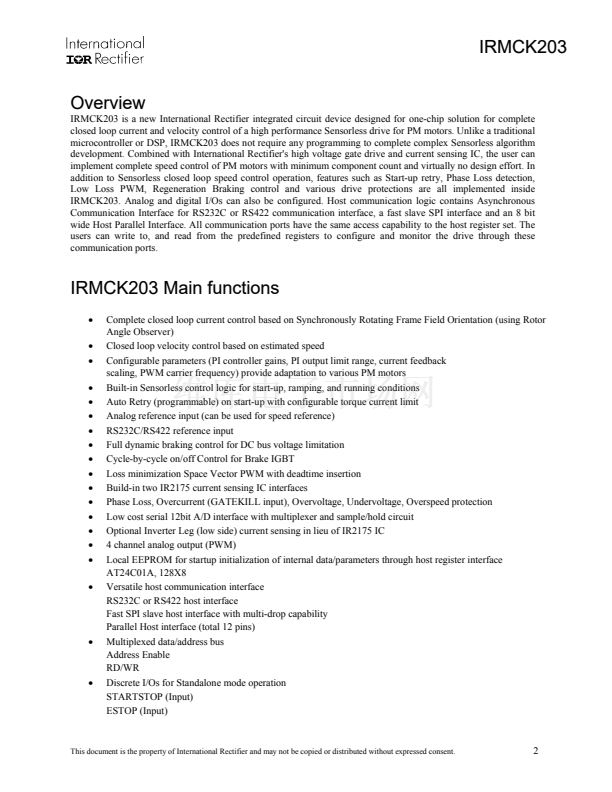

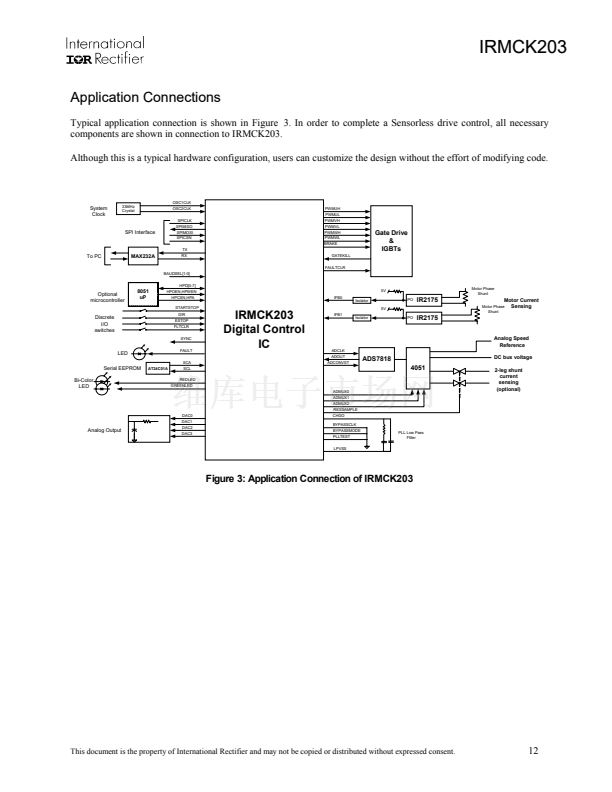

Description

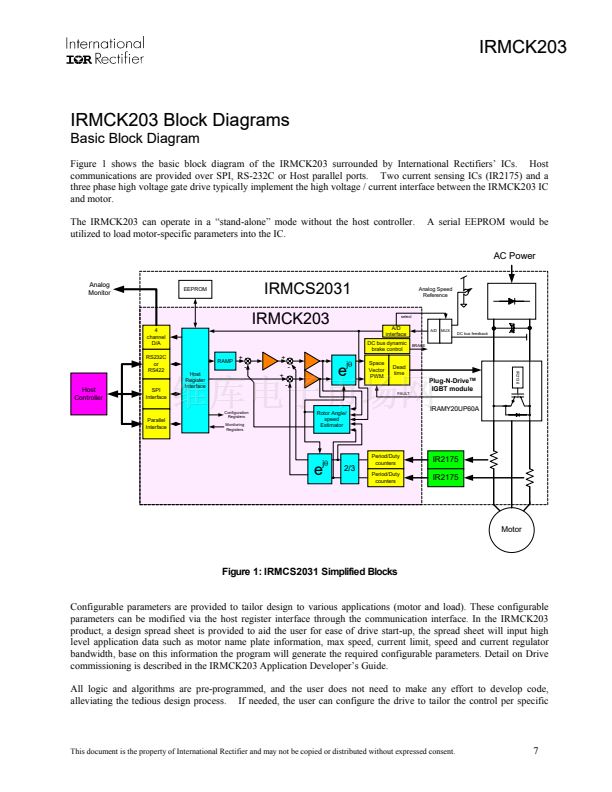

IRMCK203 is a high performance digital motion control IC for Sensorless AC permanent magnet motor application. Control is
based on closed loop vector control for sinusoidal Back EMF motors. With IRMCK203, the users can readily build a high
performance Sensorless drive system without any programming effort and minimum start-up time. Built-in unique start-up and
ramping algorithm enables wide application. This IC is versatile enough that the users can configure and optimize system
performance according to the needs of each application. With International Rectifier iMOTION products including high voltage
ICs such as IR2175 current sensing IC and IRAM series of Intelligent IGBT module in combination with IRMCK203, the end
result is a fully optimized system with reduced electronics component counts. This simplifies the design for low cost Sensorless
drive modules. IRMCK203 can be easily adapted to various permanent magnet motors through ServoDesigner
TM
tool, which is
the fully configurable graphic user interface tool.
This document is the property of International Rectifier and may not be copied or distributed without expressed consent.

IRMCK203 產品屬性

  • 1,190

  • 集成電路 (IC)

  • PMIC - 電機和風扇控制器，驅動器

  • -

  • AC 電機控制器，永磁

  • 可供

  • 1

  • -

  • -

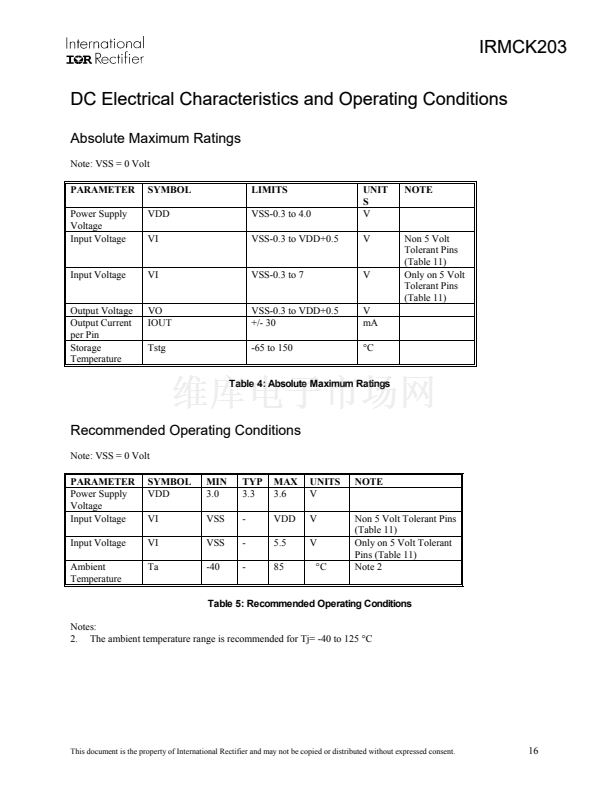

  • 3 V ~ 3.6 V

  • -40°C ~ 85°C

  • 表面貼裝

  • 80-TQFP

  • 80-QFP（12x12）

  • 托盤

  • IRMCS2033-ND - DESIGN BOARD FOR IRMCK203IRMCS2031-ND - SYSTEM DEVEL IMOTION SENSORLESS

  • *IRMCK203
