IRLIB4343 Datasheet

  • IRLIB4343

  • DIGITAL AUDIO MOSFET

  • 233.13KB

  • 7頁

  • IRF

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

PD - 95857A
DIGITAL AUDIO MOSFET
IRLIB4343
Key Parameters
Features
l
l
l
l
l
l
l
Advanced Process Technology
Key Parameters Optimized for Class-D Audio
Amplifier Applications
Low R
DSON
for Improved Efficiency
Low Q
g
and Q
sw
for Better THD and Improved
Efficiency
Low Q
rr
for Better THD and Lower EMI
175擄C Operating Junction Temperature for
Ruggedness
Repetitive Avalanche Capability for Robustness and
Reliability
V
DS
R
DS(ON)
typ. @ V
GS
= 10V
R
DS(ON)
typ. @ V
GS
= 4.5V
Q
g
typ.
T
J
max
55
42
57
28
175
V
m:
m:
nC
擄C
D
G
S

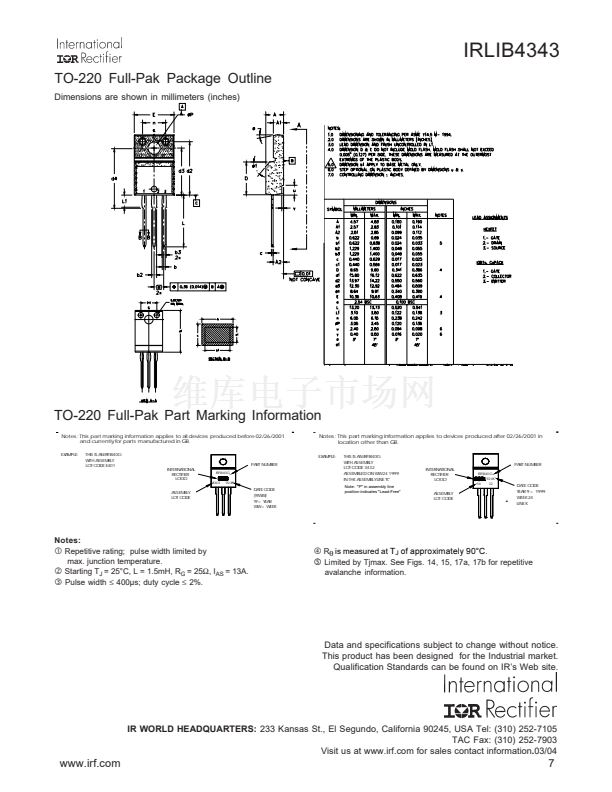

TO-220 Full-Pak
Description
This Digital Audio HEXFET
廬
is specifically designed for Class-D audio amplifier applications. This MosFET utilizes the latest
processing techniques to achieve low on-resistance per silicon area. Furthermore, Gate charge, body-diode reverse recovery
and internal Gate resistance are optimized to improve key Class-D audio amplifier performance factors such as efficiency, THD
and EMI. Additional features of this MosFET are 175擄C operating junction temperature and repetitive avalanche capability.
These features combine to make this MosFET a highly efficient, robust and reliable device for Class-D audio amplifier
applications.
Absolute Maximum Ratings
Parameter
V
DS
V
GS
I
D
@ T
C
= 25擄C
I
D
@ T
C
= 100擄C
I
DM
P
D
@T
C
= 25擄C
P
D
@T
C
= 100擄C
T
J
T
STG
Drain-to-Source Voltage
Gate-to-Source Voltage
Continuous Drain Current, V
GS
@ 10V
Continuous Drain Current, V
GS
@ 10V
Pulsed Drain Current
Power Dissipation
Power Dissipation
Linear Derating Factor
Operating Junction and
Storage Temperature Range
Mounting torque, 6-32 or M3 screw
Max.
55
鹵20
19
13
80
39
20
0.26
-40 to + 175
10lb in (1.1N m)
Units
V
A
c
W
W/擄C
擄C
x
x
Thermal Resistance
R
胃JC
R
胃JA
Junction-to-Case
f
Parameter
Typ.
鈥撯€撯€?/div>
鈥撯€撯€?/div>
Max.
3.84
65
Units
擄C/W
Junction-to-Ambient
f
Notes
聛
through
聟
are on page 7
www.irf.com
1
3/31/04

IRLIB4343 產品屬性

  • 50

  • 分離式半導體產品

  • FET - 單

  • HEXFET®

  • MOSFET N 通道，金屬氧化物

  • 邏輯電平門

  • 55V

  • 19A

  • 50 毫歐 @ 4.7A，10V

  • 1V @ 250µA

  • 42nC @ 10V

  • 740pF @ 50V

  • 39W

  • 通孔

  • TO-220-3 整包

  • TO-220AB 整包

  • 管件

  • *IRLIB4343
