IRIS4011 Datasheet

  • IRIS4011

  • INTEGRATED SWITCHER

  • 6頁

  • IRF

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

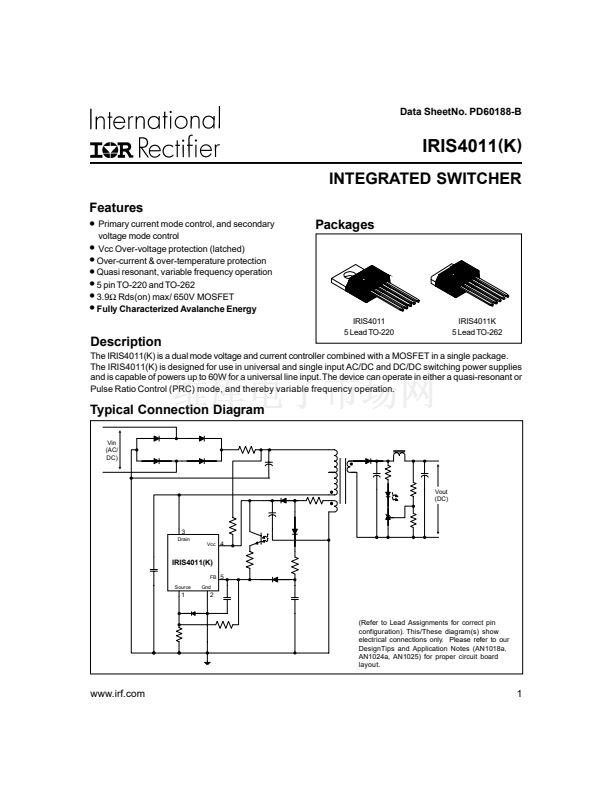

Data SheetNo. PD60188-B
IRIS4011
(
K
)
INTEGRATED SWITCHER
Features
鈥?/div>
Primary current mode control, and secondary
voltage mode control
鈥?/div>
Vcc Over-voltage protection (latched)
鈥?/div>
Over-current & over-temperature protection
鈥?/div>
Quasi resonant, variable frequency operation
鈥?/div>
5 pin TO-220 and TO-262
鈥?/div>
3.9鈩?Rds(on) max/ 650V MOSFET
鈥?/div>
Fully Characterized Avalanche Energy
IRIS4011
5 Lead TO-220
IRIS4011K
5 Lead TO-262
Packages
Description
The IRIS4011(K) is a dual mode voltage and current controller combined with a MOSFET in a single package.
The IRIS4011(K) is designed for use in universal and single input AC/DC and DC/DC switching power supplies
and is capable of powers up to 60W for a universal line input. The device can operate in either a quasi-resonant or
Pulse Ratio Control (PRC) mode, and thereby variable frequency operation.
Typical Connection Diagram
Vin
(AC/
DC)
Vout
(DC)
3
Drain
Vcc
4
IRIS4011(K)
FB
Source
Gnd
5
1
2
(Refer to Lead Assignments for correct pin
configuration). This/These diagram(s) show
electrical connections only. Please refer to our
DesignTips and Application Notes (AN1018a,
AN1024a, AN1025) for proper circuit board
layout.
www.irf.com
1

IRIS4011 產品屬性

  • 50

  • 集成電路 (IC)

  • PMIC - 穩壓器 - 專用型

  • -

  • 控制器，ACDC、DCDC 切換電源

  • 10 V ~ 16 V

  • 1

  • 650V

  • -20°C ~ 125°C

  • 通孔

  • TO-220-5

  • TO-220AB（5-LEAD）

  • 管件

  • *IRIS4011
