Data Sheet No. PD60183-C
IRIS4007
(
K
)
INTEGRATED SWITCHER
Features
鈥?/div>
Primary current mode control, and secondary
voltage mode control
鈥?/div>
Vcc over-voltage protection (latched)
鈥?/div>
Over-current and over-temperature protection
鈥?/div>
Quasi resonant, variable frequency operation
鈥?/div>
5 pin TO-220 and TO-262 package
鈥?/div>
0.4鈩?Rds(on) max/ 200V MOSFET
鈥?/div>
Fully Characterized Avalanche Energy
Packages
IRIS4007

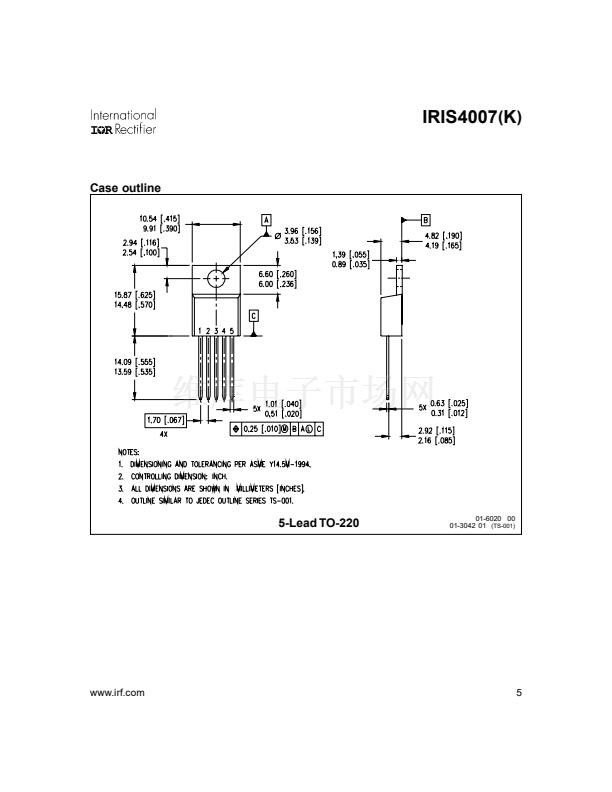

5 Lead TO-220
IRIS4007K

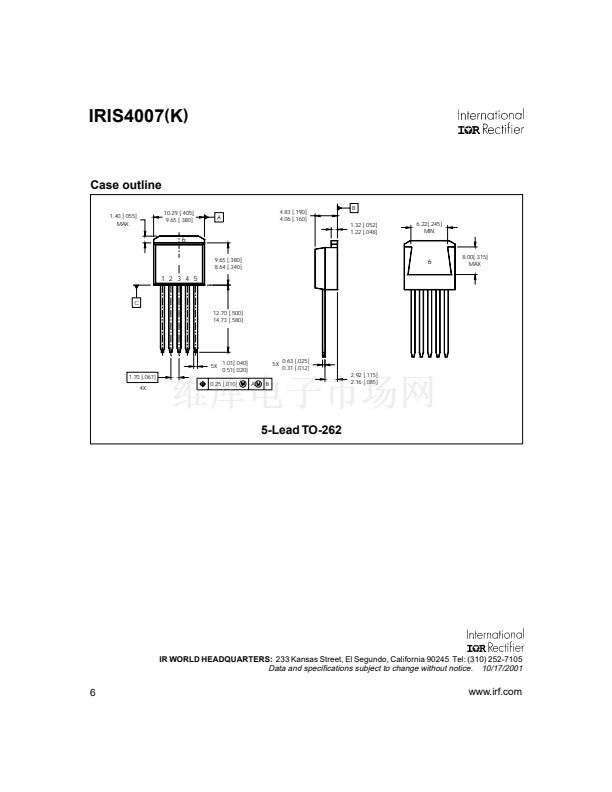

5 Lead TO-262
Descriptions
The IRIS4007(K) is a dual mode voltage and current controller combined with a MOSFET in a single Package.
The IRIS4007(K) are designed for use in AC/DC and DC/DC switching power supplies upto 100VDC nominal
input and is capable of 30W for a nominal 48V input. The device can operate in either a quasi-resonant or Pulse
Ratio Control (PRC) mode, and thereby variable frequency operation.

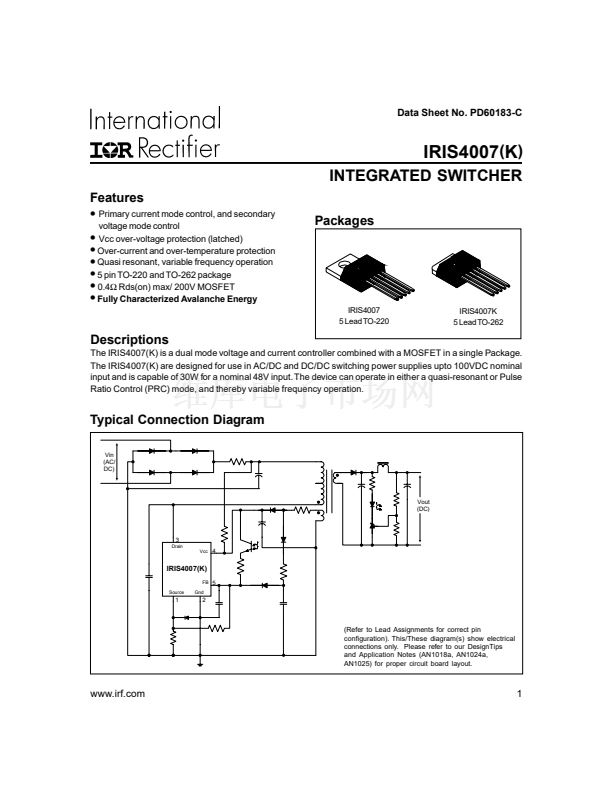

Typical Connection Diagram
Vin
(AC/
DC)
Vout
(DC)
3
Drain
Vcc
4
IRIS4007(K)
FB
Source
Gnd
5
1
2

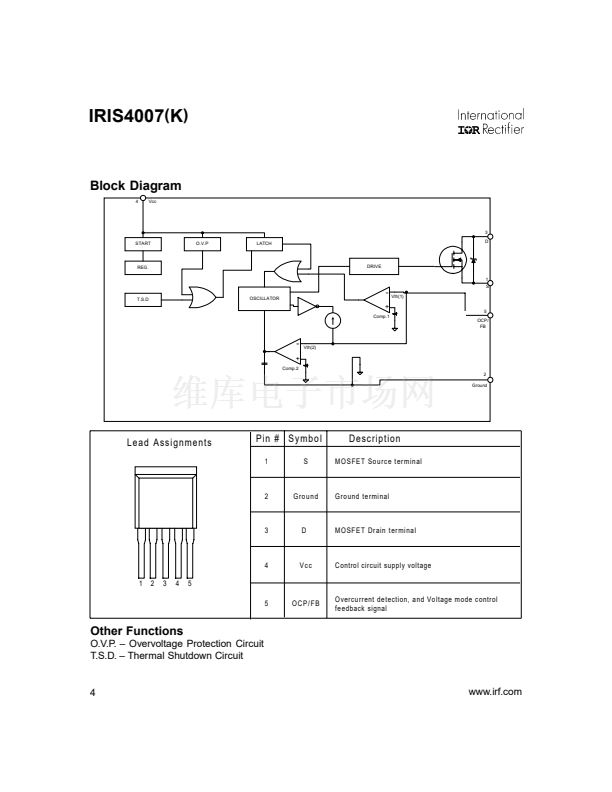

(Refer to Lead Assignments for correct pin
configuration). This/These diagram(s) show electrical
connections only. Please refer to our DesignTips
and Application Notes (AN1018a, AN1024a,
AN1025) for proper circuit board layout.

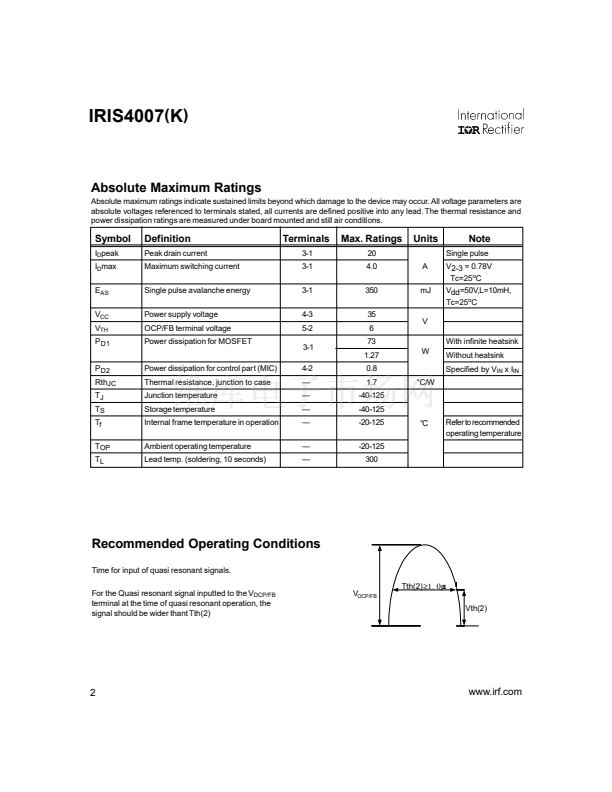

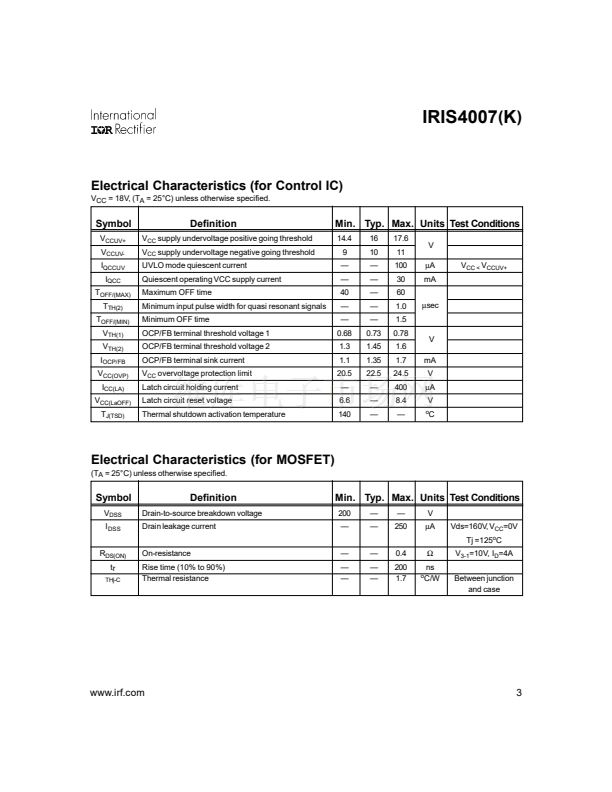

www.irf.com
1

IRIS4007 產品屬性

  • 50

  • 集成電路 (IC)

  • PMIC - 穩壓器 - 專用型

  • -

  • 控制器，ACDC、DCDC 切換電源

  • 10 V ~ 16 V

  • 1

  • 200V

  • -20°C ~ 125°C

  • 通孔

  • TO-220-5

  • TO-220AB（5-LEAD）

  • 管件

  • *IRIS4007
