IRHLUB740Z4 Datasheet

  • IRHLUB740Z4

  • RADIATION HARDENED LOGIC LEVEL POWER MOSFET SURFACE MOUNT (U...

  • 135.85KB

  • 8頁

  • IRF

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

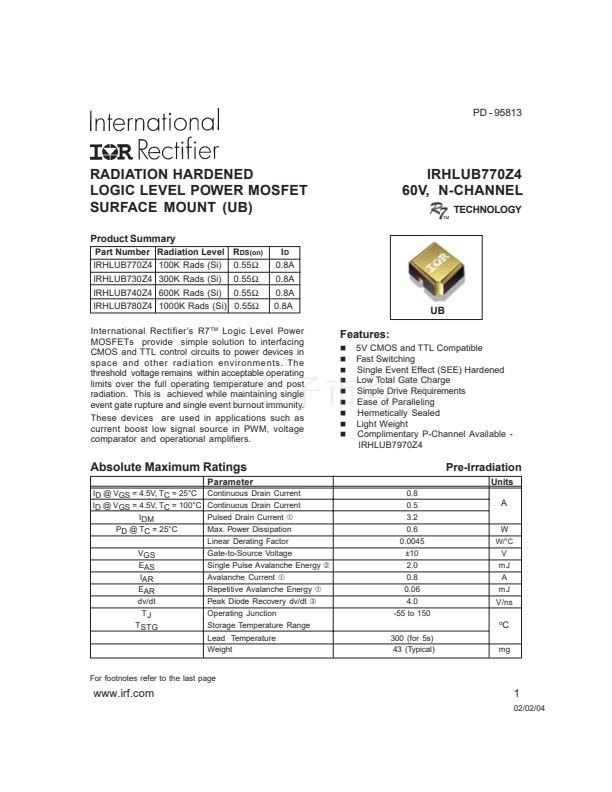

PD - 95813
RADIATION HARDENED
LOGIC LEVEL POWER MOSFET
SURFACE MOUNT (UB)
Product Summary
Part Number Radiation Level R
DS(on)
IRHLUB770Z4 100K Rads (Si) 0.55鈩?/div>
IRHLUB730Z4 300K Rads (Si) 0.55鈩?/div>
IRHLUB740Z4 600K Rads (Si)
0.55鈩?/div>
IRHLUB780Z4 1000K Rads (Si) 0.55鈩?/div>
I
D
0.8A
0.8A
0.8A
0.8A
IRHLUB770Z4
60V, N-CHANNEL
c
TECHNOLOGY
UB
International Rectifier鈥檚 R7
TM
Logic Level Power
MOSFETs provide simple solution to interfacing
CMOS and TTL control circuits to power devices in
space and other radiation environments. The
threshold voltage remains within acceptable operating
limits over the full operating temperature and post
radiation. This is achieved while maintaining single
event gate rupture and single event burnout immunity.
These devices are used in applications such as
current boost low signal source in PWM, voltage
comparator and operational amplifiers.
Features:
n
n
n
n
n
n
n
n
n
5V CMOS and TTL Compatible
Fast Switching
Single Event Effect (SEE) Hardened
Low Total Gate Charge
Simple Drive Requirements
Ease of Paralleling
Hermetically Sealed
Light Weight
Complimentary P-Channel Available -
IRHLUB7970Z4
Absolute Maximum Ratings
Parameter
ID @ VGS = 4.5V, TC = 25擄C Continuous Drain Current
ID @ VGS = 4.5V, TC = 100擄C Continuous Drain Current
IDM
PD @ TC = 25擄C
VGS
EAS
IAR
EAR
dv/dt
TJ
T STG
Pulsed Drain Current
鉃€
Max. Power Dissipation
Linear Derating Factor
Gate-to-Source Voltage
Single Pulse Avalanche Energy
鉃?/div>
Avalanche Current
鉃€
Repetitive Avalanche Energy
鉃€
Peak Diode Recovery dv/dt
鉃?/div>
Operating Junction
Storage Temperature Range
Lead Temperature
Weight
300 (for 5s)
43 (Typical)
0.8
0.5
3.2
0.6
0.0045
鹵10
2.0
0.8
0.06
4.0
-55 to 150
Pre-Irradiation
Units
A
W
W/擄C
V
mJ
A
mJ
V/ns
o
C
mg
For footnotes refer to the last page
www.irf.com
1
02/02/04
