IRHF7330SE Datasheet

  • IRHF7330SE

  • 400V 100kRad Hi-Rel Single N-Channel SEE Hardened MOSFET in ...

  • 8頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

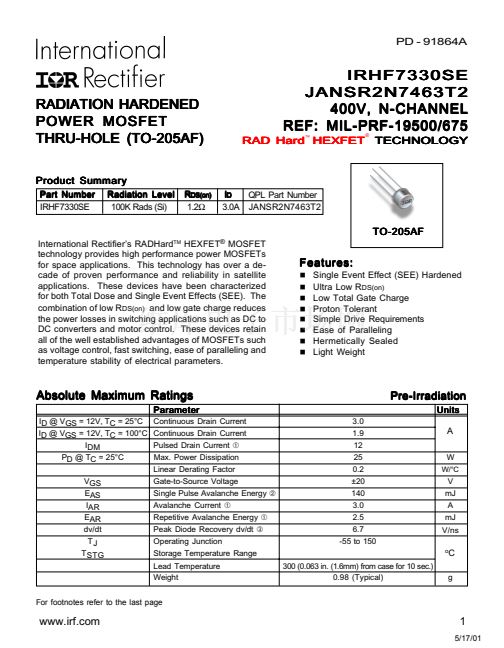

PD - 91864A
RADIATION HARDENED
POWER MOSFET
THRU-HOLE (TO-205AF)
Product Summary
Part Number
IRHF7330SE
Radiation Level
100K Rads (Si)
R
DS(on)
1.2鈩?/div>
RAD Hard HEXFET
TECHNOLOGY
IRHF7330SE
JANSR2N7463T2
400V, N-CHANNEL
REF: MIL-PRF-19500/675
聶
廬
QPL Part Number
I
D
3.0A JANSR2N7463T2
International Rectifier聮s RADHard
MOSFET
technology provides high performance power MOSFETs
for space applications. This technology has over a de-
cade of proven performance and reliability in satellite
applications. These devices have been characterized
for both Total Dose and Single Event Effects (SEE). The
combination of low R
DS(on)
and low gate charge reduces
the power losses in switching applications such as DC to
DC converters and motor control. These devices retain
all of the well established advantages of MOSFETs such
as voltage control, fast switching, ease of paralleling and
temperature stability of electrical parameters.
TM
HEXFET
廬
TO-205AF
Features:
!
!
!
!
!
!
!
!
Single Event Effect (SEE) Hardened
Ultra Low R
DS(on)
Low Total Gate Charge
Proton Tolerant
Simple Drive Requirements
Ease of Paralleling
Hermetically Sealed
Light Weight
Absolute Maximum Ratings
Parameter
ID @ VGS = 12V, TC = 25擄C Continuous Drain Current
ID @ VGS = 12V, TC = 100擄C Continuous Drain Current
IDM
PD @ TC = 25擄C
VGS
EAS
IAR
EAR
dv/dt
TJ
TSTG
Pulsed Drain Current
鉃€
Max. Power Dissipation
Linear Derating Factor
Gate-to-Source Voltage
Single Pulse Avalanche Energy
鉃?/div>
Avalanche Current
鉃€
Repetitive Avalanche Energy
鉃€
Peak Diode Recovery dv/dt
鉃?/div>
Operating Junction
Storage Temperature Range
Lead Temperature
Weight

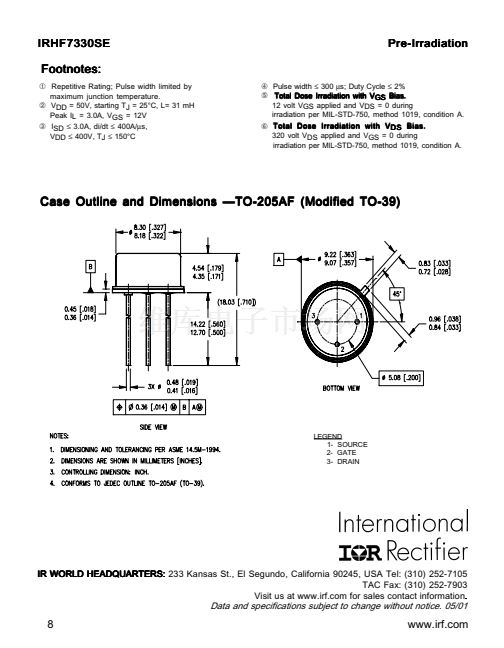

For footnotes refer to the last page
3.0
1.9
12
25
0.2
鹵20
140
3.0
2.5
6.7
-55 to 150
Pre-Irradiation
Units
A
W
W/擄C
V
mJ
A
mJ
V/ns
o
C
300 (0.063 in. (1.6mm) from case for 10 sec.)
0.98 (Typical)
g
www.irf.com
1
5/17/01
