IRHF57214SE Datasheet

  • IRHF57214SE

  • RADIATION HARDENED POWER MOSFET THRU-HOLE (TO-39)

  • 8頁

  • IRF

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

PD-97063
RADIATION HARDENED
POWER MOSFET
THRU-HOLE (TO-39)
Product Summary
Part Number Radiation Level
IRHF57214SE 100K Rads (Si)
R
DS(on)
1.55鈩?/div>
I
D
2.2A
IRHF57214SE
250V, N-CHANNEL
5

TECHNOLOGY
聶
International Rectifier鈥檚 R5
TM
technology provides
high performance power MOSFETs for space
applications. These devices have been characterized
for Single Event Effects (SEE) with useful performance
up to an LET of 80 (MeV/(mg/cm
2
)). The combination
of low R
DS(on)
and low gate charge reduces the
power losses in switching applications such as DC
to DC converters and motor control. These devices
retain all of the well established advantages of
MOSFETs such as voltage control, fast switching,
ease of paralleling and temperature stability of
electrical parameters.
TO-39
Features:
n
n
n
n
n
n
n
n
Single Event Effect (SEE) Hardened
Ultra Low R
DS(on)
Identical Pre- and Post-Electrical Test Conditions
Repetitive Avalanche Ratings
Dynamic dv/dt Ratings
Simple Drive Requirements
Ease of Paralleling
Hermetically Sealed
Absolute Maximum Ratings
Parameter
ID @ VGS = 12V, TC = 25擄C
ID @ VGS = 12V, TC = 100擄C
IDM
PD @ TC = 25擄C
VGS
EAS
IAR
EAR
dv/dt
TJ
T STG
Continuous Drain Current
Continuous Drain Current
Pulsed Drain Current
脌
Max. Power Dissipation
Linear Derating Factor
Gate-to-Source Voltage
Single Pulse Avalanche Energy
脕
Avalanche Current
脌
Repetitive Avalanche Energy
脌
Peak Diode Recovery dv/dt
脗
Operating Junction
Storage Temperature Range
Lead Temperature
Weight

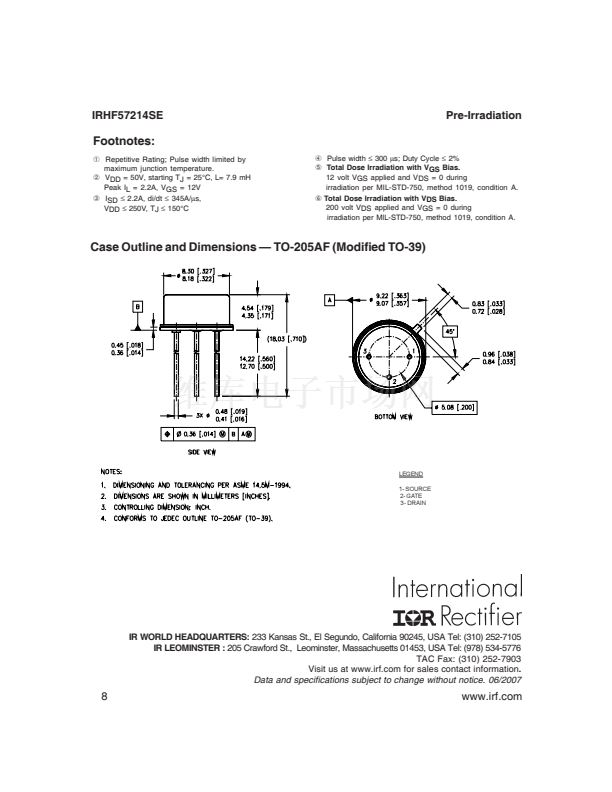

For footnotes refer to the last page
2.2
1.4
8.8
15
0.12
鹵20
19
2.2
1.5
13.8
-55 to 150
Pre-Irradiation
Units
A
W
W/擄C
V
mJ
A
mJ
V/ns
擄C
300 (0.063 in./1.6mm from case for 10s)
0.98 (Typical)
g
www.irf.com
1
06/05/07
