0.18鈩?/div>
14.48 (0.570)
14.99 (0.590)
4.83 (0.190)
5.33 (0.210)
9.14 (0.360)
min.
1.27 (0.050)
1.91 (0.750)
11.94 (0.470)
12.70 (0.500)
24.13 (0.95)
24.63 (0.97)
1
2
0.71 (0.028)
0.86 (0.034)

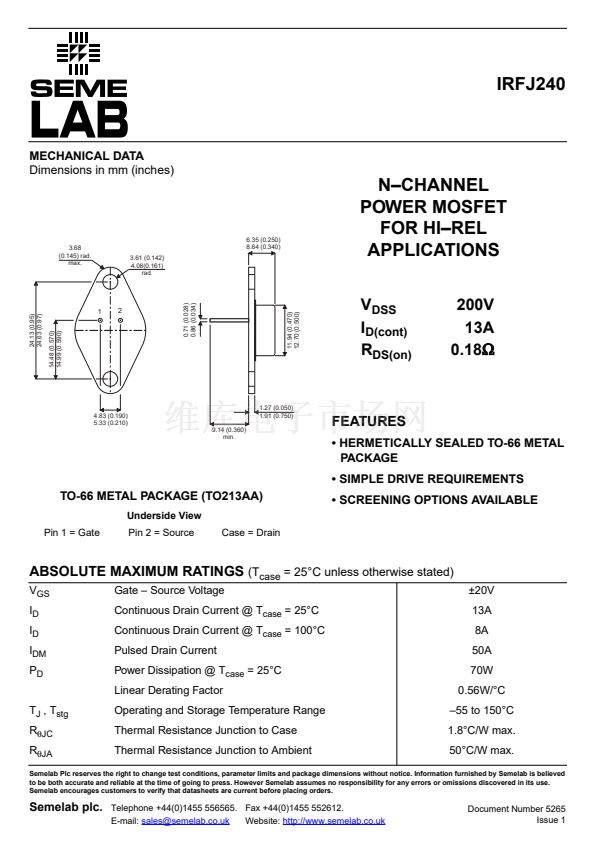

FEATURES
鈥?HERMETICALLY SEALED TO-66 METAL
PACKAGE
鈥?SIMPLE DRIVE REQUIREMENTS
TO-66 METAL PACKAGE (TO213AA)
Underside View
Pin 1 = Gate
Pin 2 = Source
Case = Drain
鈥?SCREENING OPTIONS AVAILABLE
ABSOLUTE MAXIMUM RATINGS
(T
case
= 25擄C unless otherwise stated)
V
GS
I
D
I
D
I
DM
P
D
T
J
, T
stg
R
胃JC
R
胃JA
Gate 鈥?Source Voltage
Continuous Drain Current @ T
case
= 25擄C
Continuous Drain Current @ T
case
= 100擄C
Pulsed Drain Current
Power Dissipation @ T
case
= 25擄C
Linear Derating Factor
Operating and Storage Temperature Range
Thermal Resistance Junction to Case
Thermal Resistance Junction to Ambient
鹵20V
13A
8A
50A
70W
0.56W/擄C
鈥?5 to 150擄C
1.8擄C/W max.
50擄C/W max.
Semelab Plc reserves the right to change test conditions, parameter limits and package dimensions without notice. Information furnished by Semelab is believed
to be both accurate and reliable at the time of going to press. However Semelab assumes no responsibility for any errors or omissions discovered in its use.
Semelab encourages customers to verify that datasheets are current before placing orders.
Semelab plc.
Telephone +44(0)1455 556565. Fax +44(0)1455 552612.
E-mail:
sales@semelab.co.uk
Website:
http://www.semelab.co.uk
Document Number 5265
Issue 1
