Bulletin I0201J rev. A 02/97
IR370BG12DCB
PHASE CONTROL THYRISTORS
Square 370 mils
4"
1200 V
Glassivated MESA
Junction Size:
Wafer Size:
V
RRM
Class:
Passivation Process:
Reference IR Packaged Part:
IRKT56 Series
Major Ratings and Characteristics
Parameters
V
TM
V
RRM
I
GT
V
GT
I
H
I
L
Maximum On-state Voltage
Reverse Breakdown Voltage
Max. Required DC Gate Current to Trigger
Max. Required DC Gate Voltage to Trigger
Holding Current Range
Maximum Latching Current
Units
1.2 V
1200 V
150 mA
2V
5 to 200 mA
400 mA
Test Conditions
T
J
= 25擄C, I
T
= 25 A
T
J
= 25擄C, I
RRM
= 100 碌A(chǔ)
(1)
T
J
= 25擄 C, anode supply = 6 V, resistive load
T
J
= 25擄 C, anode supply = 6 V, resistive load
Anode supply = 6 V, resistive load
Anode supply = 6 V, resistive load
(1)
Nitrogen flow on die edge.
Mechanical Characteristics
Nominal Back Metal Composition, Thickness
Nominal Front Metal Composition, Thickness
Chip Dimensions

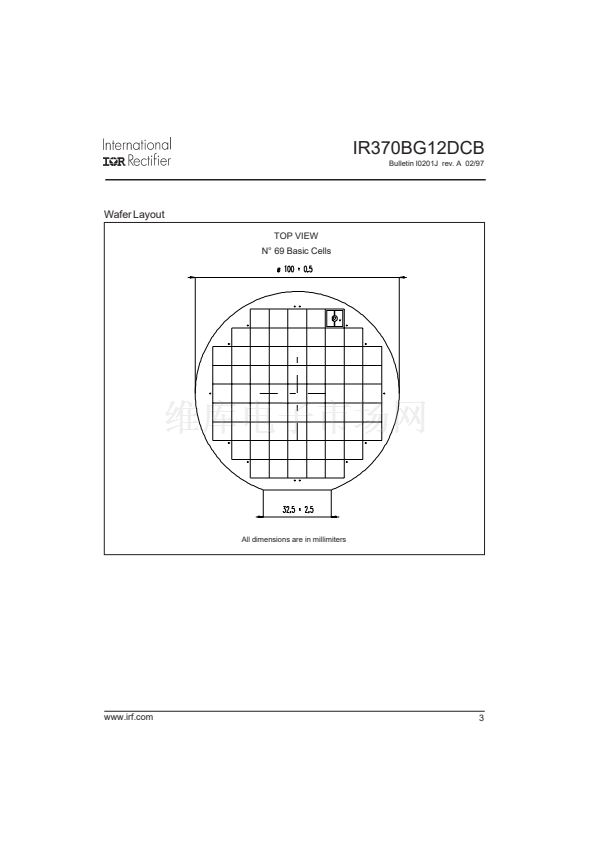

Wafer Diameter
Wafer Thickness
Maximum Width of Sawing Line
Reject Ink Dot Size
Ink Dot Location
Recommended Storage Environment
Cr - Ni - Ag (1 KA - 4 KA - 6 KA)
100% Al, (20 碌m)

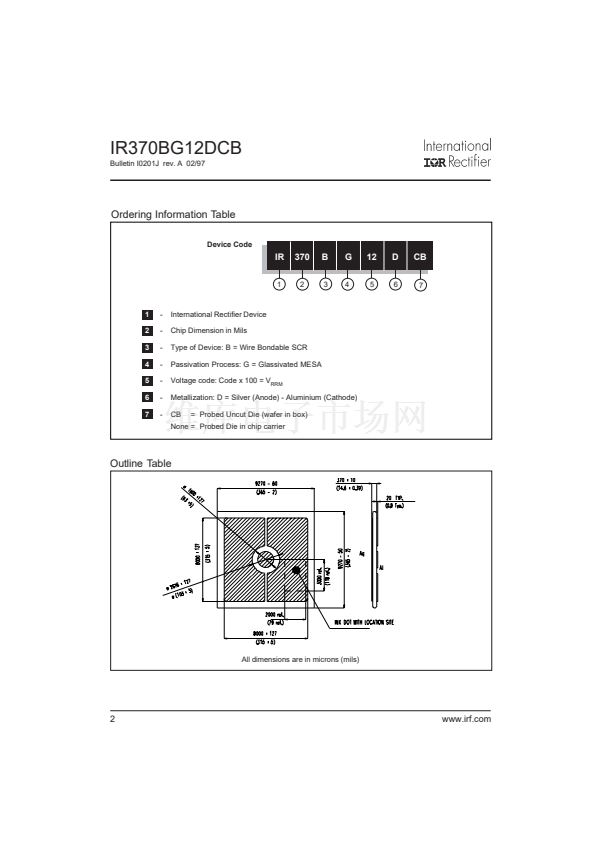

370 x 370 mils (see drawing)
100 mm, with std. <110> flat
370 碌m 鹵 10 碌m
130 碌m
0.25 mm diameter minimum
See drawing
Storage in original container, in dessicated
nitrogen, with no contamination
