Preliminary Data Sheet No. PD60030-M
IR2213(
S
)
HIGH AND LOW SIDE DRIVER
Features
鈥?/div>
Floating channel designed for bootstrap operation
Fully operational to +1200V
Tolerant to negative transient voltage
dV/dt immune
Gate drive supply range from 12 to 20V
Undervoltage lockout for both channels
3.3V logic compatible
Separate logic supply range from 3.3V to 20V
Logic and power ground 鹵5V offset
CMOS Schmitt-triggered inputs with pull-down
Cycle by cycle edge-triggered shutdown logic
Matched propagation delay for both channels
Product Summary
V
OFFSET
I
O
+/-
V
OUT
t
on/off
(typ.)
Delay Matching
1200V max.
1.7A / 2A
12 - 20V
280 & 225 ns
30 ns
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
Outputs in phase with inputs
Packages
Description
The IR2213(S) is a high voltage, high speed power
MOSFET and IGBT driver with independent high and
low side referenced output channels. Proprietary
HVIC and latch immune CMOS technologies enable
16-Lead SOIC
(wide body)
ruggedized monolithic construction. Logic inputs are
14-Lead PDIP
compatible with standard CMOS or LSTTL outputs,
down to 3.3V logic. The output drivers feature a high
pulse current buffer stage designed for minimum driver cross-conduction. Propagation delays are matched to
simplify use in high frequency applications. The floating channel can be used to drive an N-channel power
MOSFET or IGBT in the high side configuration which operates up to 1200 volts.
Typical Connection
up to 1200V
HO
V
DD
HIN
SD
LIN
V
SS
V
CC
V
DD
HIN
SD
LIN
V
SS
V
CC
COM
LO
V
B
V
S
TO
LOAD
(Refer to Lead Assignments for correct pin configuration). This/These diagram(s) show electrical

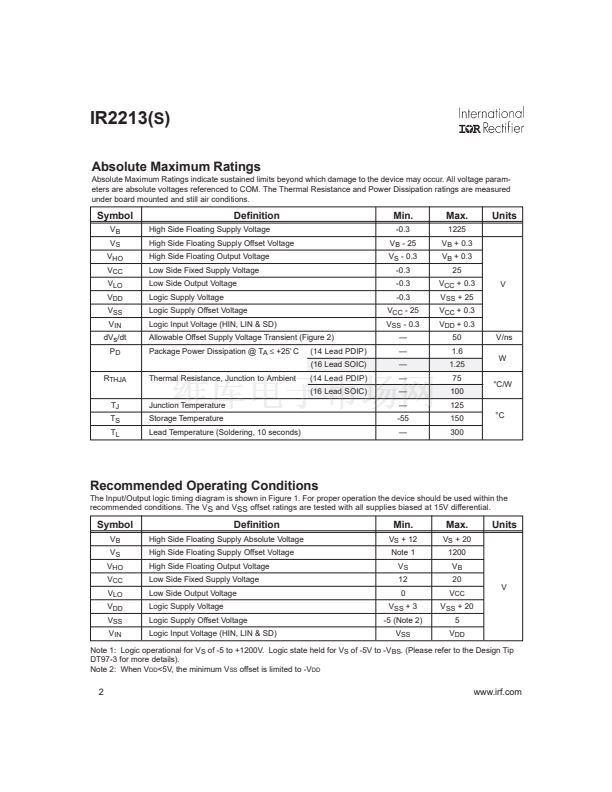

connections only. Please refer to our Application Notes and DesignTips for proper circuit board layout.
