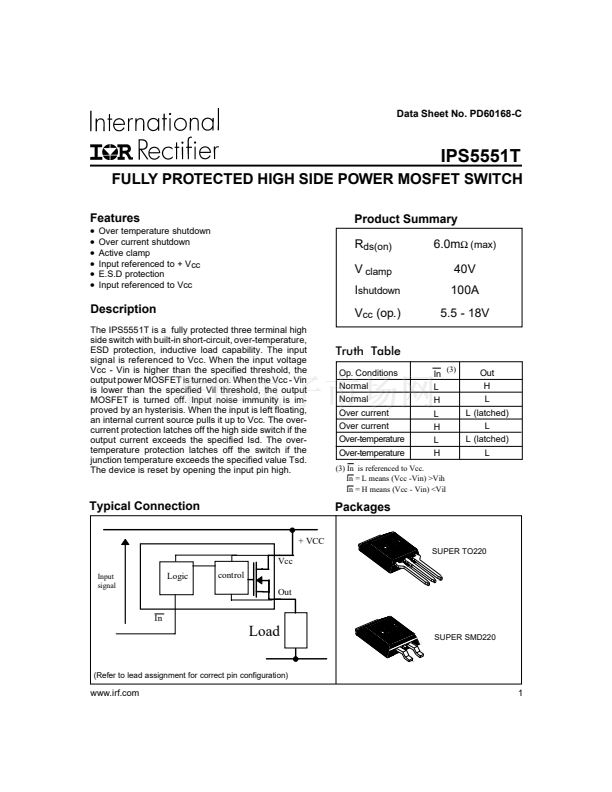

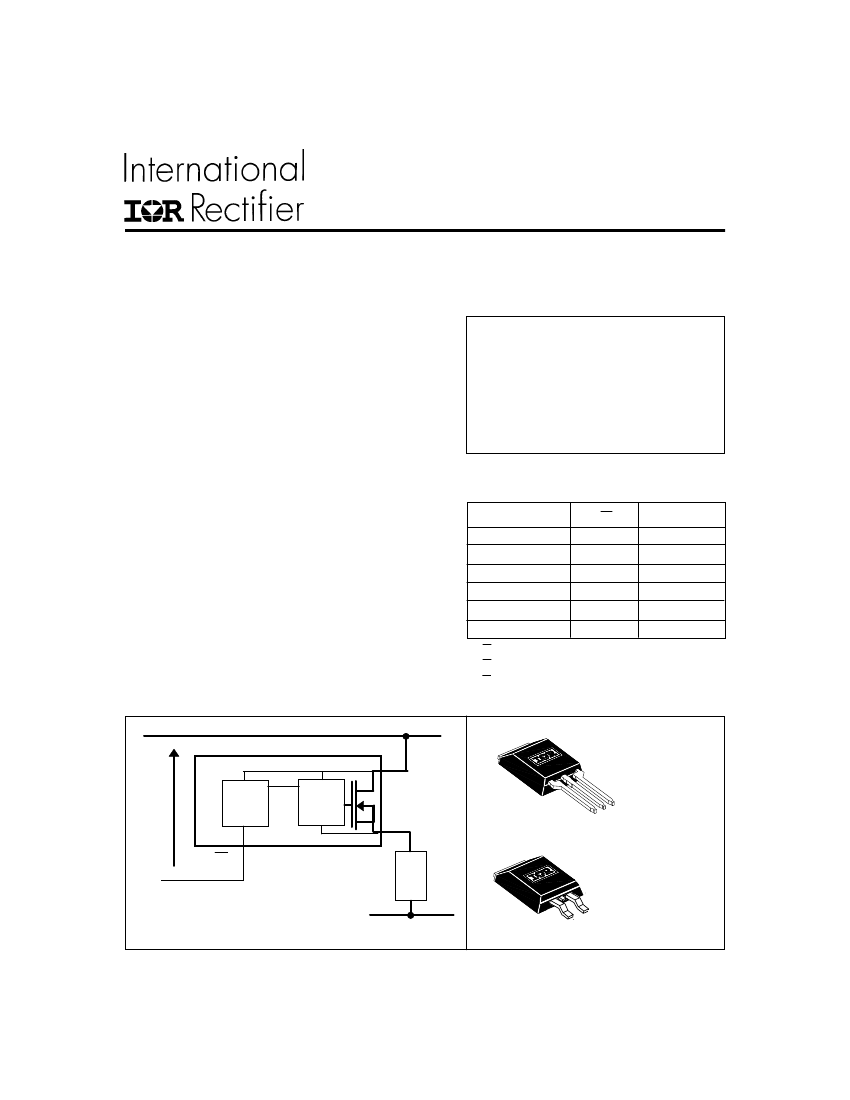

Data Sheet No. PD60168-C
IPS5551T
FULLY PROTECTED HIGH SIDE POWER MOSFET SWITCH
Features
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
Over temperature shutdown
Over current shutdown
Active clamp
Input referenced to + Vcc
E.S.D protection
Input referenced to Vcc
Product Summary
R
ds(on)
V
clamp
I
shutdown
V
cc
(op.)
Truth Table
Op. Conditions
Normal
Normal
Over current
Over current
Over-temperature
Over-temperature
In
L
H
L
H
L
H
(3)
6.0m
鈩?/div>
(max)
40V
100A
5.5 - 18V
Description
The IPS5551T is a fully protected three terminal high
side switch with built-in short-circuit, over-temperature,
ESD protection, inductive load capability. The input
signal is referenced to Vcc. When the input voltage
Vcc - Vin is higher than the specified threshold, the
output power MOSFET is turned on. When the Vcc - Vin
is lower than the specified Vil threshold, the output
MOSFET is turned off. Input noise immunity is im-
proved by an hysterisis. When the input is left floating,
an internal current source pulls it up to Vcc. The over-
current protection latches off the high side switch if the
output current exceeds the specified Isd. The over-
temperature protection latches off the switch if the
junction temperature exceeds the specified value Tsd.
The device is reset by opening the input pin high.
Out
H
L
L (latched)
L
L (latched)
L
(3) In is referenced to Vcc.
In = L means (Vcc -Vin) >Vih
In = H means (Vcc - Vin) <Vil
Typical Connection
+ VCC

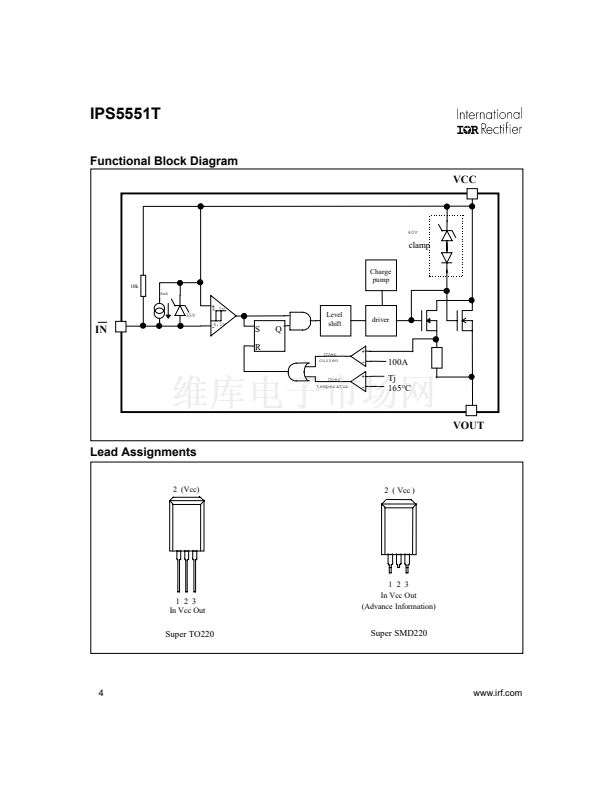

Packages
SUPER TO220
Vcc
Input
signal
Logic
control
Out
In
Load
(Refer to lead assignment for correct pin configuration)
SUPER SMD220
www.irf.com
1
