Data Sheet No.PD 60152-K

IPS041L

FULLY PROTECTED POWER MOSFET SWITCH

Features

鈥?/div>

Over temperature shutdown

Over current shutdown

Active clamp

Low current & logic level input

E.S.D protection

Product Summary

ds(on)

clamp

shutdown

off

500m

鈩?/div>

(max)

50V

1.5碌s

Description

The IPS041L is a fully protected three terminal SMART

POWER MOSFET that features over-current, over-

temperature, ESD protection and drain to source

active clamp.This device combines a HEXFET廬

POWER MOSFET and a gate driver. It offers full

protection and high reliability required in harsh envi-

ronments. The driver allows short switching times

and provides efficient protection by turning OFF the

power MOSFET when the temperature exceeds 165

or when the Drain current reaches 2A. The device

restarts once the input is cycled. The avalanche

capability is significantly enhanced by the active

clamp and covers most inductive load demagnetiza-

tions.

Package

3 Lead SOT223

Typical Connection

Load

R in series

(if needed)

control

Logic signal

(Refer to leads assignments for correct pin configuration)

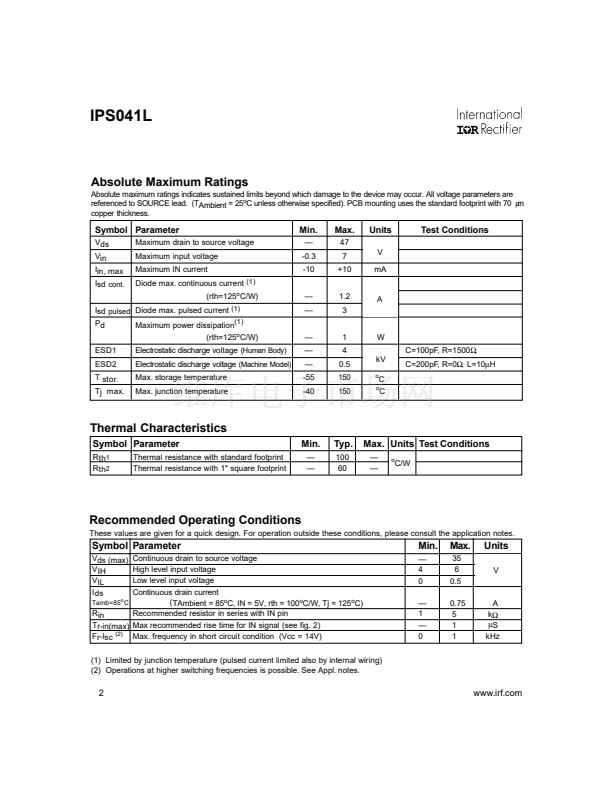

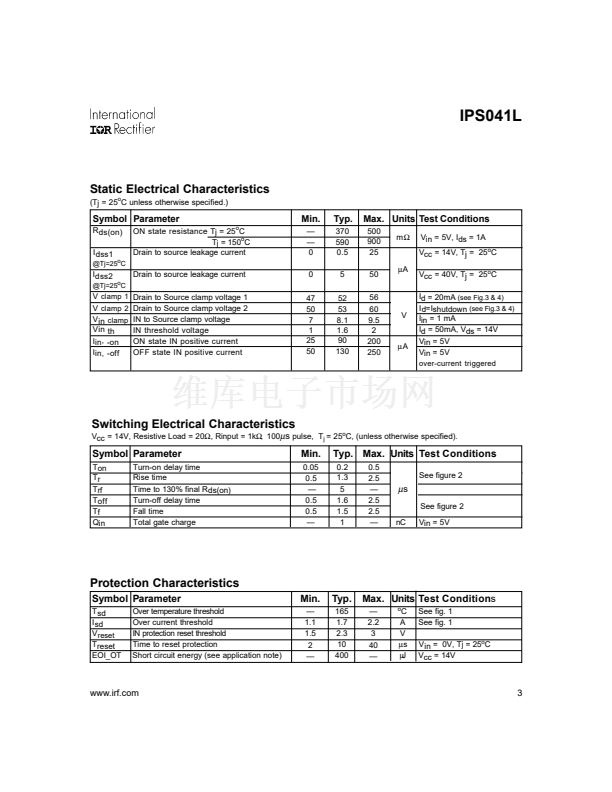

www.irf.com

標準包裝
80
類別
集成電路 (IC)
家庭
PMIC - MOSFET，電橋驅動器 - 內部開關
系列
-
類型
低端
輸入類型
非反相
輸出數
1
導通狀態電阻
370 毫歐
電流 - 輸出 / 通道
750mA
電流 - 峰值輸出
3A
電源電壓
4 V ~ 6 V
工作溫度
-40°C ~ 150°C
安裝類型
表面貼裝
封裝/外殼
TO-261-4，TO-261AA
供應商設備封裝
SOT-223
包裝
管件
其它名稱
*IPS041L
