IP101 Datasheet

  • IP101

  • PHY 10/100M Single Chip Fast Ethernet Transceiver

  • 33頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

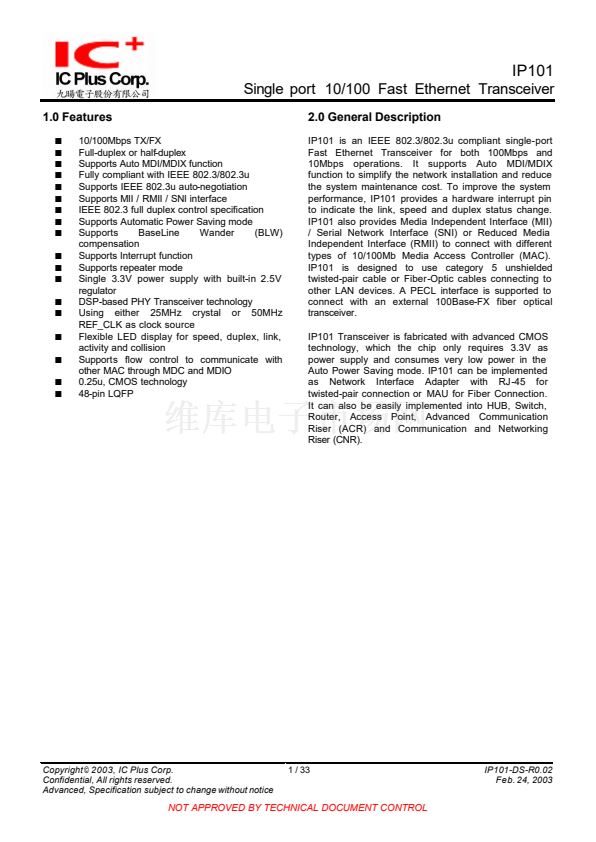

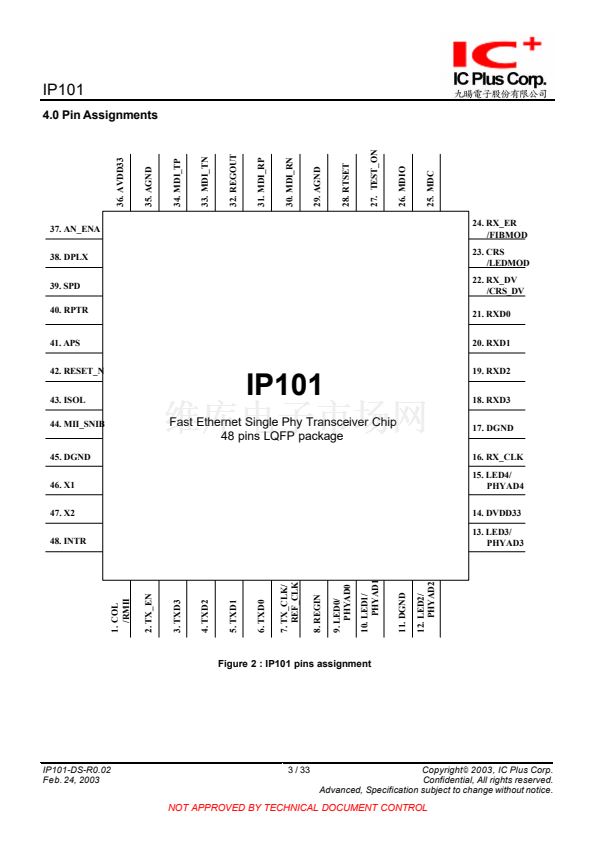

IP101
Single port 10/100 Fast Ethernet Transceiver
1.0 Features
壟
壟
壟
壟
壟
壟
壟
壟
壟
壟
壟
壟
壟
壟
壟
壟
壟
壟

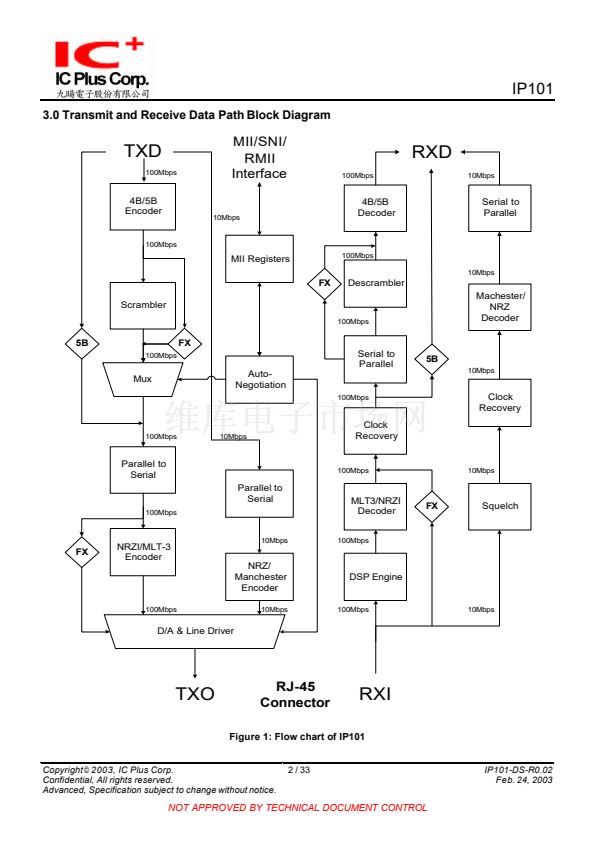

2.0 General Description
IP101 is an IEEE 802.3/802.3u compliant single-port
Fast Ethernet Transceiver for both 100Mbps and
10Mbps operations. It supports Auto MDI/MDIX
function to simplify the network installation and reduce
the system maintenance cost. To improve the system

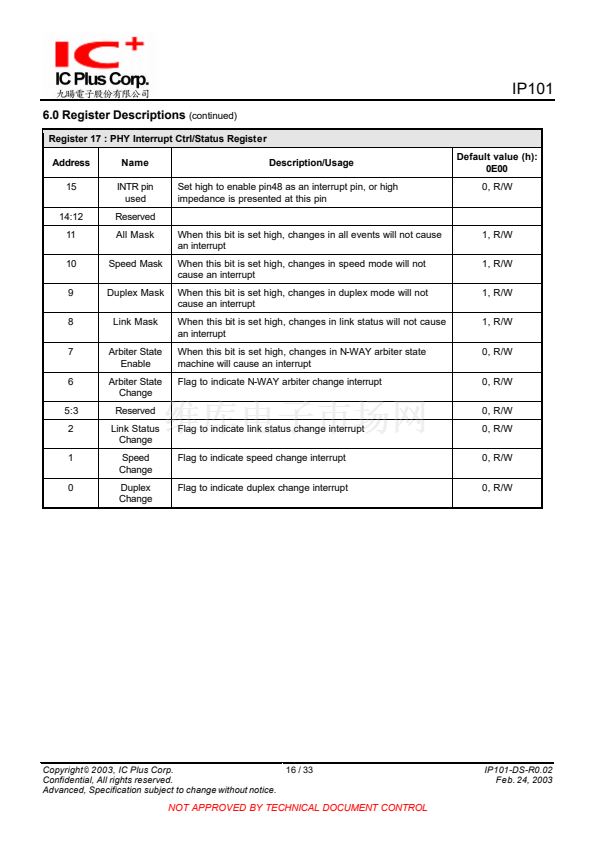

performance, IP101 provides a hardware interrupt pin
to indicate the link, speed and duplex status change.
IP101 also provides Media Independent Interface (MII)
/ Serial Network Interface (SNI) or Reduced Media
Independent Interface (RMII) to connect with different
types of 10/100Mb Media Access Controller (MAC).
IP101 is designed to use category 5 unshielded
twisted-pair cable or Fiber-Optic cables connecting to

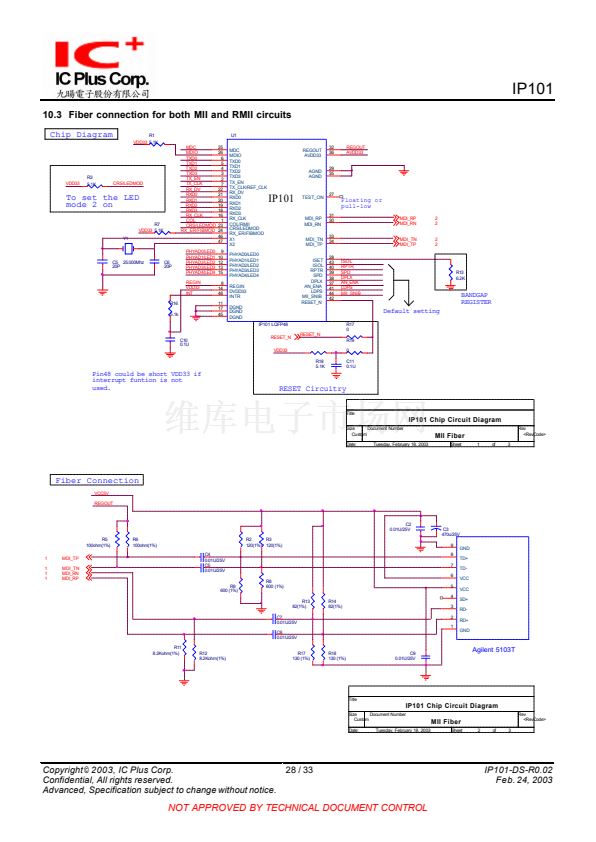

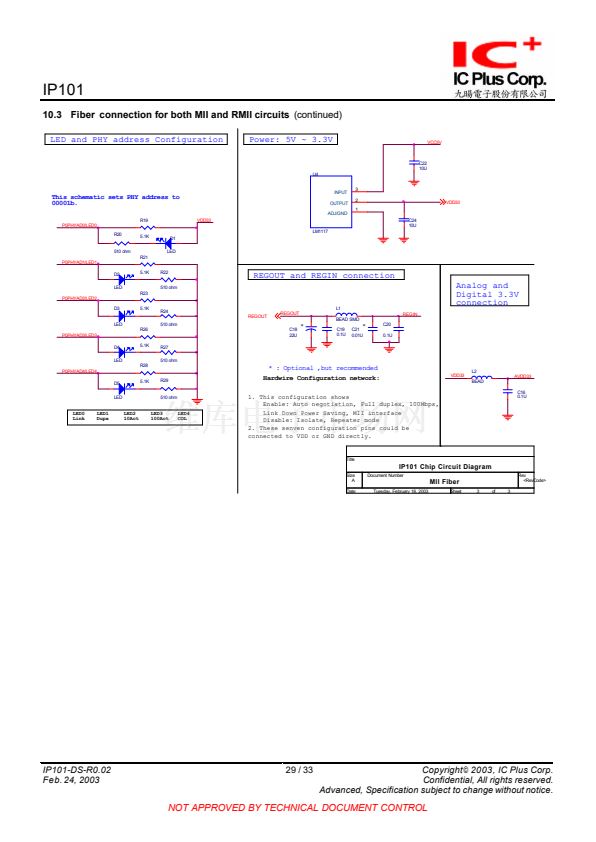

other LAN devices. A PECL interface is supported to
connect with an external 100Base-FX fiber optical
transceiver.
IP101 Transceiver is fabricated with advanced CMOS
technology, which the chip only requires 3.3V as
power supply and consumes very low power in the
Auto Power Saving mode. IP101 can be implemented
as Network Interface Adapter with RJ-45 for
twisted-pair connection or MAU for Fiber Connection.
It can also be easily implemented into HUB, Switch,
Router, Access Point, Advanced Communication
Riser (ACR) and Communication and Networking
Riser (CNR).
10/100Mbps TX/FX
Full-duplex or half-duplex
Supports Auto MDI/MDIX function
Fully compliant with IEEE 802.3/802.3u

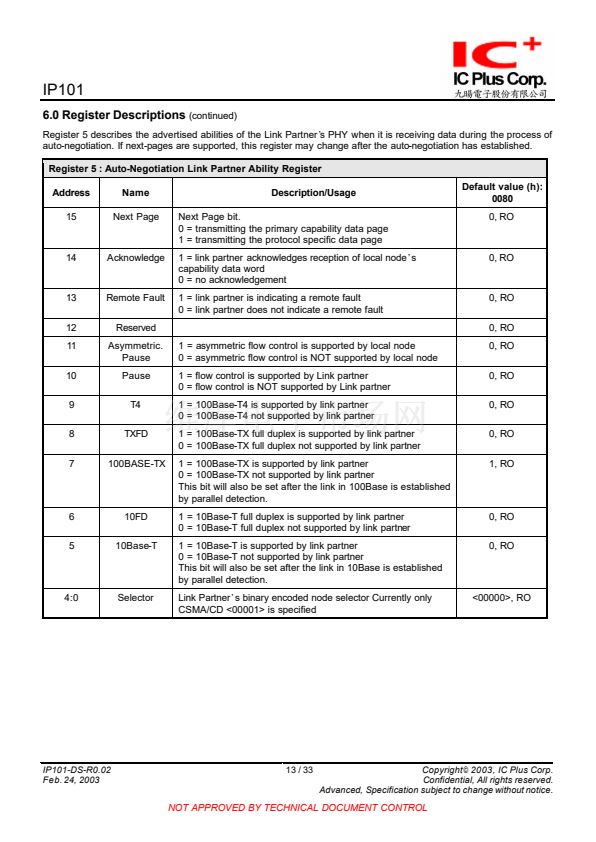

Supports IEEE 802.3u auto-negotiation

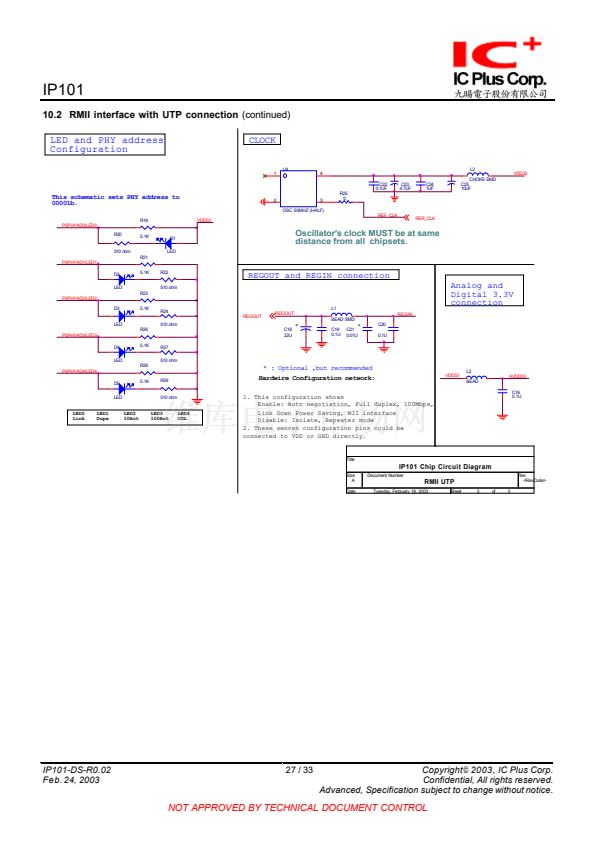

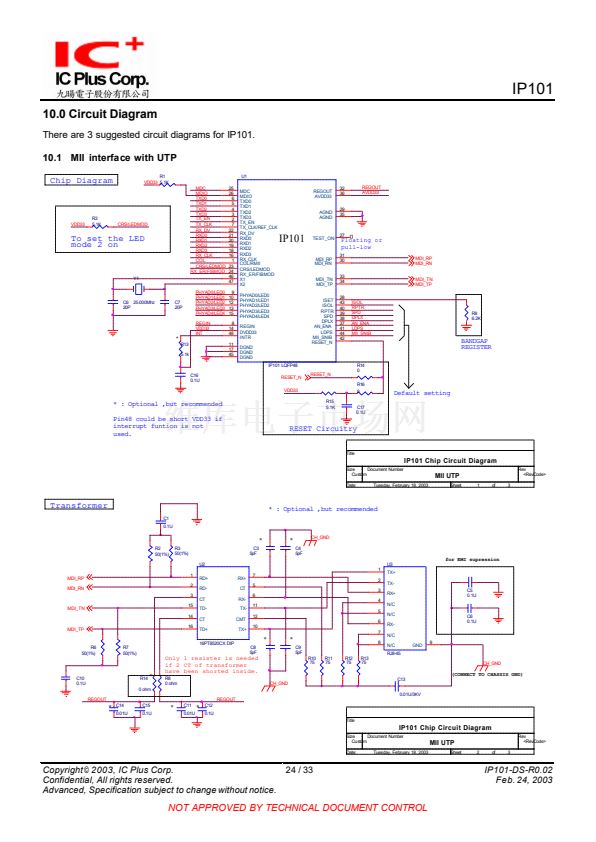

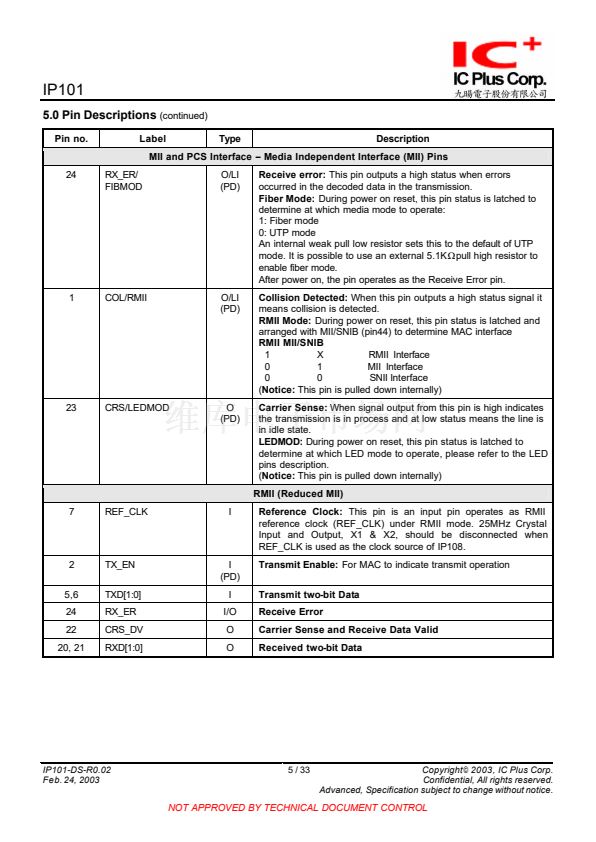

Supports MII / RMII / SNI interface
IEEE 802.3 full duplex control specification
Supports Automatic Power Saving mode
Supports
BaseLine
Wander
(BLW)
compensation
Supports Interrupt function
Supports repeater mode

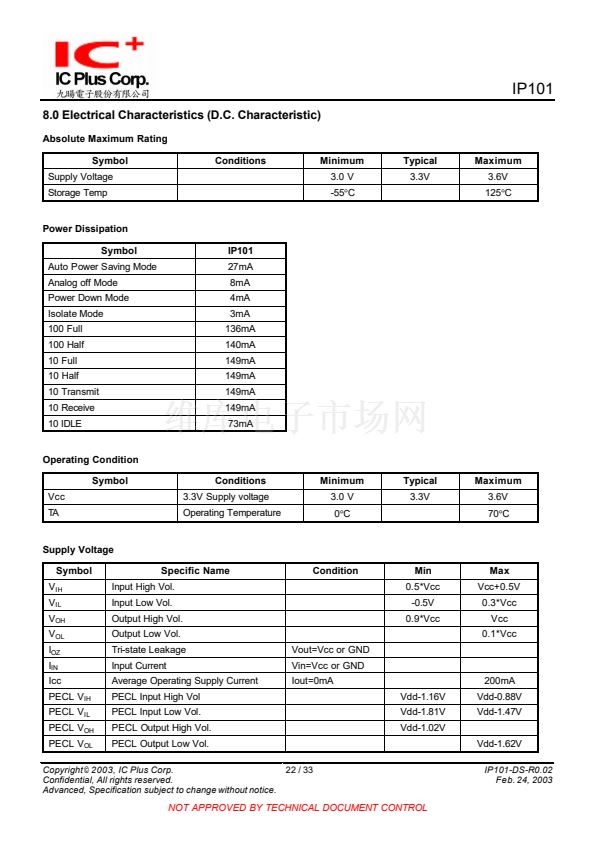

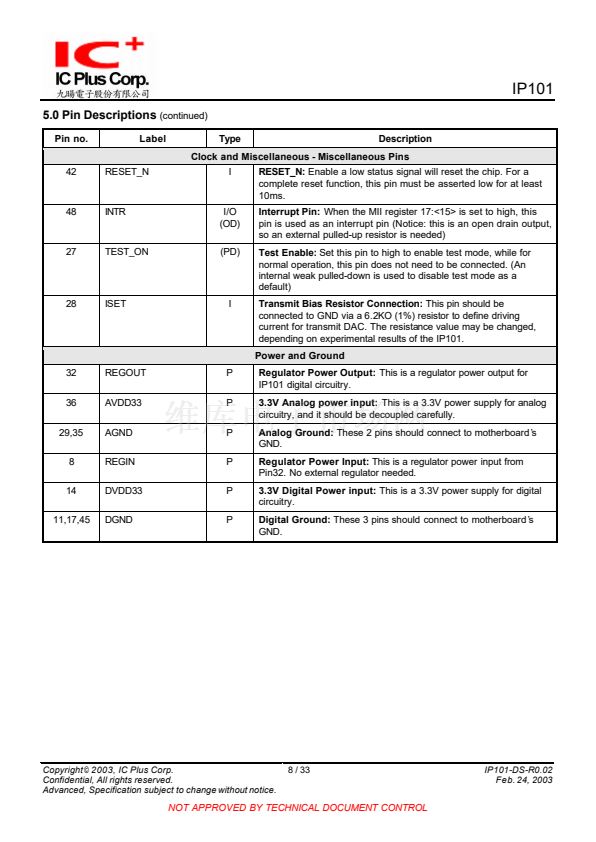

Single 3.3V power supply with built-in 2.5V
regulator
DSP-based PHY Transceiver technology
Using either 25MHz crystal or 50MHz
REF_CLK as clock source

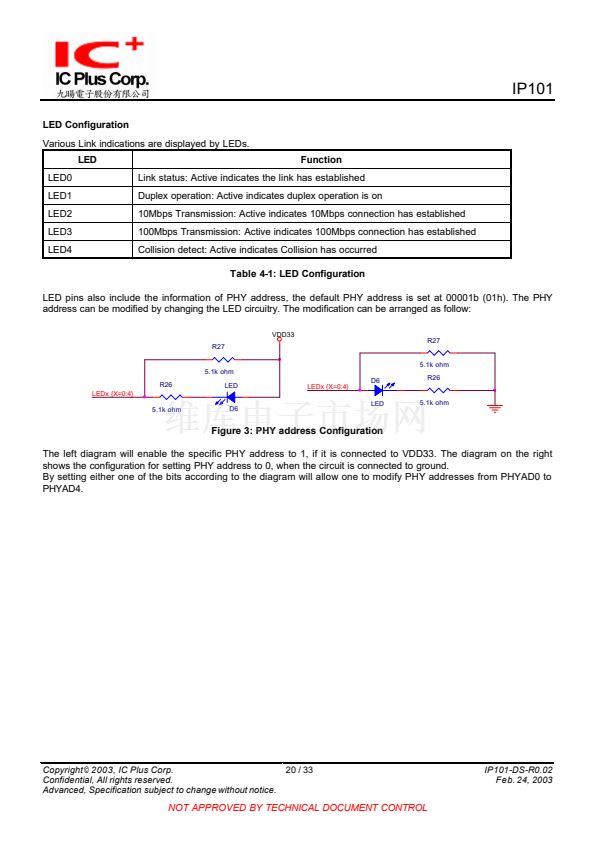

Flexible LED display for speed, duplex, link,
activity and collision

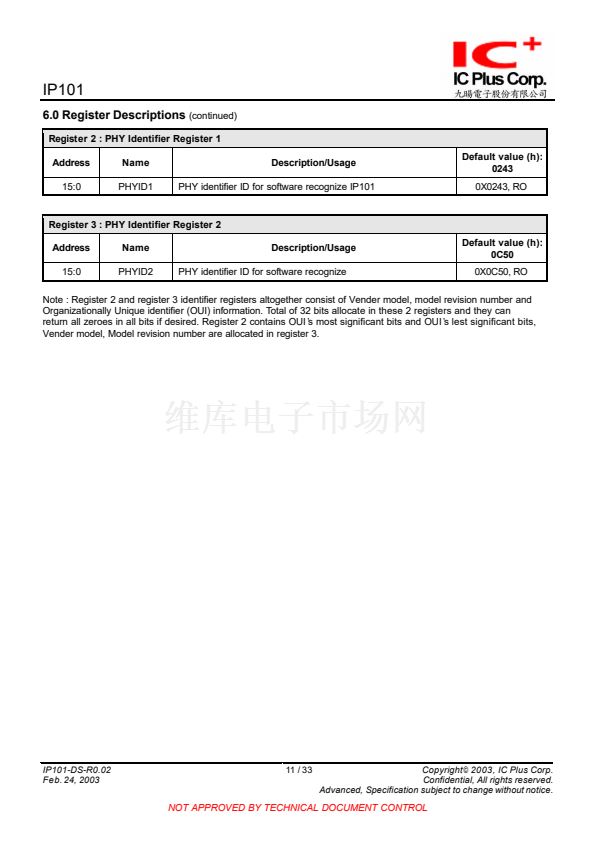

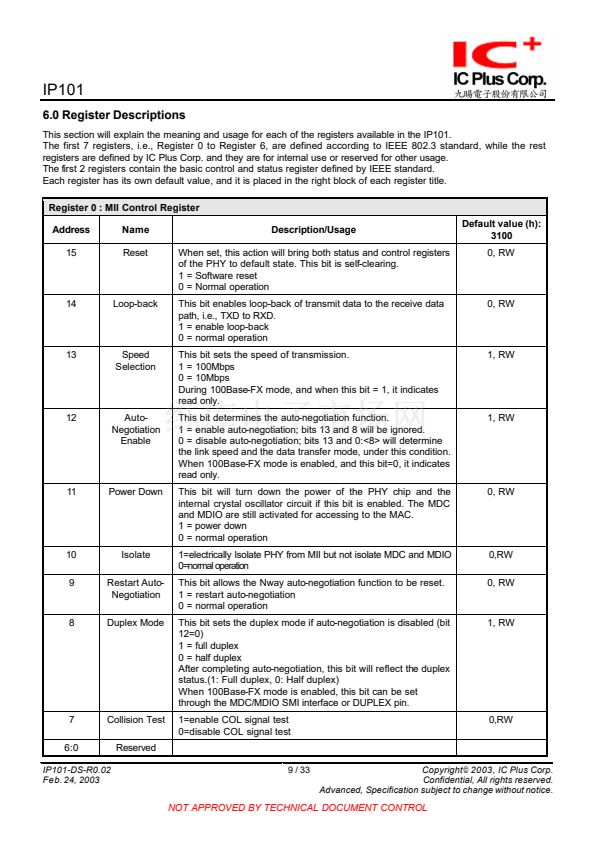

Supports flow control to communicate with
other MAC through MDC and MDIO
0.25u, CMOS technology

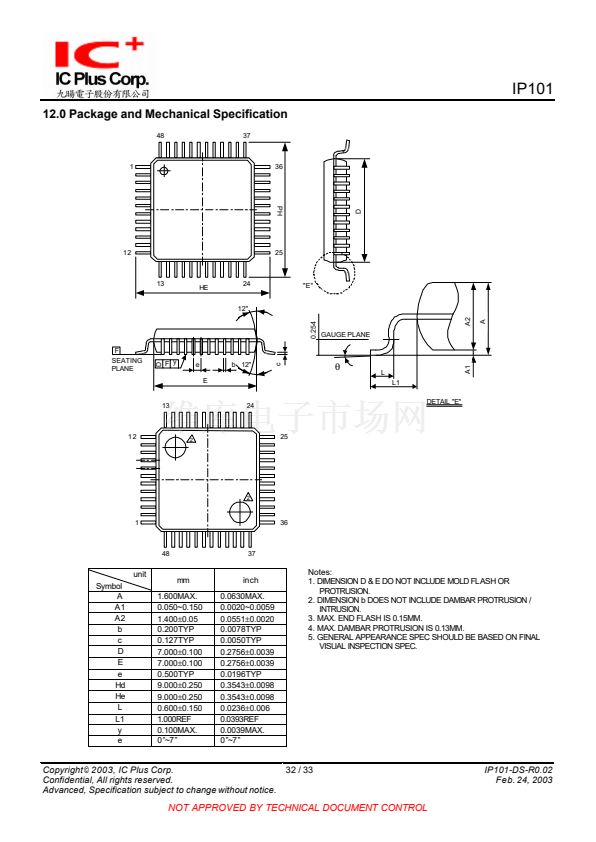

48-pin LQFP
Copyright 漏 2003, IC Plus Corp.
Confidential, All rights reserved.
Advanced, Specification subject to change without notice
1 / 33
IP101-DS-R0.02
Feb. 24, 2003
NOT APPROVED BY TECHNICAL DOCUMENT CONTROL
