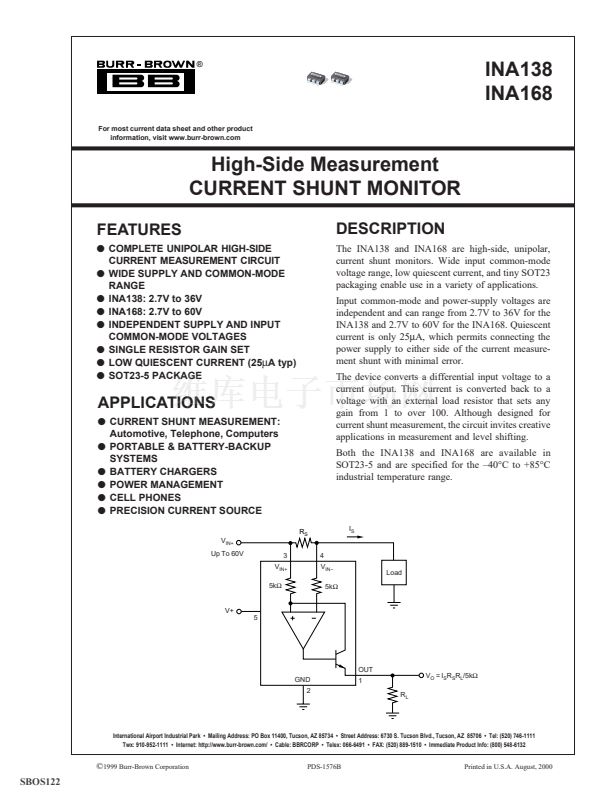

INA138
INA168
For most current data sheet and other product
information, visit www.burr-brown.com
High-Side Measurement
CURRENT SHUNT MONITOR
FEATURES
q
COMPLETE UNIPOLAR HIGH-SIDE
CURRENT MEASUREMENT CIRCUIT
q
WIDE SUPPLY AND COMMON-MODE
RANGE
q
INA138: 2.7V to 36V
q
INA168: 2.7V to 60V
q
INDEPENDENT SUPPLY AND INPUT
COMMON-MODE VOLTAGES
q
SINGLE RESISTOR GAIN SET
q
LOW QUIESCENT CURRENT (25
碌
A typ)
q
SOT23-5 PACKAGE
DESCRIPTION
The INA138 and INA168 are high-side, unipolar,
current shunt monitors. Wide input common-mode
voltage range, low quiescent current, and tiny SOT23
packaging enable use in a variety of applications.
Input common-mode and power-supply voltages are
independent and can range from 2.7V to 36V for the
INA138 and 2.7V to 60V for the INA168. Quiescent
current is only 25碌A(chǔ), which permits connecting the
power supply to either side of the current measure-
ment shunt with minimal error.
The device converts a differential input voltage to a
current output. This current is converted back to a
voltage with an external load resistor that sets any
gain from 1 to over 100. Although designed for
current shunt measurement, the circuit invites creative
applications in measurement and level shifting.
Both the INA138 and INA168 are available in
SOT23-5 and are specified for the 鈥?0擄C to +85擄C
industrial temperature range.
APPLICATIONS
q
CURRENT SHUNT MEASUREMENT:
Automotive, Telephone, Computers
q
PORTABLE & BATTERY-BACKUP
SYSTEMS
q
BATTERY CHARGERS
q
POWER MANAGEMENT
q
CELL PHONES
q
PRECISION CURRENT SOURCE
R
S
V
IN+
Up To 60V
3
V
IN+
5k鈩?/div>
4
V
IN鈥?/div>
I
S
Load
5k鈩?/div>
V+
5
OUT
GND
2
1
R
L
V
O
= I
S
R
S
R
L
/5k鈩?/div>
International Airport Industrial Park 鈥?Mailing Address: PO Box 11400, Tucson, AZ 85734 鈥?Street Address: 6730 S. Tucson Blvd., Tucson, AZ 85706 鈥?Tel: (520) 746-1111
Twx: 910-952-1111 鈥?Internet: http://www.burr-brown.com/ 鈥?Cable: BBRCORP 鈥?Telex: 066-6491 鈥?FAX: (520) 889-1510 鈥?Immediate Product Info: (800) 548-6132
漏
1999 Burr-Brown Corporation
PDS-1576B
Printed in U.S.A. August, 2000
SBOS122
