INA-34063 Datasheet

  • INA-34063

  • 3V Fixed Gain. Medium Power Amplifier

  • 11頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

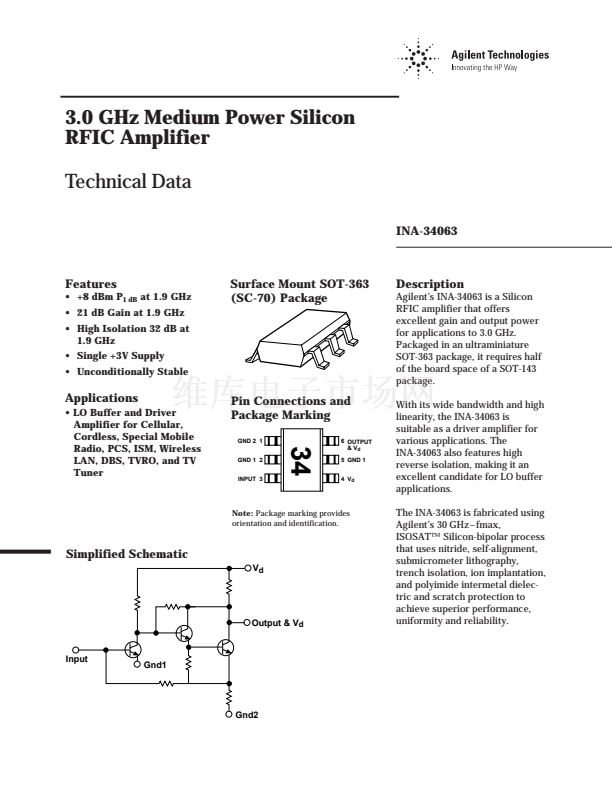

3.0 GHz Medium Power Silicon
RFIC Amplifier
Technical Data
INA-34063
Features
鈥?+8 dBm P
1 dB
at 1.9 GHz
鈥?21 dB Gain at 1.9 GHz
鈥?High Isolation 32 dB at
1.9 GHz
鈥?Single +3V Supply
鈥?Unconditionally Stable
Surface Mount SOT-363
(SC-70) Package
Description
Agilent鈥檚 INA-34063 is a Silicon
RFIC amplifier that offers
excellent gain and output power
for applications to 3.0 GHz.
Packaged in an ultraminiature
SOT-363 package, it requires half
of the board space of a SOT-143
package.
With its wide bandwidth and high
linearity, the INA-34063 is
suitable as a driver amplifier for
various applications. The
INA-34063 also features high
reverse isolation, making it an
excellent candidate for LO buffer
applications.
The INA-34063 is fabricated using
Agilent鈥檚 30 GHz 鈥?fmax,
ISOSAT鈩?Silicon-bipolar process
that uses nitride, self-alignment,
submicrometer lithography,
trench isolation, ion implantation,
and polyimide intermetal dielec-
tric and scratch protection to
achieve superior performance,
uniformity and reliability.
Applications
鈥?LO Buffer and Driver
Amplifier for Cellular,
Cordless, Special Mobile
Radio, PCS, ISM, Wireless
LAN, DBS, TVRO, and TV
Tuner
Pin Connections and
Package Marking
GND 2 1
6 OUTPUT
& V
d
5 GND 1
4 V
d
34
GND 1 2
INPUT 3
Note:
Package marking provides
orientation and identification.
Simplified Schematic
V
d
Output & V
d
Input
Gnd1
Gnd2
