INA-32063-BLK Datasheet

  • INA-32063-BLK

  • IC-WIDEBAND RF AMPLIFIER

  • 10頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

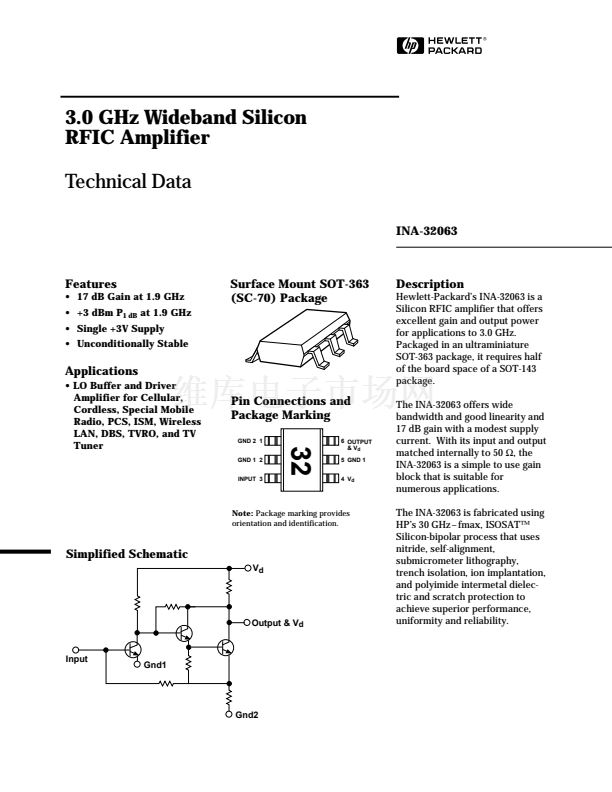

3.0 GHz Wideband Silicon
RFIC Amplifier
Technical Data
INA-32063
Features
鈥?17 dB Gain at 1.9 GHz
鈥?+3 dBm P
1 dB
at 1.9 GHz
鈥?Single +3V Supply
鈥?Unconditionally Stable
Surface Mount SOT-363
(SC-70) Package
Description
Hewlett-Packard鈥檚 INA-32063 is a
Silicon RFIC amplifier that offers
excellent gain and output power
for applications to 3.0 GHz.
Packaged in an ultraminiature
SOT-363 package, it requires half
of the board space of a SOT-143
package.
The INA-32063 offers wide
bandwidth and good linearity and
17 dB gain with a modest supply
current. With its input and output
matched internally to 50
鈩?
the
INA-32063 is a simple to use gain
block that is suitable for
numerous applications.
The INA-32063 is fabricated using
HP鈥檚 30 GHz 鈥?fmax, ISOSAT鈩?/div>
Silicon-bipolar process that uses
nitride, self-alignment,
submicrometer lithography,
trench isolation, ion implantation,
and polyimide intermetal dielec-
tric and scratch protection to
achieve superior performance,
uniformity and reliability.
Applications
鈥?LO Buffer and Driver
Amplifier for Cellular,
Cordless, Special Mobile
Radio, PCS, ISM, Wireless
LAN, DBS, TVRO, and TV
Tuner
Pin Connections and
Package Marking
GND 2 1
6 OUTPUT
& V
d
5 GND 1
4 V
d
32
GND 1 2
INPUT 3
Note:
Package marking provides
orientation and identification.
Simplified Schematic
V
d
Output & V
d
Input
Gnd1
Gnd2
